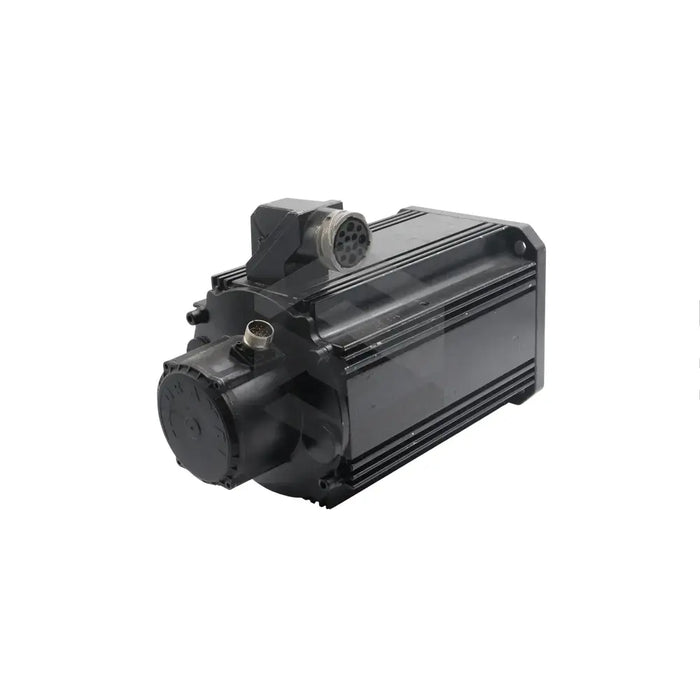

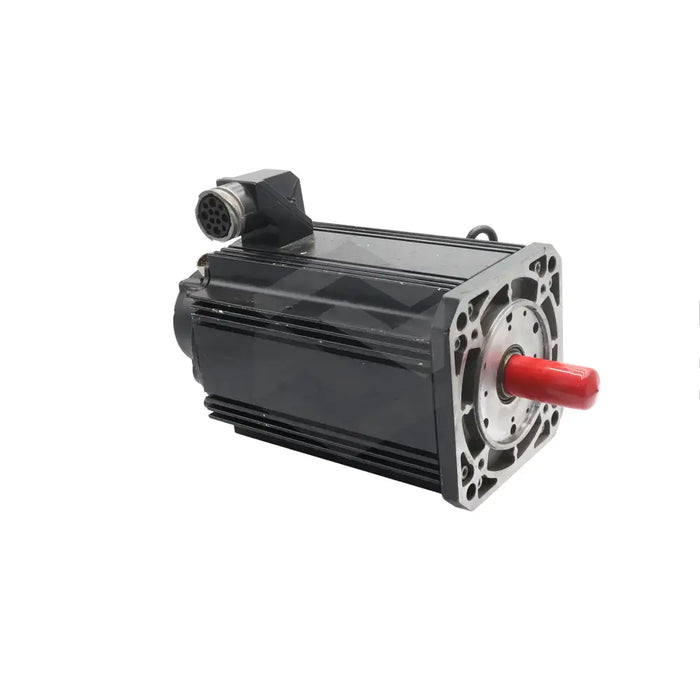

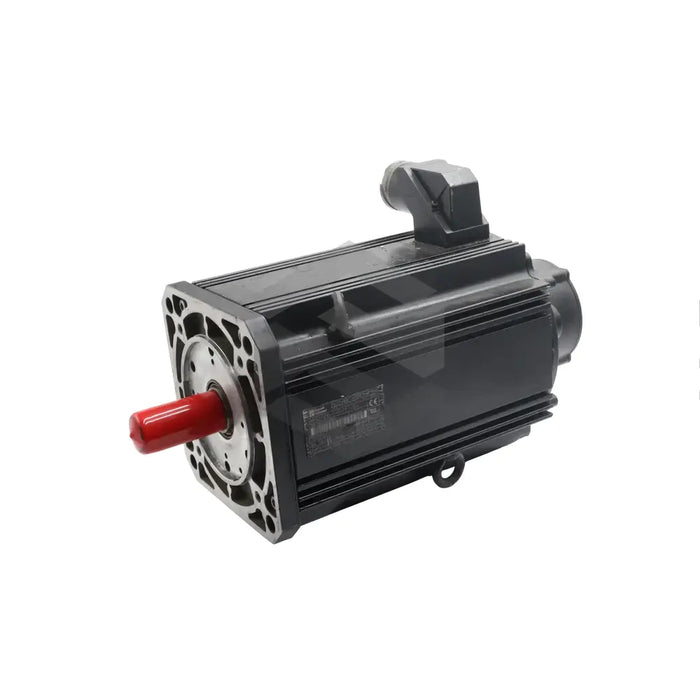

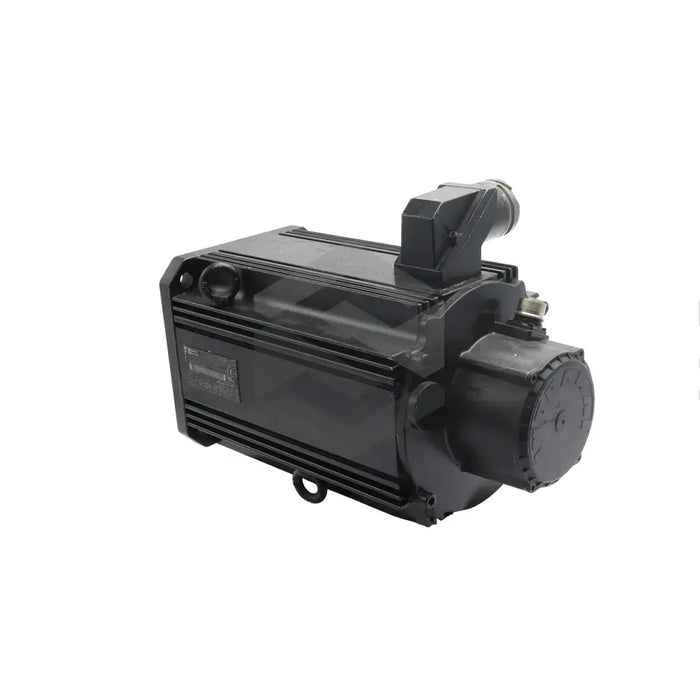

C image of MHD112B-058-NG0-RN | Main (Front Left)

MHD112B-058-NG0-RN

by Bosch Rexroth Indramat
$6,718.46 - $21,892.94
$6,718.46
$6,718.46 - $21,892.94
$6,718.46

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112B-058-NG0-RN is a synchronous motor, equipped with an integrated encoder system for digital servo feedback. Designed for use in industrial machinery, it features brushless design for maintenance-free operation, and grease-lubricated bearings for exceptional service lifespan. The motor has a flange size of 260mm, a centering diameter of 250mm, and incorporates four pole pairs. Notably, it has a low inertia mass due to the use of special magnet materials in its permanent magnets. With a maximum setup height of 1000m above sea level, the motor has an IP 65 degree of protection, is rated with a peak current of 183A and a maximum torque of 102Nm. It can be installed in any orientation, provided there is no fluid accumulation around the shaft for vertical installations. Encoder's data memory stores the motor type name and parameters along with the control loop parameters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD112B-058-NG0-RN Features

Hot housing surface, maintenance-free operation, brushless design, grease-lubricated bearings

Encoder System

Integrated for digital servo feedback

Installation instructions

Can be installed in any orientation, max setup height of 1,000m over sea level

Physical Specifications

Flange size of 260mm, centering diameter of 250mm for the shaft

Pole Pairs

Four

Usage

Primarily in machine tools

Magnet Materials

Special for low inertia mass

Product Handling

Subject to radial and axial forces on shaft and bearings during operation

Motor Type and Parameters

Stored in data memory of encoder

Length Code

B

Protection

IP 65 if power and encoder cables are mounted properly

Torque

Theoretical maximum of 102Nm

Current Rating

Peak of 183A

Shipping

Available to any country.
