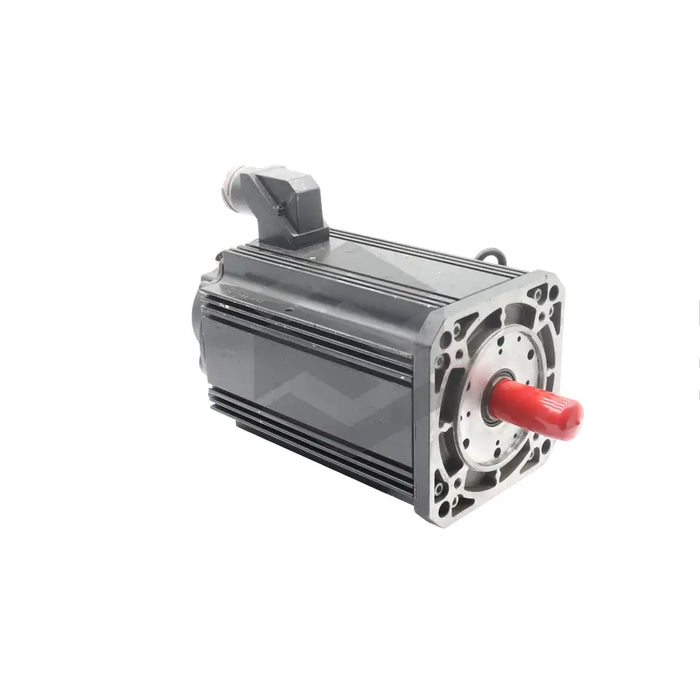

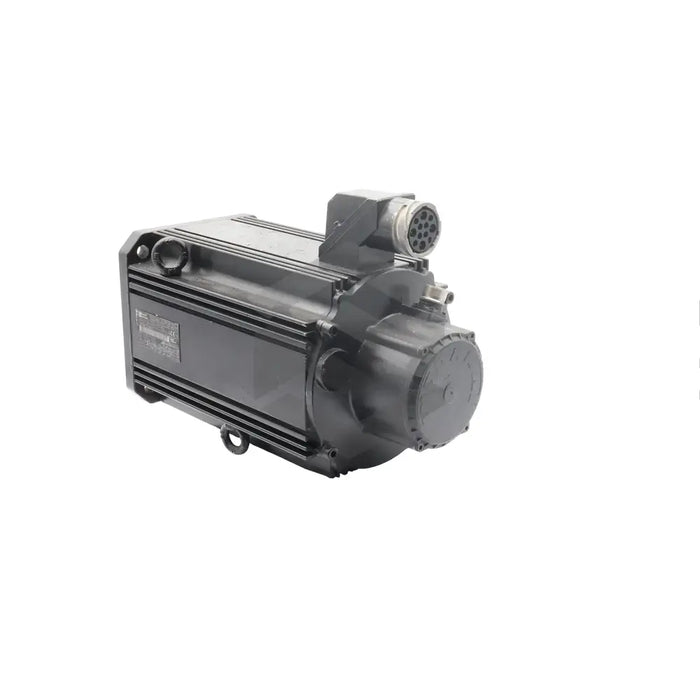

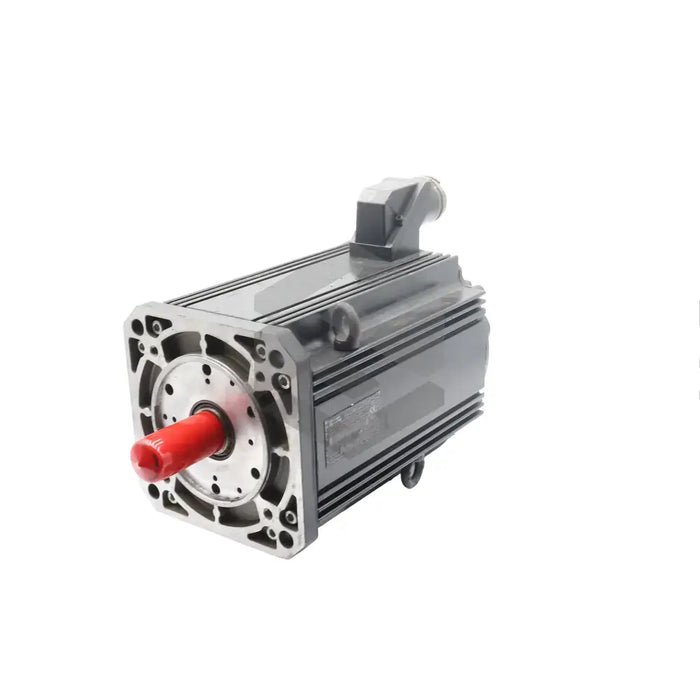

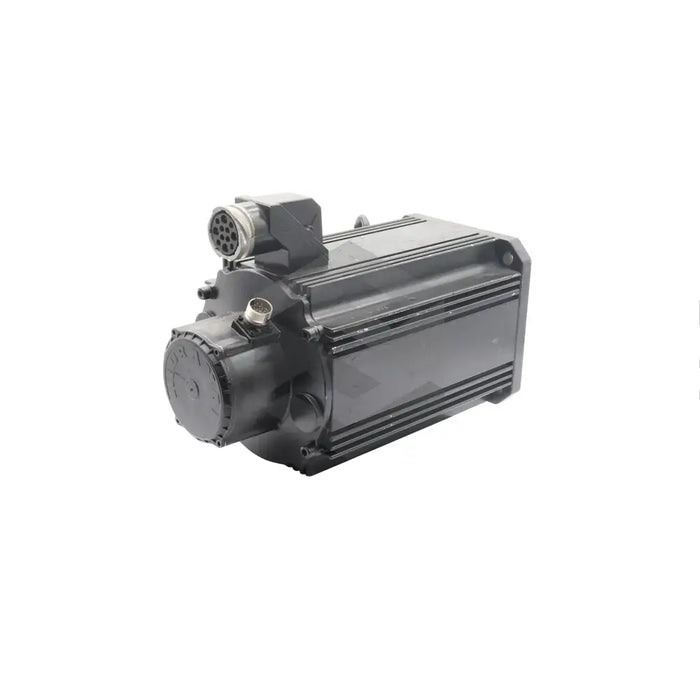

MHD112B-058-NP1-BN
The MHD112B-058-NP1-BN is a specially designed synchronous motor by Bosch Rexroth Indramat with a keyway shaft that adheres to DIN 6885-1 specifications. Its 3.2 kW power rating at 60K ensures robust performance with high dynamics. The device excels in its temperature monitoring capabilities, providing superior overload protection, and supports a high torque to inertia mass ratio. To ensure optimal performance and longevity, it should be stored and transported within a temperature range of -20°C and 80°C without tipping or dropping, and only lifted with cranes using sling belts. With a tightening torque of 87Nm, the flange requires 4 x M12 screws, and connections should only be made post-mechanical mounting per manufacturer guidelines. The product supports both horizontal and vertical installations. Its 89V/1000min-1 voltage constant, along with a 0.86 Ohms winding resistance and 0.98Nm/A torque constant provide reliability. Only cables from the manufacturer should be used for connection. Prior to installation, the holding brake's functionality should be checked thoroughly.
