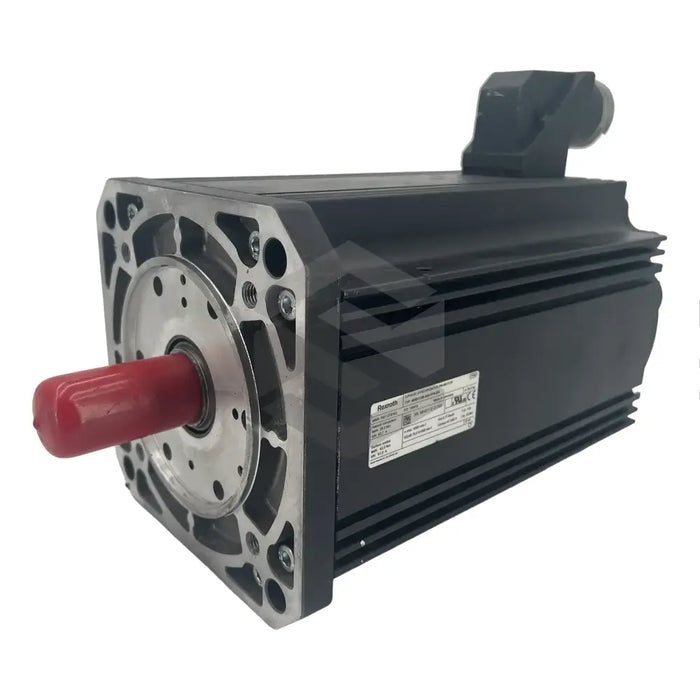

C image of MHD112B-058-PP0-BN | Main (Front Left)

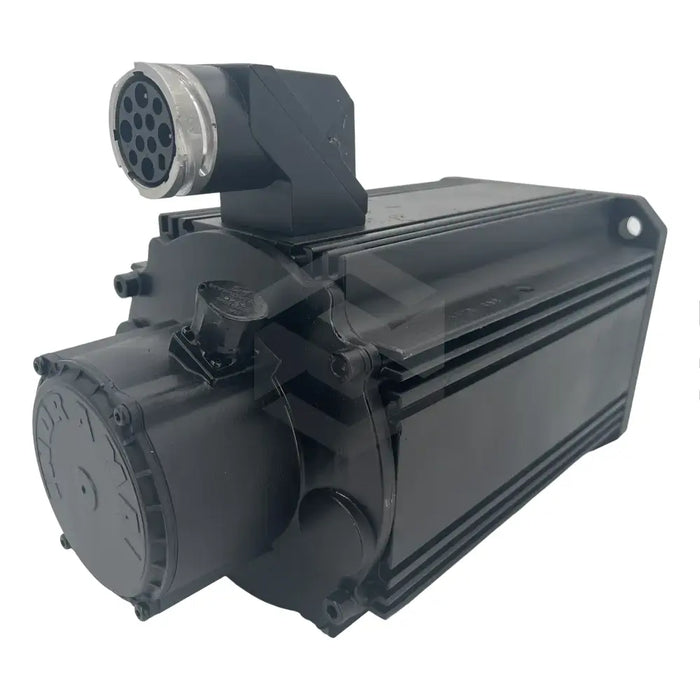

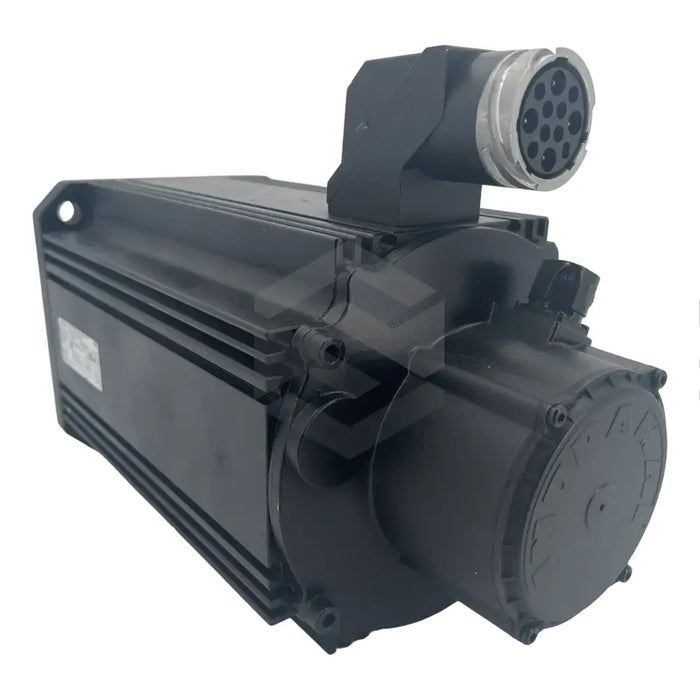

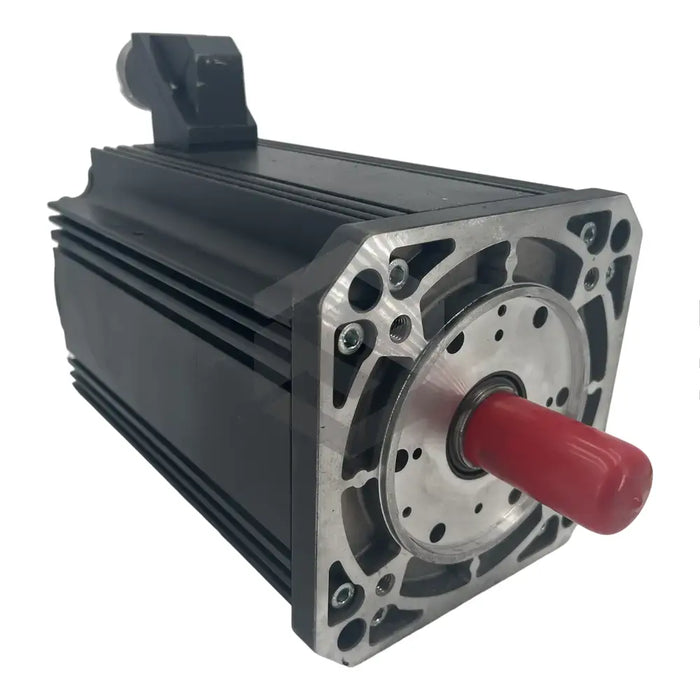

MHD112B-058-PP0-BN

by Bosch Rexroth Indramat
$5,101.41 - $16,704.22
$5,101.41
$5,101.41 - $16,704.22
$5,101.41

In Stock, Ships 1 - 3 Days

The MHD112B-058-PP0-BN is a synchronous motor produced by Bosch Rexroth Indramat, specialists in cost-effective industrial automation solutions. This model boasts the standard Rexroth design, including options for natural convection or surface cooling, depending on heat discharge requirements. The motor's dimensions encompass a 192mm flange size, 130mm centering diameter and a 'B' frame length, denoting a continuous torque production of 28Nm when stationary. It can also produce 102Nm of torque intermittently at a maximum current of 183A for 400ms. Characteristically, it operates at a speed of 4000min-1, potentially reaching 4500min-1. The rated current usage is 6.4A, up to 26.7A for surface cooled type, with a terminal voltage of 212V or 301V for surface cooling. The motor uses digital servo feedback with an integrated multiturn absolute encoder and is designed without a holding brake. The MHD112B-058-PP0-BN meets international standards, exemplifying the performance and reliability typical of the Rexroth brand.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

MHD112B-058-PP0-BN Synchronous Motor

Motor Design

Standard Rexroth

Cooling Type

Natural Convection or Surface Cooling

Flange Size

192mm

Centering Diameter

130mm

Frame Length

B

Continuous Torque at Standstill

28Nm

Maximum Torque

102Nm

Maximum Permissible Current

183A

Characteristic Speed

4000min-1

Maximum Speed

4500min-1

Rated Current

6.4A (up to 26.7A for the Surface Cooled Type)

Terminal Voltage

212V (or 301 for Surface Cooling Mode)

Motor Shaft Design

Keyway and Key according to DIN 6885-1

Holding Brake

None

Servo Feedback

Digital with Integrated Multiturn Absolute Encoder

Output Connectors Location

B-side

Standard Compliance

International Standards
