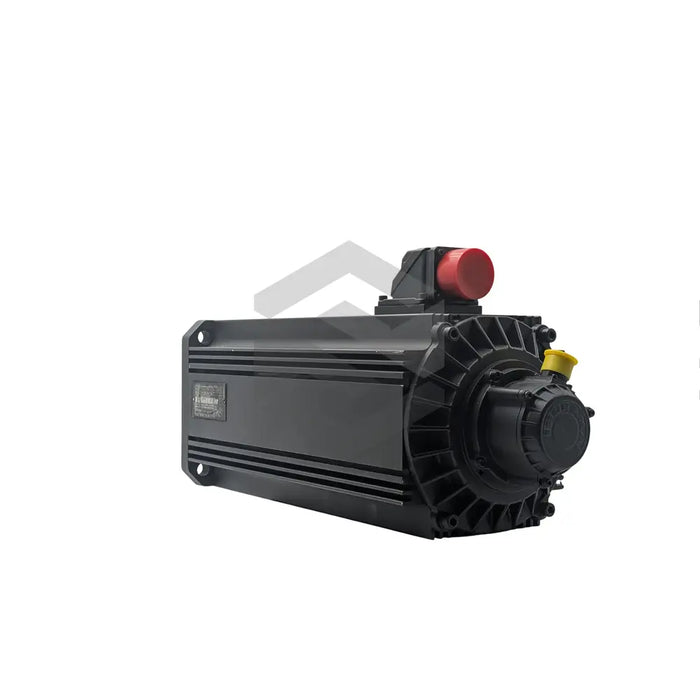

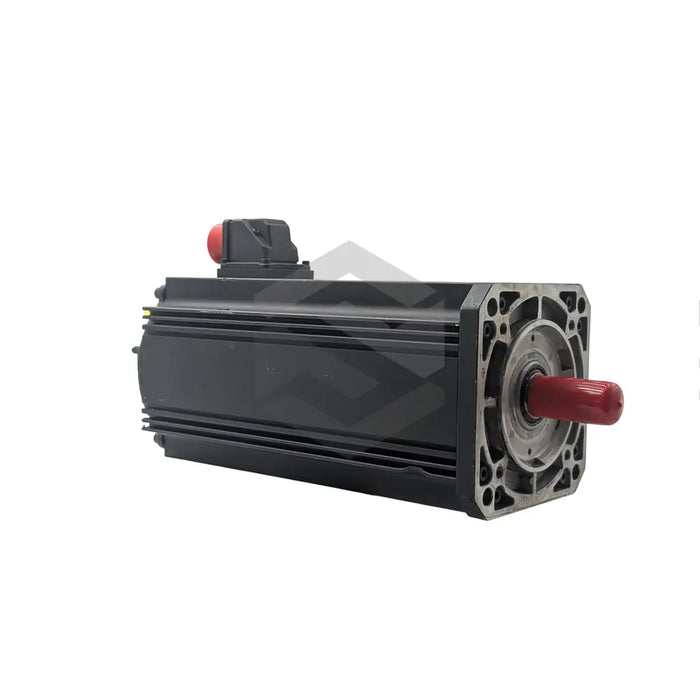

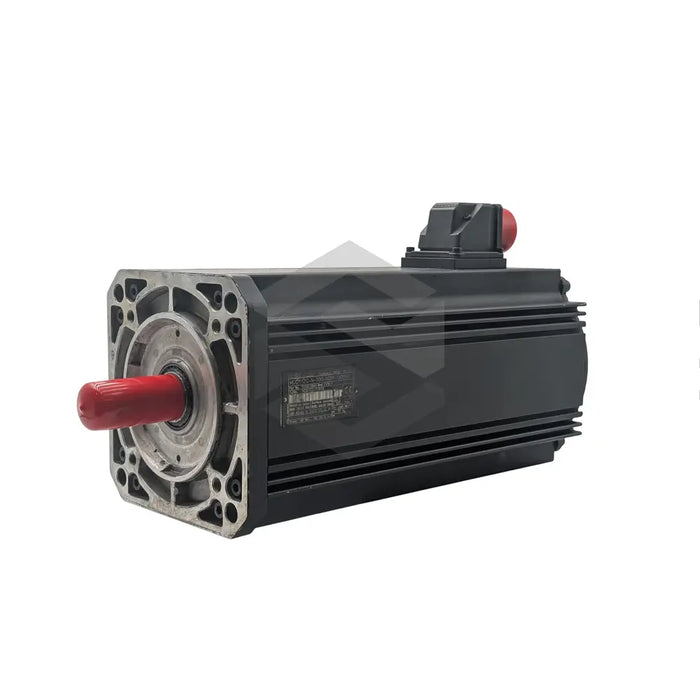

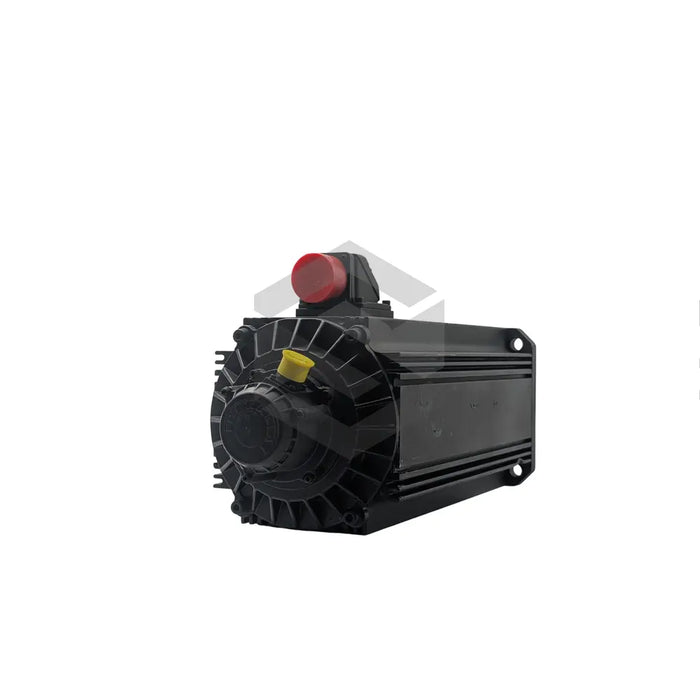

C image of MHD112C-024-NP0-AN | Main (Front Left)

MHD112C-024-NP0-AN

by Bosch Rexroth Indramat
$15,280.90 - $15,280.90
$15,280.90
$15,280.90 - $15,280.90
$15,280.90

In Stock, Ships 1 - 3 Days

The MHD112C-024-NP0-AN is a Bosch Rexroth Indramat-manufactured synchronous servo motor. Used for various industrial applications like machine tools and automation, this maintenance-free motor owes its durability to a brushless design and lifetime grease-lubricated bearings. It's adaptable to natural convection or surface cooling methods, offering a characteristic speed of 2000 RPM and a continuous torque at standstill of 38 Nm to 57 Nm depending on the cooling method. The motor operates at an ambient temperature of 0 to 45 degrees Celsius. A maximum altitude of 1000 meters is recommended. It features an IP65 rated housing with a complete seal against dust. The main motor shaft, which includes a key and sealing ring to protect bearings from contaminants, must be inspected periodically for wear. The flange size is 192mm, with the centering diameter at 130mm. This motor variant does not include a holding brake but it can be ordered separately if needed.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Servo Motor

Model Number

MHD112C-024-NP0-AN

Common Applications

Machine Tools, Packaging Machines, Automation, and Paper Machines

Maintenance Requirement

Maintenance-free (Brushless design, Grease lubricated bearings)

Cooling Methods

Natural Convection or Surface Cooling

Characteristic Motor Speed

2000 RPM

Continuous Torque at Standstill (Natural Convection)

38 Nm

Continuous Current at Standstill (Natural Convection)

26.6 Amps

Continuous Torque at Standstill (Surface Cooling)

57 Nm

Continuous Current at Standstill (Surface Cooling)

39.9 Amps

Rated Motor Speed

2500 RPM

Maximum Motor Speed

4000 RPM

Operating Ambient Temperature

0-45 Degrees Celsius

Maximum Setup Height

1000 Meters

Motor Housing Protection Standard

IP65 (Complete protection against dust ingress)

Flange Size

192mm

Centering Diameter

130mm

Mounting Method

Four Holes on Motor Flange

Power Connector Position

On Side A of Housing

Feedback Method

Digital Servo Feedback

Motor Shaft Features

Includes Key, Sealing Ring (Periodic Inspection/Replacement Required)

Holding Brake

Not Included (Available for Order Separately)
