MHD112C-024-PG0-RN

Original price $11,640.00 - Original price $11,640.00
Original price
$11,640.00
$11,640.00 - $11,640.00
Current price $11,640.00
In Stock, Ships Today
Request a quote

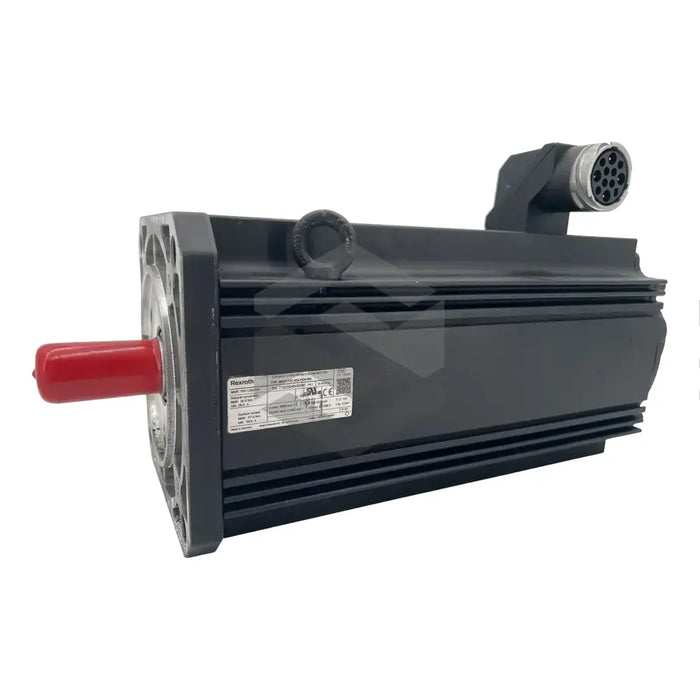

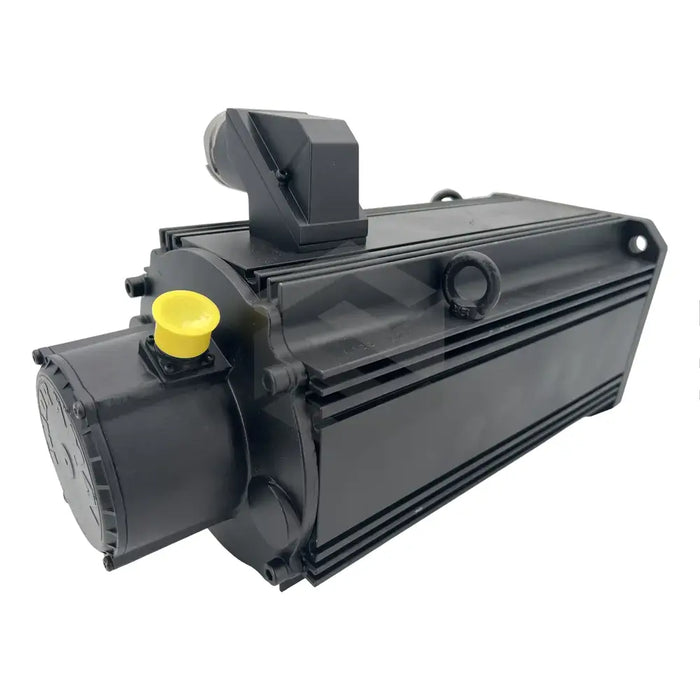

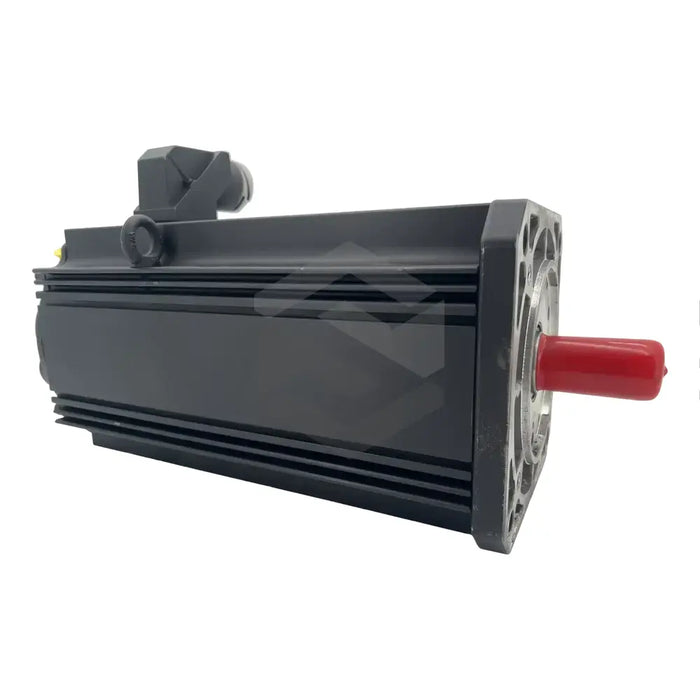

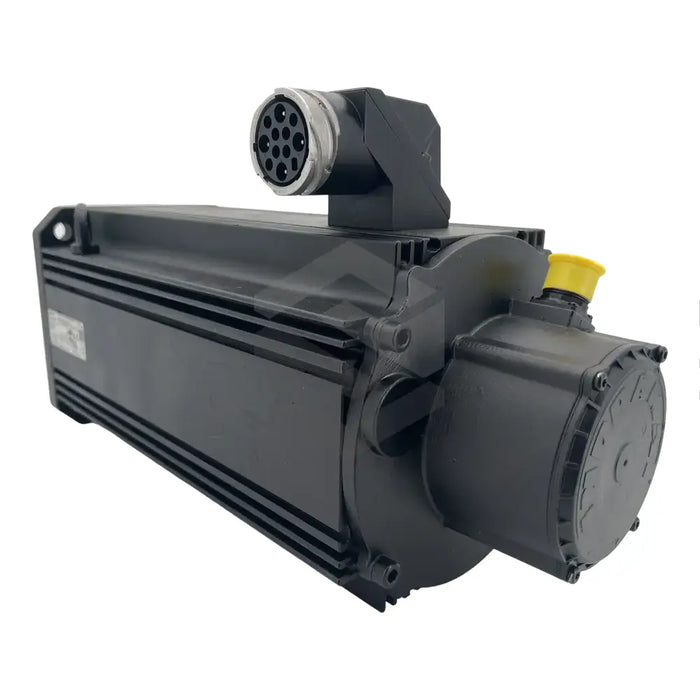

The MHD112C-024-PG0-RN by Bosch Rexroth Indramat is a permanent-magnet motor within the MHD synchronous series. Known for its low inertia masses due to unique magnet pieces, this motor offers high-performance data, strong dynamics, and substantial overload capabilities. It incorporates digital servo feedback with an integrated multiturn absolute encoder for absolute position detection but excludes a holding brake. The MHD112C-024-PG0-RN features a 192mm flange size, 130mm centering diameter, and a plain output shaft with a shaft sealing ring. The non-transmission of torque is secured through a backlash-free driven shaft. With its power connector located on the right, the motor housing is designed for natural convection and surface cooling. It bears an IP 65 protection degree, guarding against dust and low-pressure water jets. Storage or transit is safe at -20 to +80° C, while operational efficiency requires temperatures of 40° C or less.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MHD Synchronous Motor
  • MHD Series: MHD112
  • Characteristic Motor Speed: 2000 min-1
  • Winding Code: 024
  • Flange Size: 192 mm
  • Centering Diameter: 130 mm
  • Feedback Type: Digital Servo with Integrated Multiturn Absolute Encoder
  • Holding Brake: No
  • Output Shaft Type: Plain with Shaft Sealing Ring
  • Power Connector Direction: Right
  • Motor Housing Design: Suited for Natural Convection and Surface Cooling
  • Protection Degree: IP 65
  • Storage/Transit Temperature Range: -20 to +80° C
  • Operating Temperature: 40° C or less.
