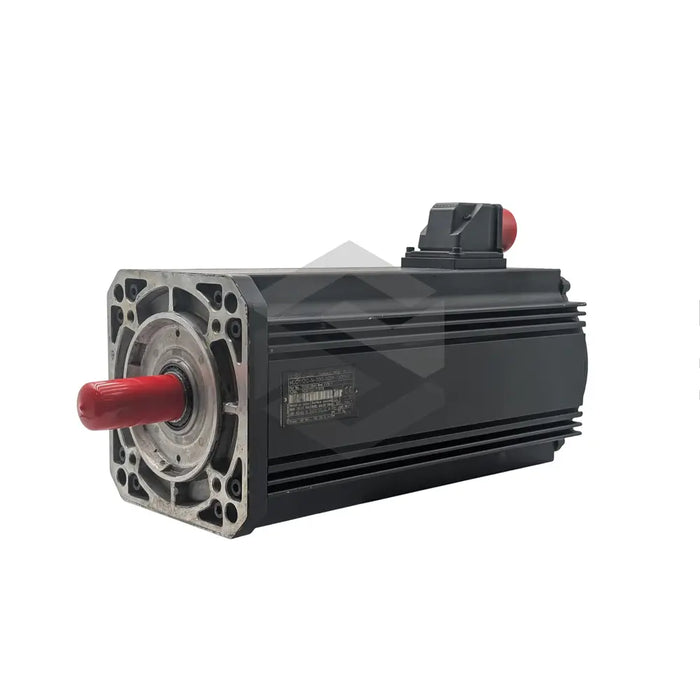

C image of MHD112C-035-NG3-BN | Main (Front Left)

MHD112C-035-NG3-BN

by Bosch Rexroth Indramat
$10,340.88 - $11,374.97
$10,340.88
$10,340.88 - $11,374.97
$10,340.88

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112C-035-NG3-BN is a synchronous servo motor featuring a 192mm motor flange with four 14mm holes. Mounted by screws through these holes, its centering diameter is 130mm. It boasts integrated digital servo feedback, thereby enabling optimal coordination between the motor and drive controller. This functionality facilitates precise control of parameters like speed and position. The motor can utilize either natural convection or surface cooling to manage heat. It produces continuous torque of 38Nm and 43.5Nm at 60K and 100K overtemperature, respectively, under natural convection. This value rises to 57Nm with surface cooling. The motor operates at a rated speed of 2500 RPM and can reach up to 4000 RPM. Its main shaft is plain, includes a sealing ring, and hosts a power connector on side B. If using the holding brake, the motor achieves 70Nm holding torque. Operational ambient conditions range from 0 to 40 degrees Celsius and up to 3300 feet of altitude.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

MHD112C-035-NG3-BN

Product Type

Synchronous Servo Motor

Mounting Style

Motor Flange with Four 14 Millimeter Holes

Flange Size

192 Millimeter

Centering Diameter

130 Millimeters

Feedback

Integrated Digital Servo Feedback

Cooling Method

Natural Convection or Surface Cooling

Continuous Torque at 60K Overtemperature

38 Nm

Continuous Current at 60K Overtemperature

31 Amps

Continuous Torque at 100K Overtemperature

43.5 Nm

Continuous Current at 100K Overtemperature

38.1 Amps

Peak Motor Current

139.5 Amps

Maximum Theoretical Motor Torque

148 Nm

Rated Speed

2500 RPM

Maximum Speed

4000 RPM

Recommended Ambient Conditions

0 to 40 Degrees Celsius Temperature, 0 to 3300 Feet Altitude

Motor Shaft

Plain with Sealing Ring

Motor Power Connector

On Side B

Holding Brake Specifications

70 Nm Holding Torque, 24 Volts Rated Voltage, 1.29 Amps Rated Current, 53 Milliseconds Connection Time, 97 Milliseconds Disconnection Time

Mass of Motor Holding Brake

3.8 Kilograms
