series image of MHD112C-035-NG3-LN

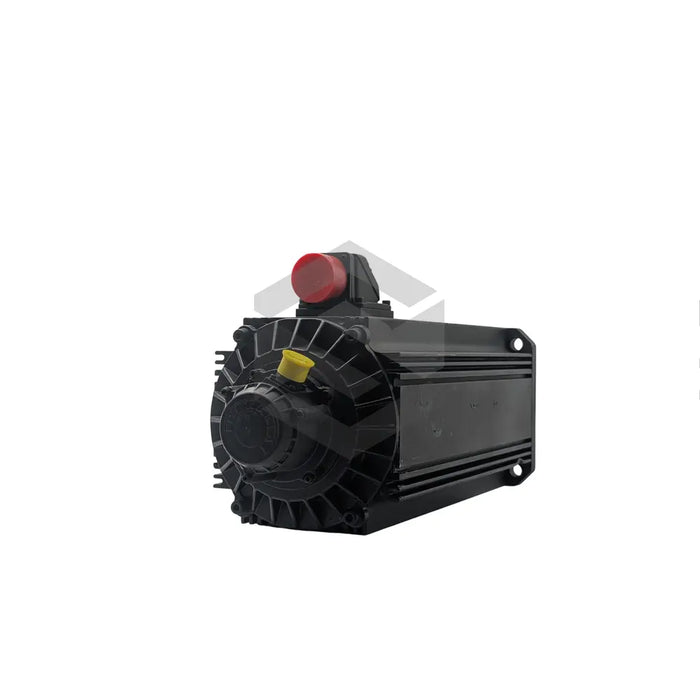

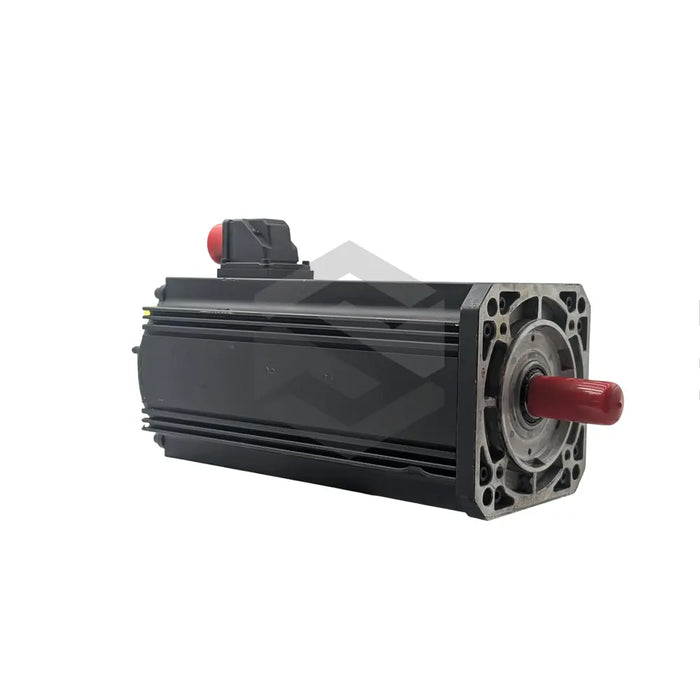

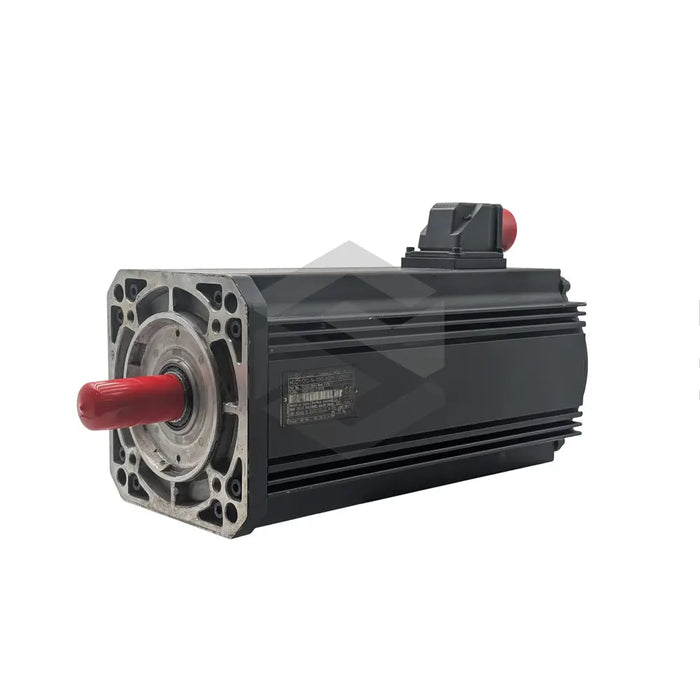

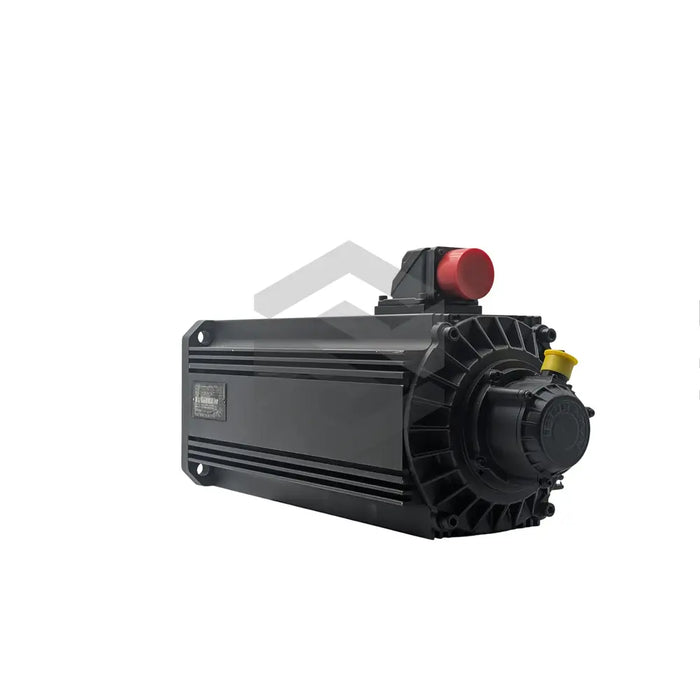

MHD112C-035-NG3-LN

by Bosch Rexroth Indramat
$3,691.93 - $3,691.93
$3,691.93
$3,691.93 - $3,691.93
$3,691.93
Available, Shipping Varies
The MHD112C-035-NG3-LN is a digital servo motor created by Bosch Rexroth Indramat, renowned for their highly reliable and maintenance-free performance. This motor is part of the MHD product line that features overload protection, effortless cabling, and straightforward startup. At its core, it is a permanent-magnet motor with electronic commutation comprising a shaft, stator, bearings, encoder and other components. This specific model includes a 70 Nm holding brake that ensures the shaft is stationary until a 24V DC signal is released. It provides digital servo feedback through a separate feedback cable. The motor's housing supports natural convection and surface cooling. This flange-mounted motor can achieve 2500 RPM, provide 15.8 Nm of torque, and needs 303 Volts to function optimally. The MHD112C-035-NG3-LN has an IP65 rated sealed housing and can generate a theoretical maximum of 148 Nm torque.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MHD
  • Product Model: MHD112C-035-NG3-LN
  • Motor Type: Digital Servo Motor
  • Main Shaft Type: Plain with a sealing ring
  • Holding Brake: 70 Nm
  • Brake Release Signal: 24 Volts DC
  • Power Cable Connection: Left side of the motor housing
  • Feedback Type: Digital servo feedback
  • Cooling: Natural convection or surface cooling
  • Mounting Type: Flange
  • Flange Size: 192 millimeters
  • Rated Motor Speed (Natural Convection at 60K overtemperature): 2500 RPM
  • Rated Torque: 15.8 Nm
  • Rated Current: 9.1 Amps
  • Rated Power Output: .7 kilowatts
  • Rated Voltage: 303 Volts
  • Rated Frequency: 167 Hertz
  • Motor Rotor's Moment of Inertia: 0.0273 kg m2
  • Maximum Theoretical Torque: 148 Nm
  • Motor Housing: Sealed (IP65 rated)
  • Motor Housing Surface: Matte black (RAL 9005)
