series image of MHD112C-035-NP0-BN

MHD112C-035-NP0-BN

by Bosch Rexroth Indramat
$17,232.35 - $17,232.35
$17,232.35
$17,232.35 - $17,232.35
$17,232.35
Available, Shipping Varies

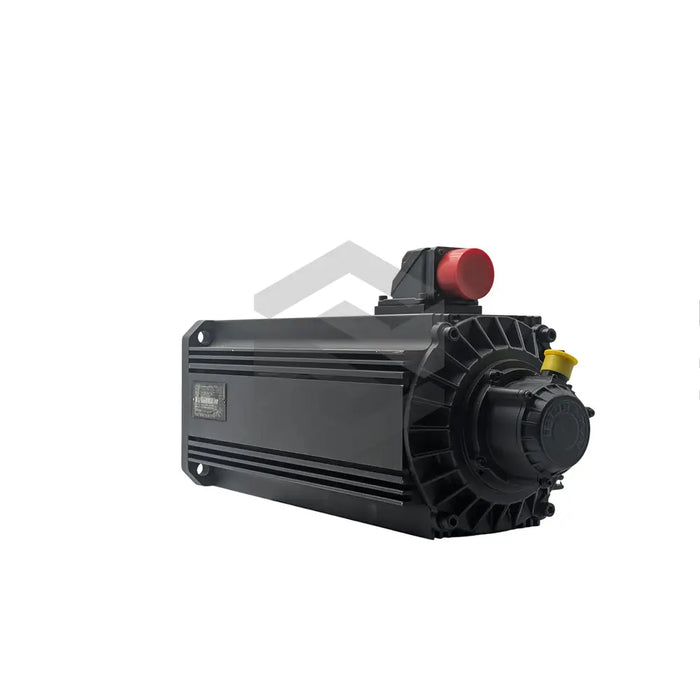

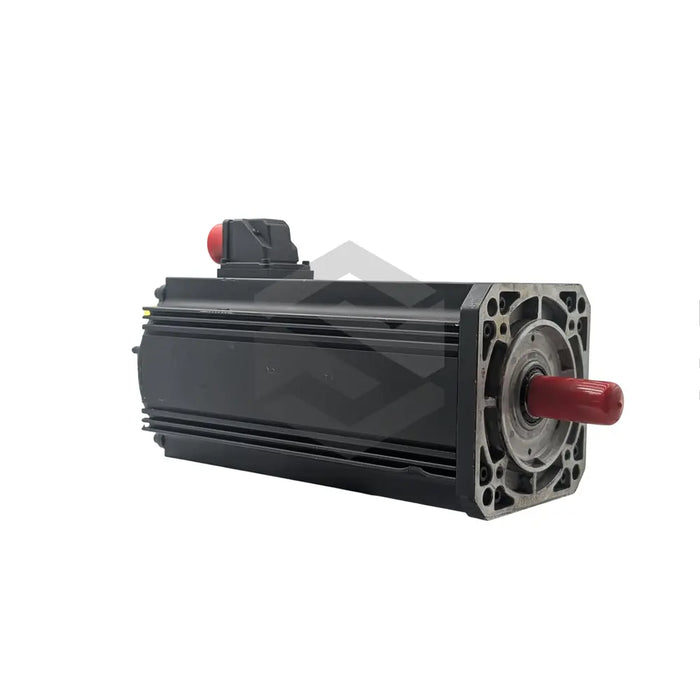

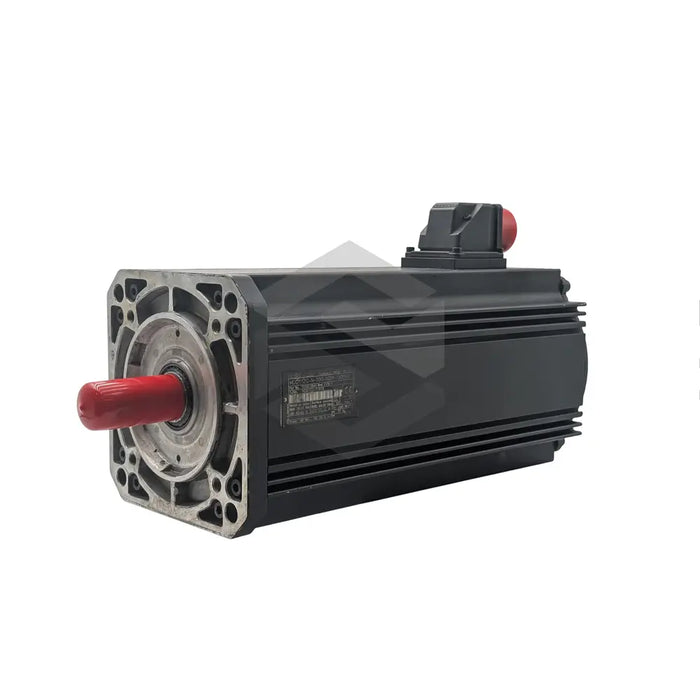

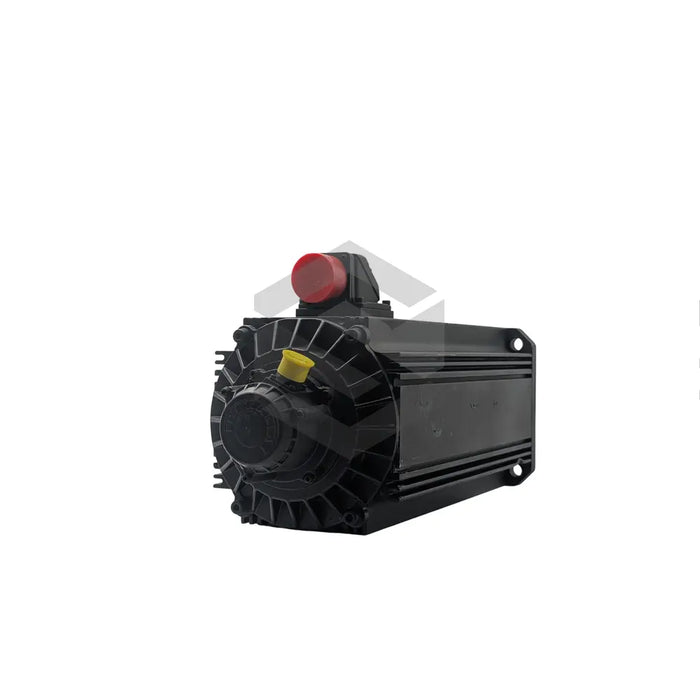

The MHD112C-035-NP0-BN, created by Bosch Rexroth Indramat, part of the MHD series, is a high-performing, low-maintenance, brushless servo motor. It's engineered for industrial uses, such as in packaging machines, food, machine tools, and automation. The bearings are grease-lubricated for life and it has an IP65 protection, allowing usage in harsh environments. This motor possesses a high overload capacity due to excellent heat dissipation from the stator, and delivers peak torque across a wide speed range with electronic commutation. Also, its torque to inertia mass ratio contributes to its dynamic function. The rated speed is 2500 RPM and cooling happens via surface cooling or natural convection. Useful features include an integrated digital servo feedback, and a motor shaft with a key and sealing ring. The flange size is 192mm which allows simple motor mounting. The motor information is recorded in the encoder memory and the type label.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MHD112C-035-NP0-BN
  • Product Line: MHD
  • Maintenance: Maintenance-Free
  • Motor Type: Brushless
  • Bearing Lubrication: Grease-Lubricated
  • Protection Rating: IP65
  • Temperature Monitoring: Present
  • Torque to Inertia Mass Ratio: High
  • Heat Dissipation: High
  • Overload Capability: High
  • Commutation Type: Electronic
  • Start-Stop Operation: Continuous
  • Rated Speed: 2500 RPM
  • Cooling Method: Surface Cooling or Natural Convection
  • Servo Feedback: Integrated Digital
  • Motor Shaft: Includes Key and Sealing Ring
  • Holding Brake: Not Available
  • Power Connector Position: Side B
  • Flange Size: 192mm
  • Mounting: Via Screws Connected to Motor Flange
  • Positioning: Can be Installed in Any Desired Position
  • Identification: Type Label with Motor Type Codes, Serial Number and Power Ratings
  • Spare Parts Procurement: Type Label and Encoder Memory Provide Necessary Information
