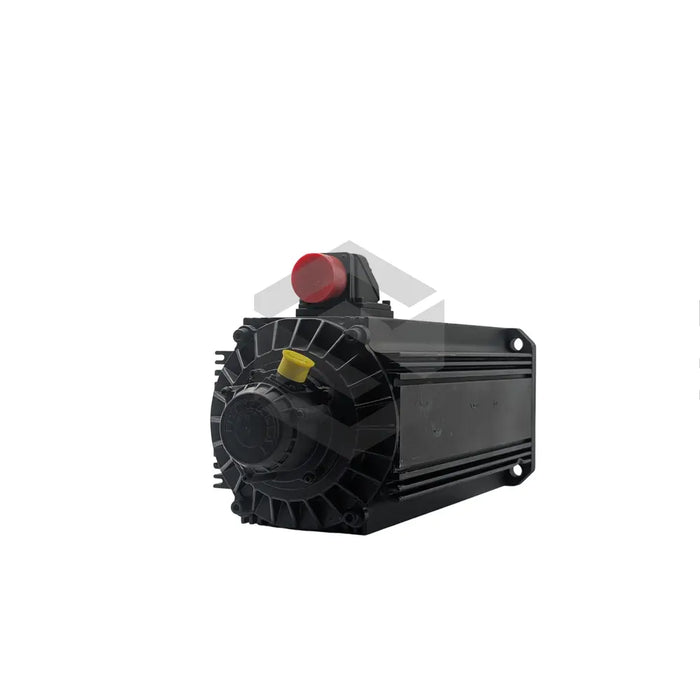

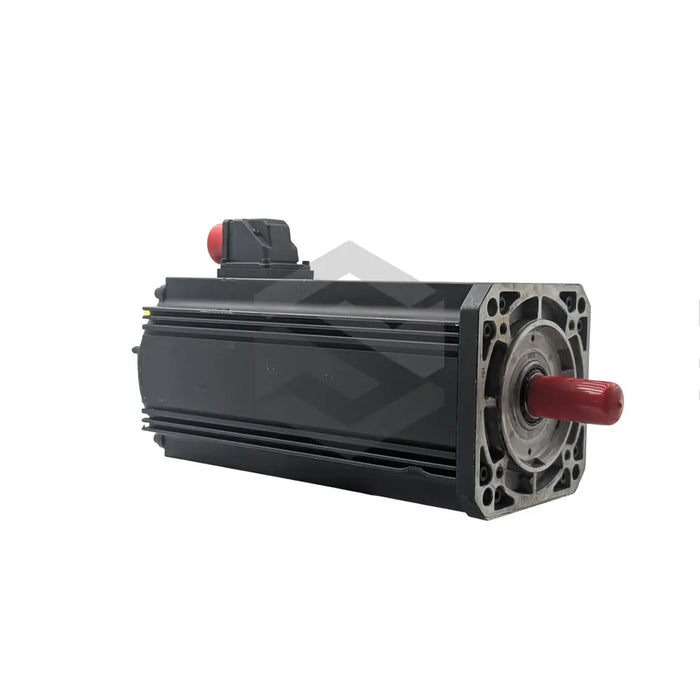

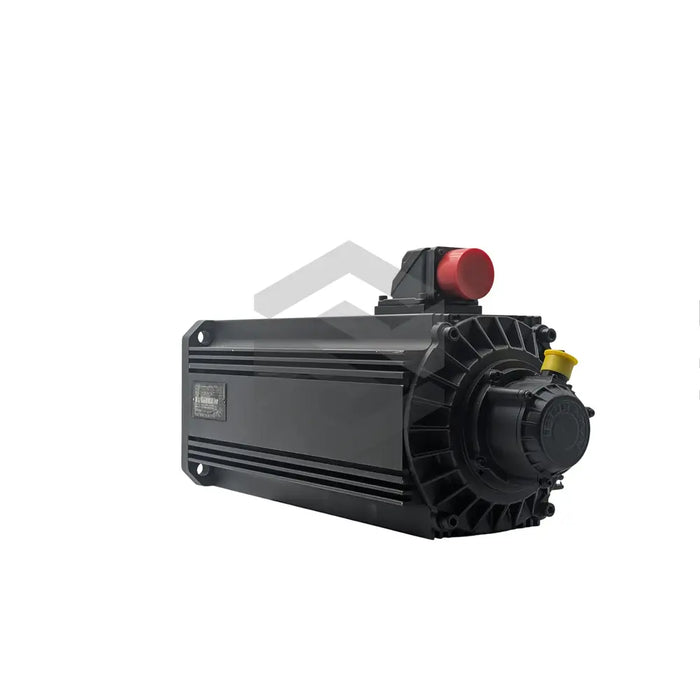

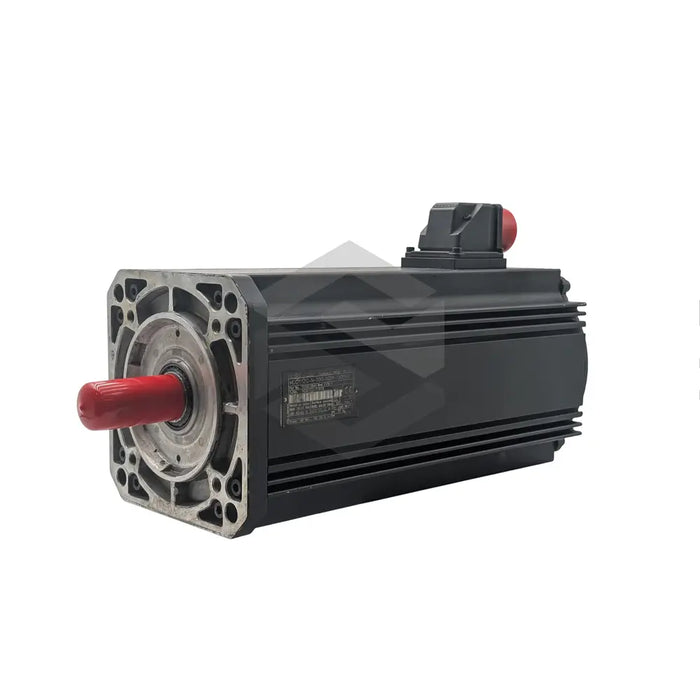

MHD112C-035-PG0-BN

Original price $17,911.80 - Original price $17,911.80
Original price
$17,911.80
$17,911.80 - $17,911.80
Current price $17,911.80
Available, Shipping Varies
Request a quote
The MHD112C-035-PG0-BN is a part of the MHD series of motors, crafted by Bosch Rexroth Indramat. This motor lacks an in-built holding brake but a supplementary brake, capable of 70 Nm torque, can be procured separately. It features distinctive connections for encoders and power, which is situated on Side B, and includes provision for the integrated temperature sensor. Although the motor is bundled with flange sockets, cables and plugs must be ordered separately. A barcode label encompasses essential details like motor type, customer, etc. For storage, a dry, vibration and dust free environment, within -20 to 80 degrees Celsius is mandated. The motor, with a 112 frame size and a 'C' length, supports Digital servo feedback via an integrated multiturn absolute encoder. Its design is adapted for surface cooling, thus demanding substantial free space for unobstructed airflow around the installed motor.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MHD112C-035-PG0-BN
  • Product Series: MHD
  • Motor Type: MHD series
  • Brake Type: 70 Nm torque (optional)
  • Connection Type: Separate plug connections
  • Power Connector Location: Side B of the motor
  • Power Connection: Flange sockets with screwed connection or bayonet catch
  • Storage Environment: Dry, free from dust and vibration
  • Storage Temperature: -20 to 80 degrees Celsius
  • Motor Frame Size: 112
  • Motor Frame Length: C
  • Winding Code: 035
  • Shaft Type: Plain with shaft sealing ring
  • Feedback Type: Digital servo feedback with integrated multiturn absolute encoder
  • Cooling Type: Surface cooling
