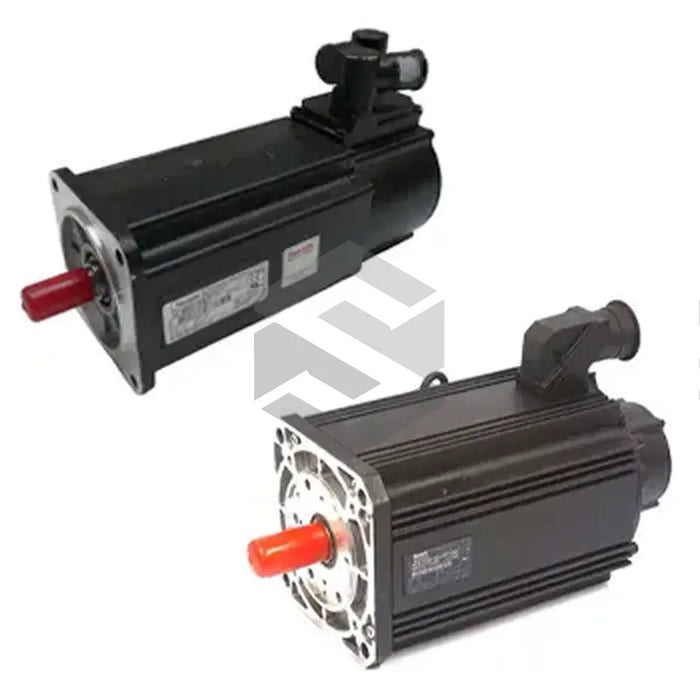

S image of MHD112C-058-NP3-AN

MHD112C-058-NP3-AN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Designed by Bosch Rexroth Indramat, MHD112C-058-NP3-AN is a high-grade synchronous motor intended for optimal energy efficiency, longevity, and cost-effectiveness in industrial applications. Capable of a maximum 4500 RPM, it uses digital servo feedback to ensure precise speed and shaft position control. Under natural cooling, it delivers a constant torque of 38 Nm with a continuous current of 53.2 A at 60K. When performing under surface cooling, it has a rated power of 19.4 kW at 276 volts and 3500 RPM. The motor's operation is optimal at +40 degrees Celsius, having a winding resistance of 0.12 ohms and winding inductivity of 1.5 mH. Ideal for shock-absorbing applications, its thermal time constant is 40 minutes under surface cooling, and it weighs 45 kg without accessories. The motor has four polar pairs at 20 degrees Celsius, generating torque and voltage constants of 0.8 Nm/A and 72.7 V/1000min-1.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112C-058-NP3-AN

Maximum Rotational Speed

4500 revolutions per minute

Moment of Inertia

273 x 10-4 kgm2

Cooling Mode

Natural and Surface

Constant Torque (Natural Cooling)

38 Nm

Continuous Current (Natural Cooling)

53.2 A

Rated Power (Surface Cooling)

19.4 kW

Operating Voltage

276 volts

Rated Speed

3500 revolutions per minute

Rated Current (Natural Cooling)

17.9 A

Optimal Temperature

+40 degrees Celsius

Winding Resistance

0.12 ohms

Winding Code

058

Winding Inductivity

1.5 mH

Polar Pairs

4

Torque Constant

0.8 Nm/A

Voltage Constant

72.7 V/1000min-1

Rated Torque (Natural Cooling, 60K)

15.3 Nm

Rated Power (Natural Cooling, 60K)

3.9 kW

Voltage Consumption (Natural Cooling, 60K)

133 volts

Current Consumption (Natural Cooling, 60K)

15.2 A

Thermal Time Constant (Surface Cooling)

40 minutes

Weight

45 kilos
