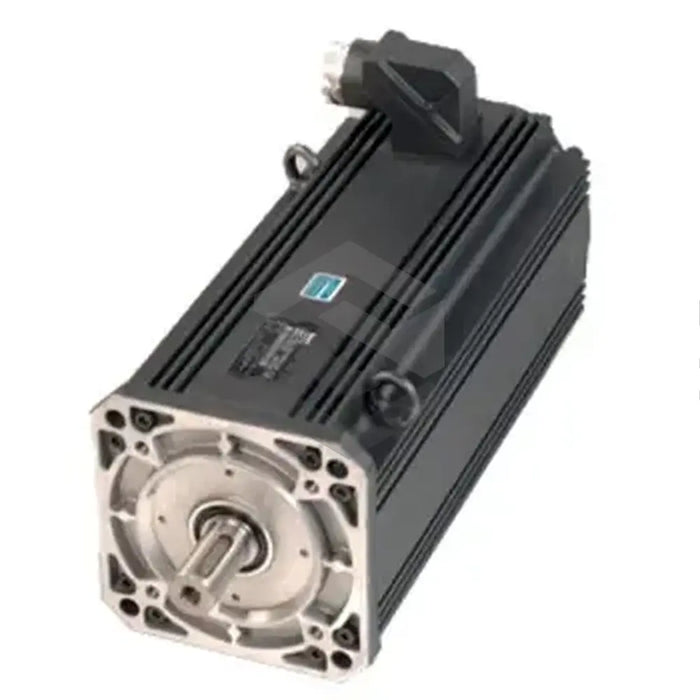

P image of MHD112C-058-PG3-AN

MHD112C-058-PG3-AN

by Bosch Rexroth Indramat
$16,200.00 - $16,200.00
$16,200.00
$16,200.00 - $16,200.00
$16,200.00

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD112C-058-PG3-AN, an efficient synchronous motor, boasts a performance-to-weight ratio that stands out from others. Offering a theoretical torque of 148 Nm with a maximum current consumption of 239 A, it is praised for its versatility and efficiency. The motor has two different thermal time constants based on the cooling type-90 or 40. The liquid-cooled version at 60/100 K offers continuous torque of 57Nm at 3500 RPMs with a 233 Hz rated frequency. In a natural cooling setting, it exhibits a rated power of 8 kW, a 16.9 Nm of torque and runs at a speed of 3500 RPMs with a 100-K temperature. Optimal performance is observed within ambient conditions of 0 to +40 degrees Celsius. The motor is embedded with a multiturn absolute encoder, and a 3.8-kilogram holding brake with a holding torque of 70 Nm. It has a 0.8 Nm/A torque constant, 0.12 Ohm winding resistance and weighs 45 kilograms.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112C-058-PG3-AN

Theoretical Torque

148 Nm

Maximum Current Consumption

239 A

Weight-to-Performance Ratio

Specific to model

Variety of Applications

Wide

Thermal Time Constant

90 or 40 depending on the cooling mechanism

Continuous Torque at 60/100 K temperature

57 Nm

Rated Rotational Speed

3500 RPM

Rated Frequency

233 Hz

Cooling Mechanism

Both natural and liquid cooling

Rated Power

8 kW

Rated Torque

16.9 Nm

Rated Speed

3500 RPM

Ambient Conditions

0 to +40 degree Celsius

Transport Temperature Range

-20 to +80 degree Celsius

Torque Constant

0.8 Nm/A

Winding Resistance

0.12 ohms

Weight

45 kilos

Output Shaft

Plain

Holding Brake Weight

3.8 kg

Holding Torque

70 Nm

Holding Brake Rating

24 volts

Connection and Disconnection Times

53 and 97 milliseconds respectively.
