S image of MHD112C-058-PP0-AN

MHD112C-058-PP0-AN

by Bosch Rexroth Indramat
$65,341.58 - $65,341.58
$65,341.58
$65,341.58 - $65,341.58
$65,341.58

In Stock, Ships 1 - 3 Days

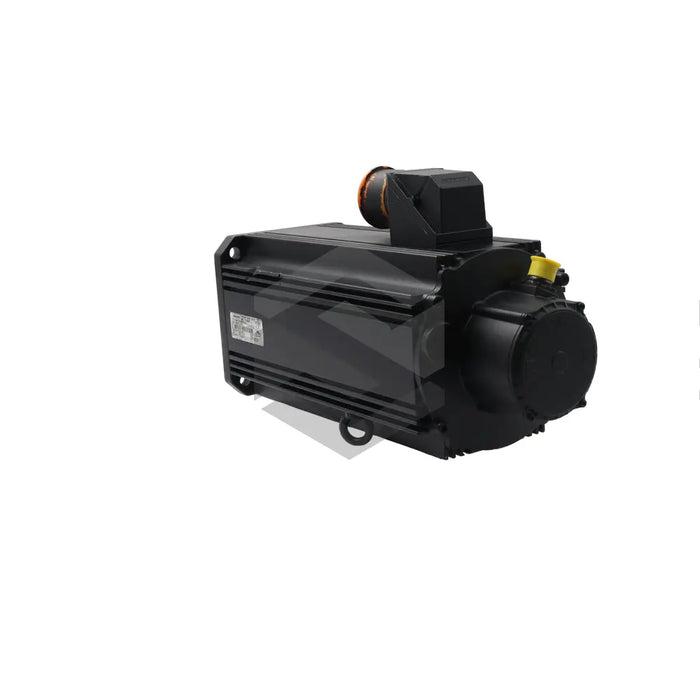

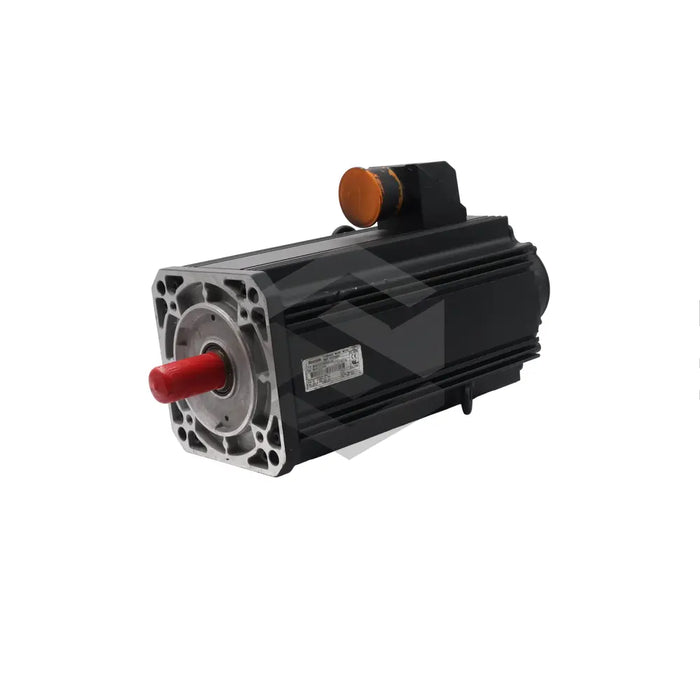

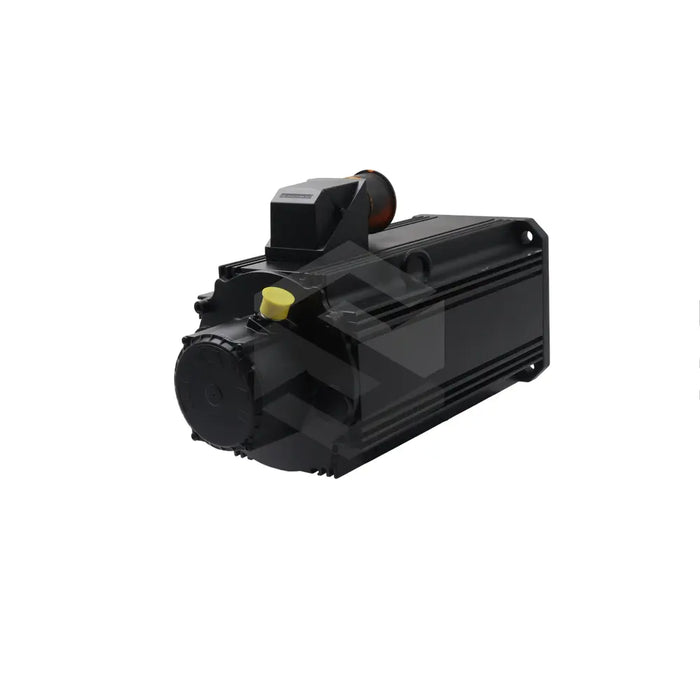

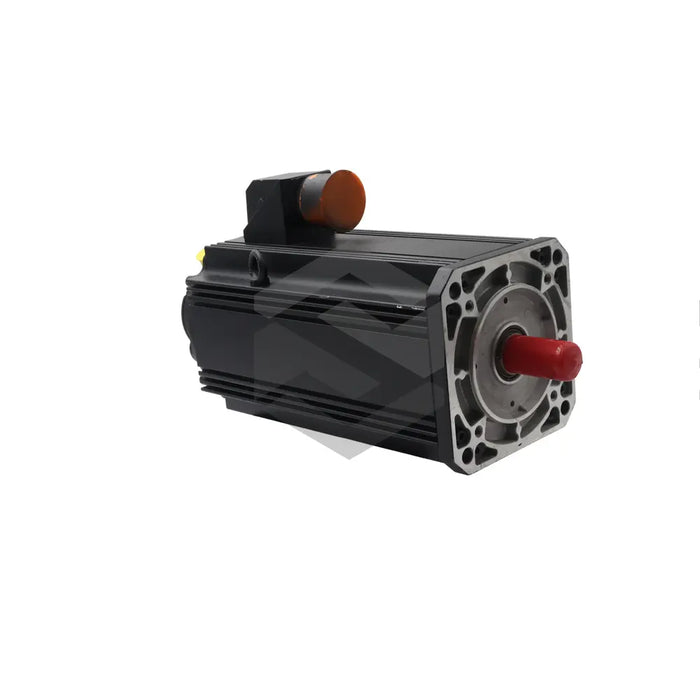

The Bosch Rexroth Indramat MHD112C-058-PP0-AN is a reliable, maintenance-free MHD Series synchronous motor that pairs with digital drive controllers. Ideal for machine tools, handling and automation, it operates optimally between 0-40 degrees Celsius. Its weatherproof (IP65 rated) closed design contains components like a stator, rotor, bearings, encoder, shaft and has no holding brake. The motor housing supports natural convection or surface cooling, and the power connector is on side A of the housing. The motor has integrated digital servo feedback and an operating speed range of 2000-4500 RPM. It offers continuous stall torque, ranging from 38-57 Nm, depending on overtemperature and cooling method. The MHD112C-058-PP0-AN motor weighs 45 kg and performs at a maximum height of 1000 meters above sea level, with output derating at higher elevations. Its insulation class is F, per DIN VDE 0530 Part 1, and it has a prime black coat surface finish. It doesn't support liquid cooling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

MHD series synchronous motor

Usage

Machine tools, handling and automation

Motor Type

Permanent magnet based

Design

Closed design

Protection Rating

IP65

Components

Stator, rotor, bearings, encoder, shaft

Holding Brake

Not available

Cooling Method

Natural Convection or Surface Cooling

Optimal Ambient Temperature

0 to 40 degrees Celsius

Power Connector Location

Side A of housing

Shaft Inclusions

Key and sealing ring

Encoder Type

Integrated multiturn

Feedback Type

Digital servo

Characteristic Speed

4000 RPM

Maximum Speed

4500 RPM

Rated Speed at 60K Overtemperature with Natural Convection

2000 RPM

Rated Speed with 100K Overtemperature and Natural Convection or Surface Cooling

3500 RPM

Continuous Stall Torque at 60K Overtemperature and Natural Convection

38 Nm

Continuous Stall Torque at 100K Overtemperature and Natural Convection

43.5 Nm

Continuous Stall Torque with Surface Cooling

57 Nm

Liquid Cooling

Not available

Motor Weight

45 kilograms

Maximum Setup Height

1000 meters above sea level

Insulation Class

F as per DIN VDE 0530 Part 1

Surface Coat

Prime black.
