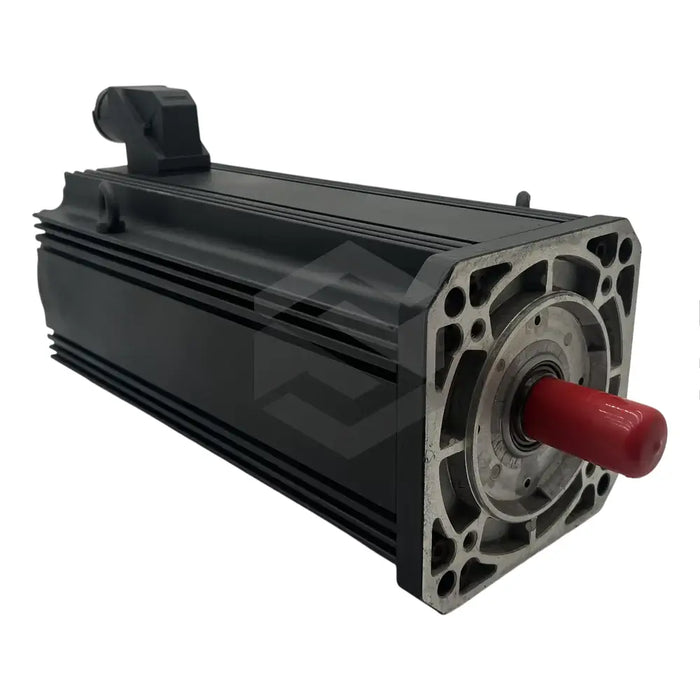

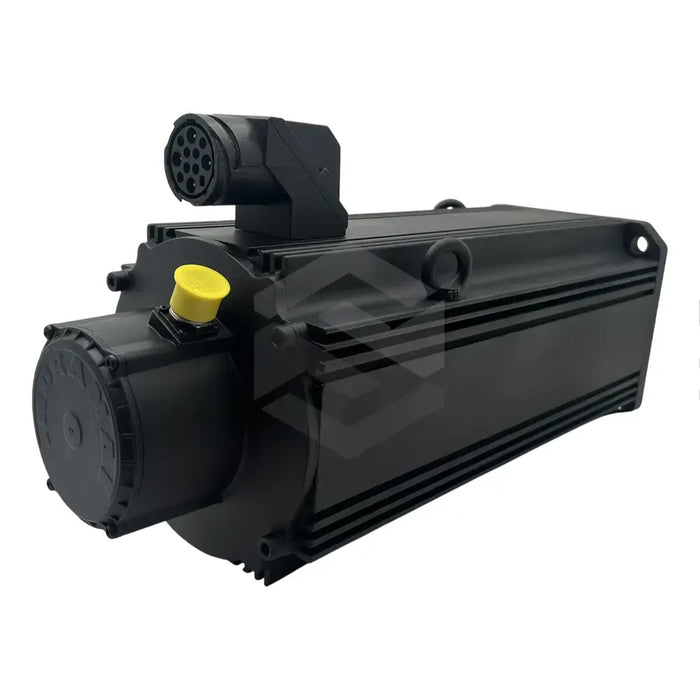

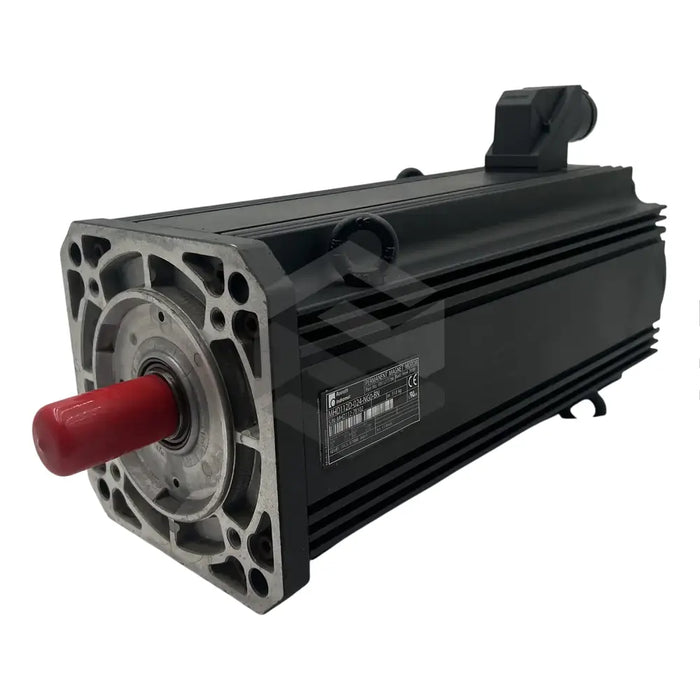

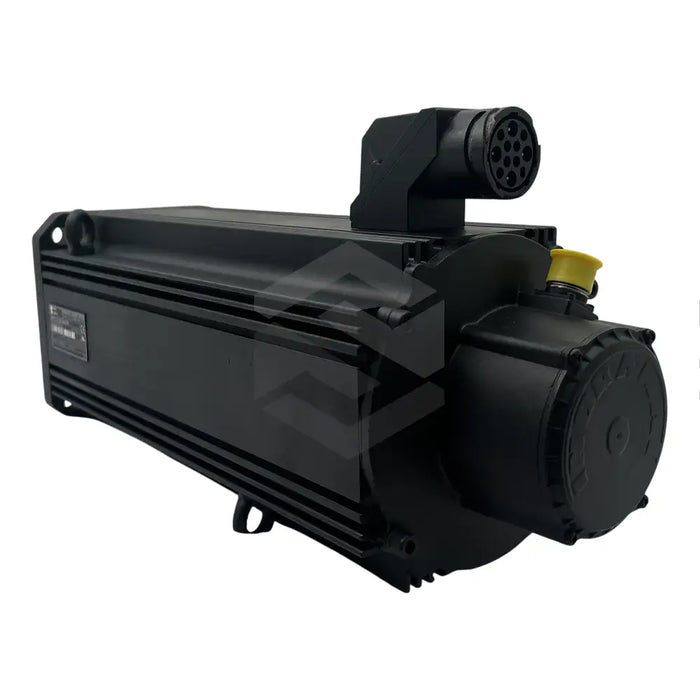

series image of MHD112D-024-NG0-BN

MHD112D-024-NG0-BN

by Bosch Rexroth Indramat
$4,595.25 - $4,595.25
$4,595.25
$4,595.25 - $4,595.25
$4,595.25
Available, Shipping Varies
The MHD112D-024-NG0-BN, part of Bosch Rexroth's MHD series, is an industrially-designed motor without a holding brake, though options for 22Nm, 32Nm, or 70Nm brakes can be ordered separately. Tethered to a drive controller, it manages electrical power including speed and position parameters. With a side B power connector, its shaft is plain, featuring a seal that defends against dust, moisture, and oil leaks. The motor is 526mm long, has a flange size of 192mm, centering diameter of 130mm, and shaft diameter of 32mm, with each flange hole 14mm in diameter. It supports integrated digital servo feedback and houses natural convection or surface cooling mechanisms depending on the motor load. Designed to work between 0 to 40 degrees Celsius and stored between -20 to 80 degrees, the motor operates best at altitudes up to 1000m, is IP65 protected, and boasts insulation class F.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD Series
  • Motor Type: Industrial
  • Holding Brake: No
  • Power Connection Output Direction: Side B of the housing
  • Shaft Type: Plain with seal
  • Motor Length: 526 millimeters
  • Flange Size: 192 millimeters
  • Centering Diameter: 130 millimeters
  • Shaft Diameter: 32 millimeters
  • Motor Flange Hole Diameter: 14 millimeters
  • Servo Feedback Type: Integrated Digital Servo Feedback
  • Housing Cooling Type: Natural convection or surface cooling
  • Working Temperature Range: 0 to 40 degrees Celsius
  • Storage Temperature Range: -20 to 80 degrees Celsius
  • Working Altitude Range: 0 to 1000 meters
  • Protection Degree: IP65
  • Insulation Class: F
