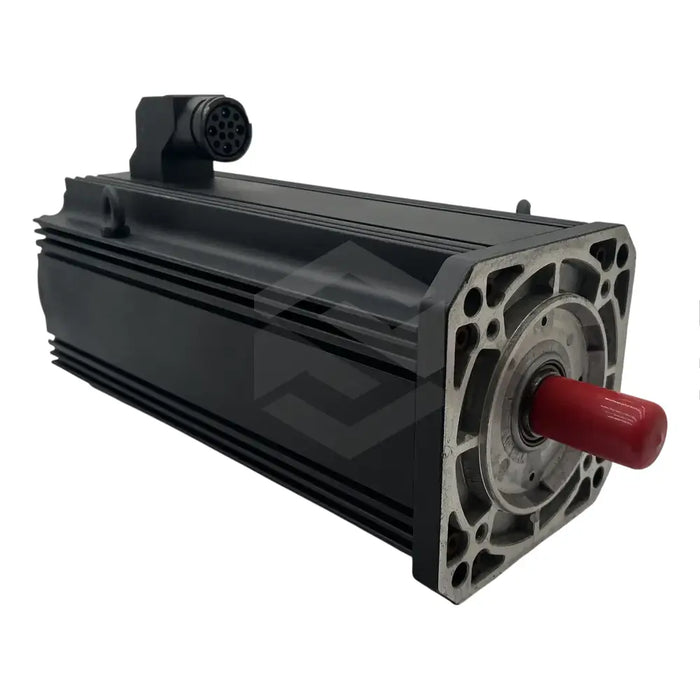

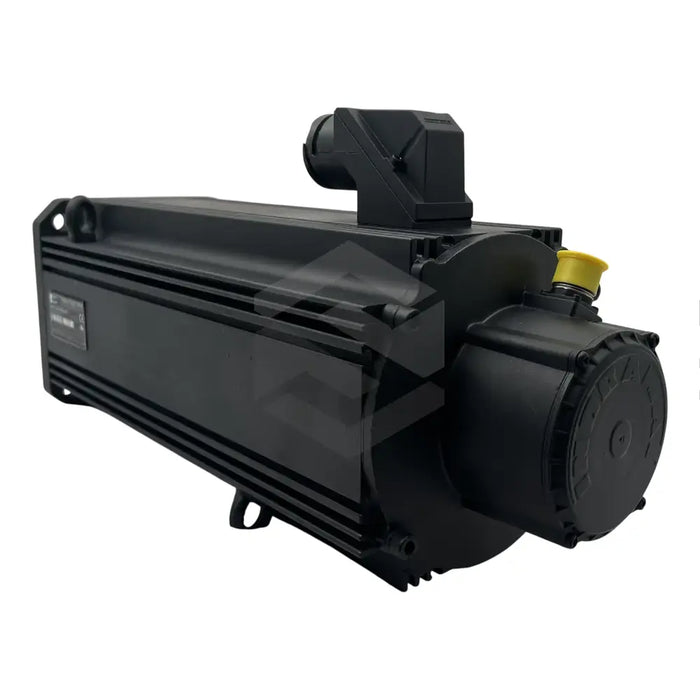

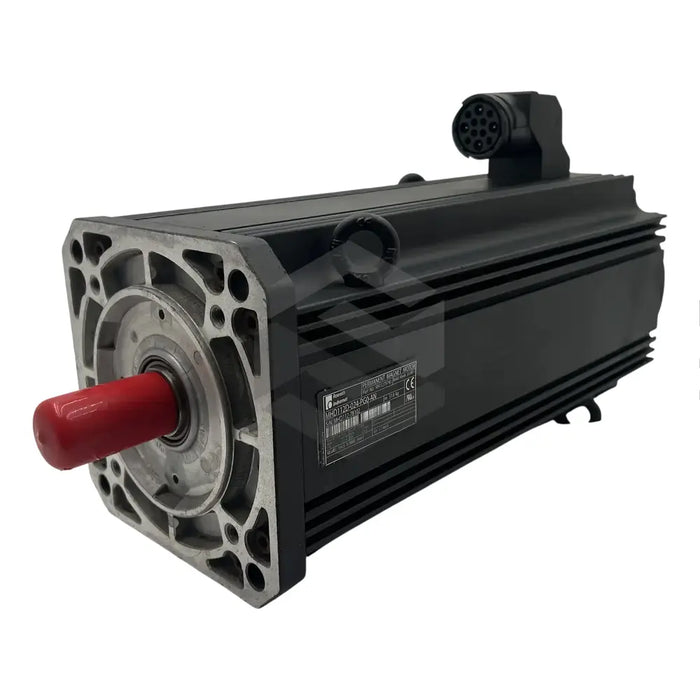

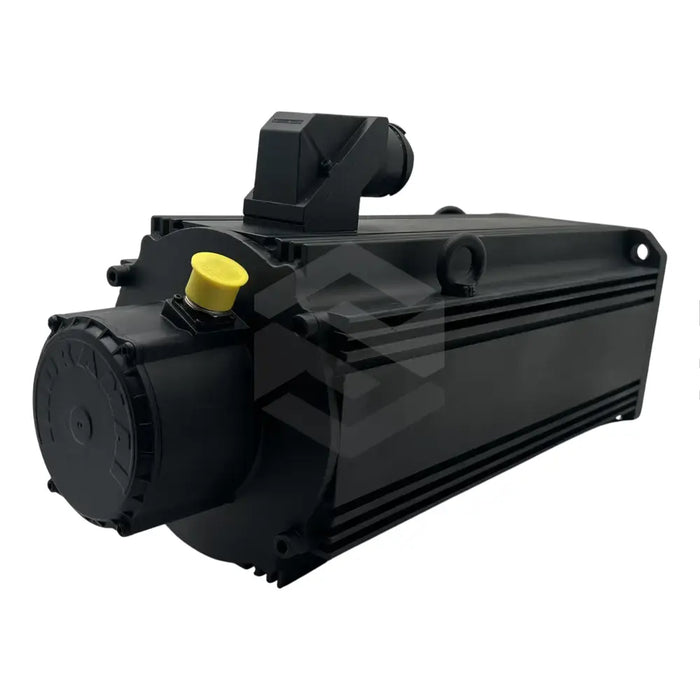

series image of MHD112D-024-PG0-AN

MHD112D-024-PG0-AN

by Bosch Rexroth Indramat
$4,595.25 - $4,595.25
$4,595.25
$4,595.25 - $4,595.25
$4,595.25
Available, Shipping Varies
The MHD112D-024-PG0-AN, engineered by Bosch Rexroth Indramat, is a cutting-edge electric motor designed to function as a servo motor or main rotary in industrial processing systems. It features a robust, compact housing which shields it from harsh industrial conditions. This brushless device operates quietly and efficiently, withstanding high overload and frequent start-stop operations. The MHD112D-024-PG0-AN showcases an electronic commutation generating high torque over a wide speed range. The presence of special permanent magnets lowers its inertia. Its performance varies with housing and winding temperature. For instance, at 100 Kelvin, it creates a continuous torque of 48-newton meters and an output torque of approximately 18.4 amperes. It typically runs at 1000 RPM but can reach speeds up to 2000 RPM at a maximum input current of 82.4 amperes. Dimensions are 526mm in length, 112mm in thickness, and it weighs 56 kilograms. It can run in ambient temperatures up to 50 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Electric Motor
  • Application: Servo Motor or Rotary Main
  • Housing: High Degree of Protection
  • Design: Brushless
  • Feature: High Operational Efficiency, Reduced Noise, High Overload Capability
  • Performance: Continuous Start-Stop Operations at High Repeat Frequency
  • Functionality: Electronic Commutation
  • Special Feature: Low Inertia Load
  • Continuous Torque Output: 48 Newton Meters (at Motor Winding Temperature of 100 Kelvin)
  • Continuous Output Current: 18.4 Amperes
  • Characteristic Motor Speed: 1000 Revolutions per Minute
  • Maximum Operating Speed: 2000 Revolutions Per Minute (at maximum input current of 82.4 amperes)
  • Length: 526 Millimeters
  • Diameter: 112 Millimeters
  • Weight: 56 Kilograms
  • Maximum Operating Ambient Temperature: 50 Degrees Celsius.
