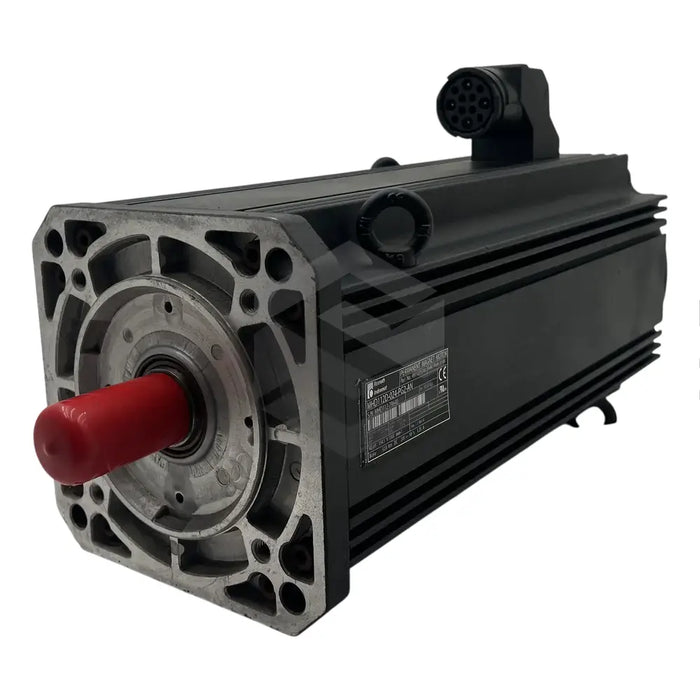

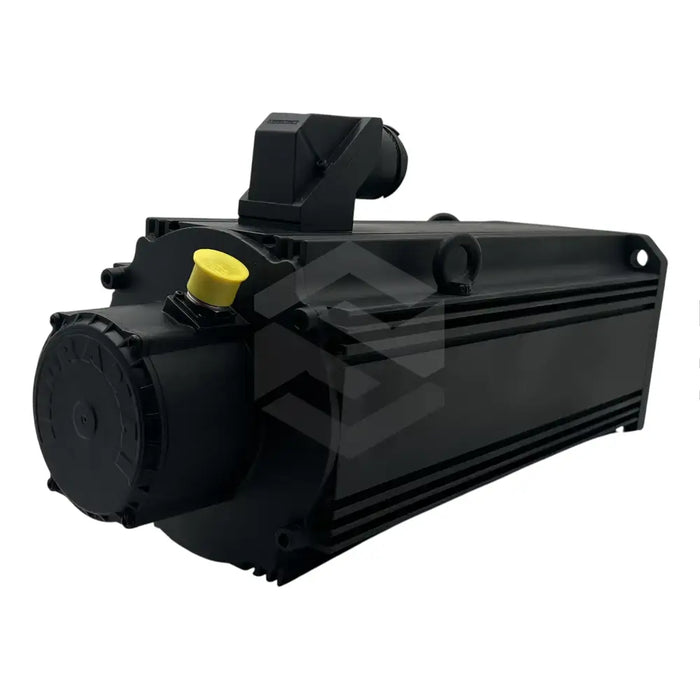

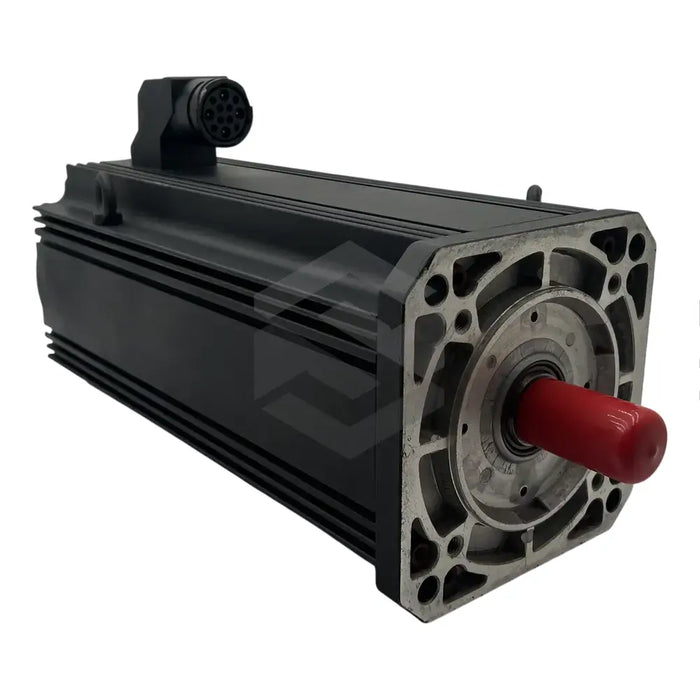

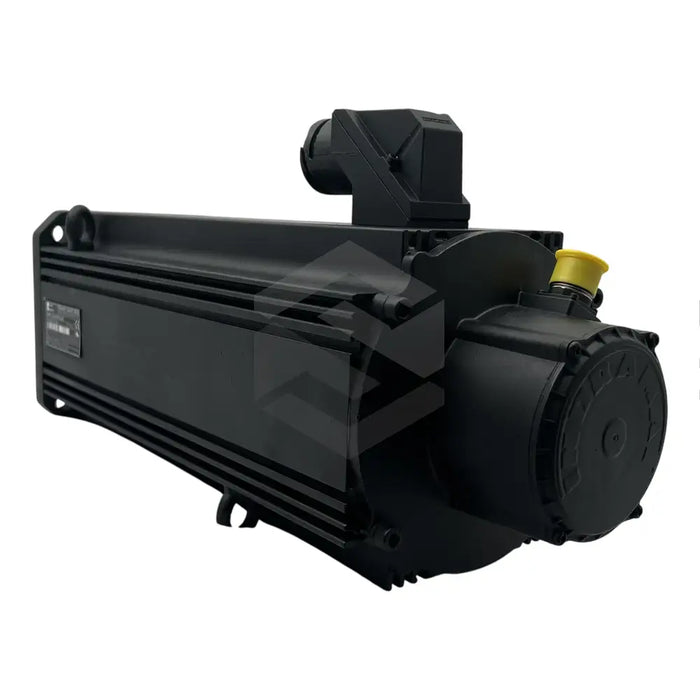

MHD112D-024-PG2-AN
The MHD112D-024-PG2-AN is a MHD series servo motor crafted by Bosch Rexroth Indramat for various industrial uses including machine tools and food machinery. Featuring a frame size of 112 and a frame length of D, this motor is maintenance-free and can be installed in any position, even in challenging operating environments. Its structure, composed of a stator, a rotor, bearings, shaft sealing ring, and an encoder, contains special permanent magnets and low inertial mass. The motor housing and connections are fully sealed, earning it an IP65 rating for being dustproof. Optimal running temperature ranges from 0 to 40 degrees Celsius. The motor uses a drive controller for power and includes a plain shaft with a sealing ring. It also possesses a digitally-controlled holding brake that takes around 15 milliseconds to engage and 115 milliseconds to disengage. The housing is coated in black (RAL 9005) and features insulation class F.
