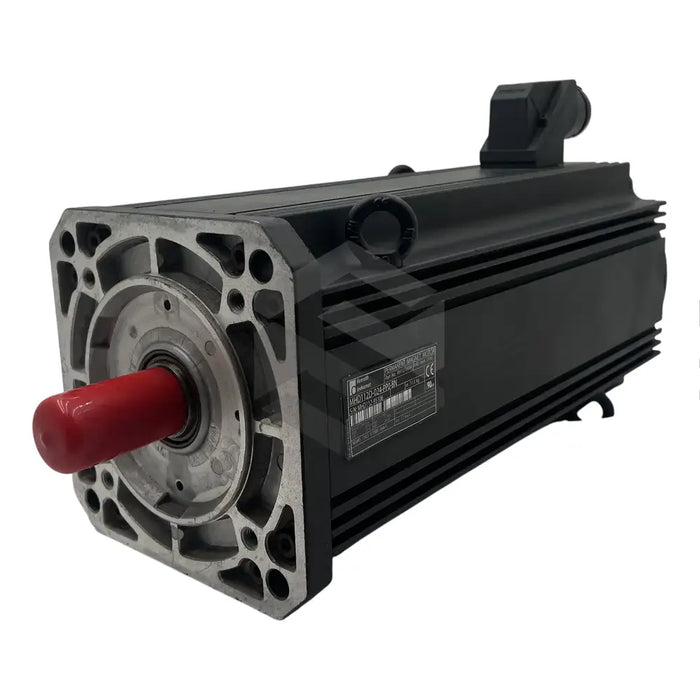

C image of MHD112D-024-PP0-BN | Main (Front Left)

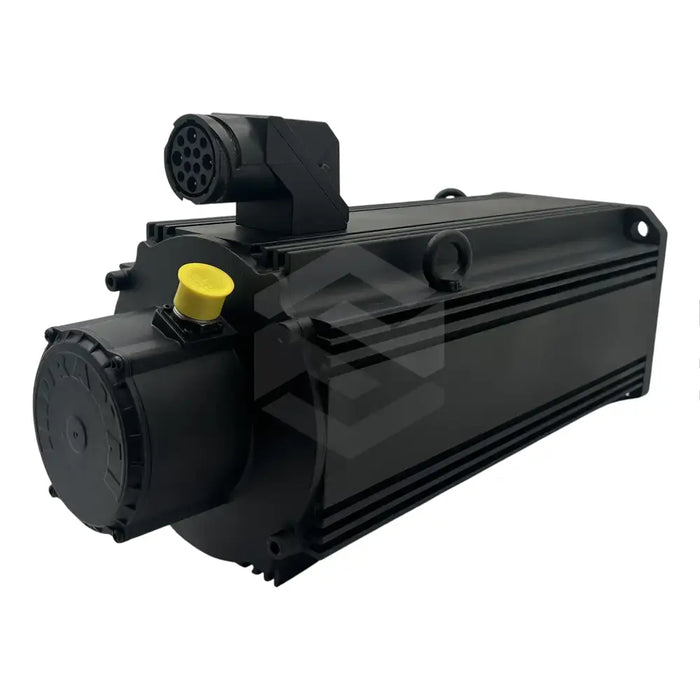

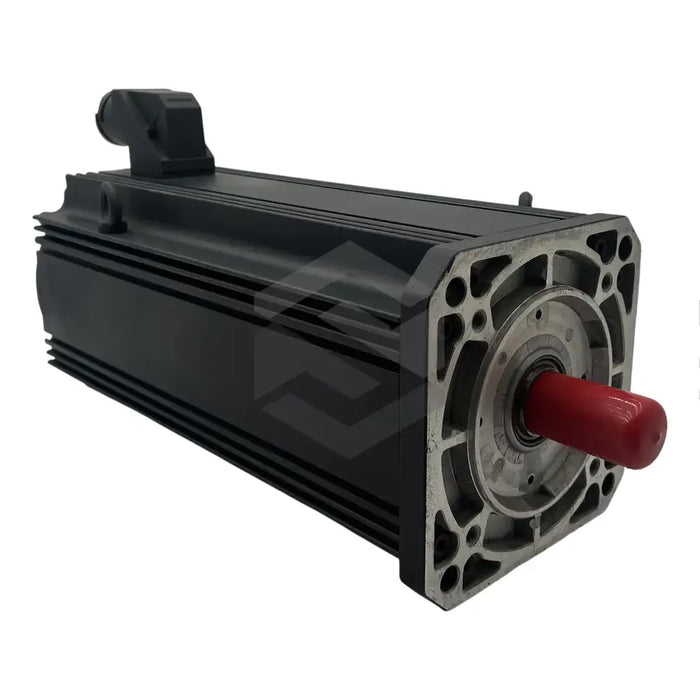

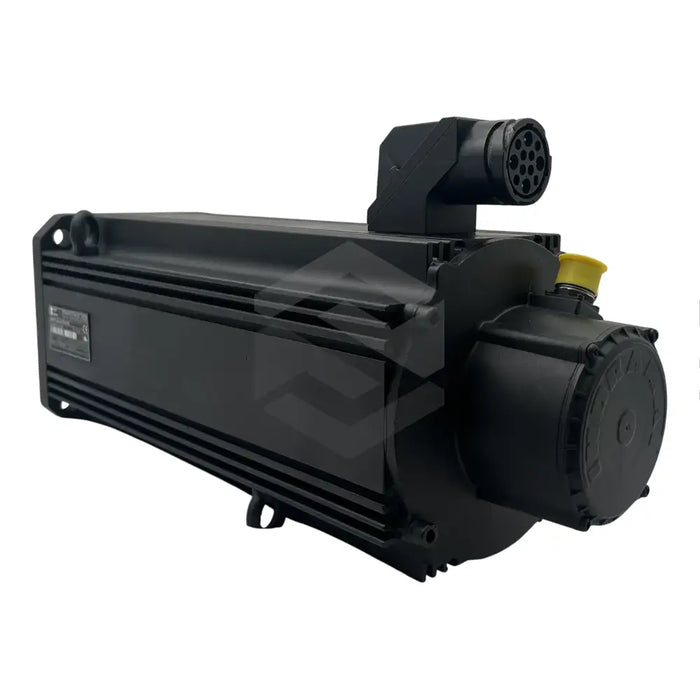

MHD112D-024-PP0-BN

by Bosch Rexroth Indramat
$5,170.75 - $5,170.75
$5,170.75
$5,170.75 - $5,170.75
$5,170.75

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's MHD112D-024-PP0-BN belongs to their MHD series, representing a high-quality synchronous motor. Before operating, ensure correct installation and secure electrical connections with a connector for power on side B. The setup requires experienced personnel for proper motor flange coupling to the machine and secure grounding connections. Protective measures against moving parts are necessary for safe operation. Note that only Rexroth Indramat drive controllers are compatible. It is a surface cooled motor designed to operate between 32 and 104 degrees Fahrenheit. This model does not come with a holding brake and is equipped with a key-shaft per DIN 6885-1 standard, and a shaft sealing ring. Its frame is size 112 with a D length, and it supports digital servo feedback with a built-in multiturn absolute encoder. It has a maximum torque of 187 Nm, speed of 3000 RPM, IP65 rated housing, and F class motor insulation. Its peak current rating stands at 142.2 Amps and it operates with a voltage constant and torque constant at 68 degrees Fahrenheit of 154.5 Volts/1000 RPM and 1.7 Nm/A respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

Rexroth MHD series

Model

MHD112D-024-PP0-BN

Power Connection Location

Side B

Operation Conditions

Properly Mounted and Electrically Connected

Cooling Type

Surface cooled

Operating Temperature

32 to 104 degrees Fahrenheit

Holding Brake

No

Shaft Type

DIN 6885-1 with Shaft Sealing Ring

Frame Size

112

Frame Length

D

Servo Feedback

Digital Multiturn Absolute Encoder

Maximum Torque

187 Nm

Maximum Speed

3000 RPM

Housing Protection Rating

IP65

Insulation Class

F

Peak Current Rating

142.2 Amps

Voltage Constant at 68F

154.5 Volts / 1000 RPM

Torque Constant at 68F

1.7 Nm/A.
