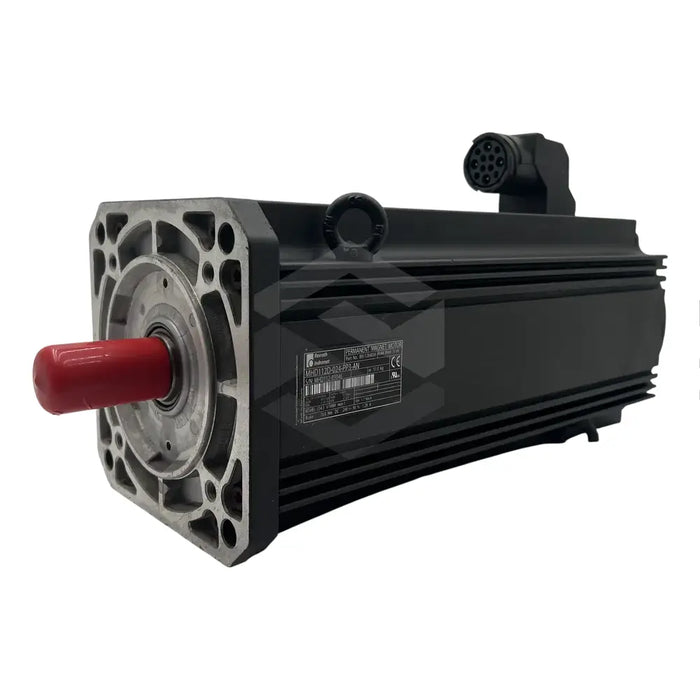

C image of MHD112D-024-PP3-AN | Main (Front Left)

MHD112D-024-PP3-AN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD112D-024-PP3-AN, developed by Bosch Rexroth Indramat, is a high-performance industrial servo motor. Utilized with a compatible drive controller, it regulates motor speed, position, and electrical power supply. The integrated encoder sensor tracks speed and position, connecting to the controller through a feedback cable, while motor power is supplied via a separate power cable. This flange mounted motor featuring a 192mm flange, is installed using four mounting screws. With a 130mm centering diameter, a 526mm long housing, and a 32mm shaft that offers 60mm accessibility outside the housing, the motor incorporates a key within its shaft. Rated for 70 Nm, the 3.8kg holding brake is accompanied by optional 22 Nm and 32 Nm brakes. The motor housing allows natural convection and surface cooling, recommended for 0 to 40 degrees Celsius operations restricted to altitudes of 0 to 1000 meters. Operating outside these conditions requires output current derating.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Model

MHD112D-024-PP3-AN

Function

controls motor speed and position

Power Connection

Side A of the housing

Mounting

Flange mounted

Flange Size

192 millimeters

Centering Diameter

130 millimeters

Housing Length

526 millimeters

Shaft Diameter

32 millimeters

Shaft Length outside housing

60 millimeters

Keyway

Included on shaft

Holding Brake

Rated for 70 Nm, weighs 3.8 kilograms

Encoder

Integrated Multiturn, Digital Servo Feedback

Cooling Method

Natural Convection and Surface Cooling

Operating Temperature

0 to 40 degrees Celsius

Operating Altitude

0 to 1000 meters

Output Current Derating

If operated outside recommended ambient conditions.
