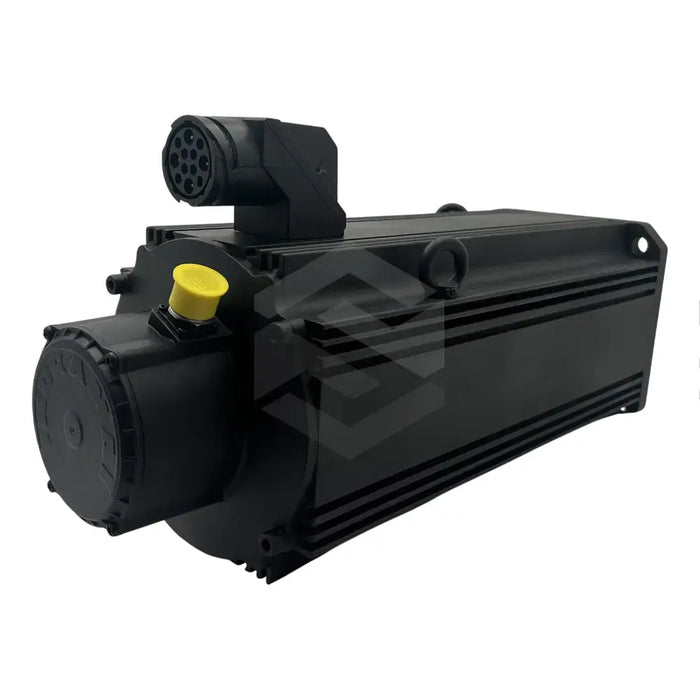

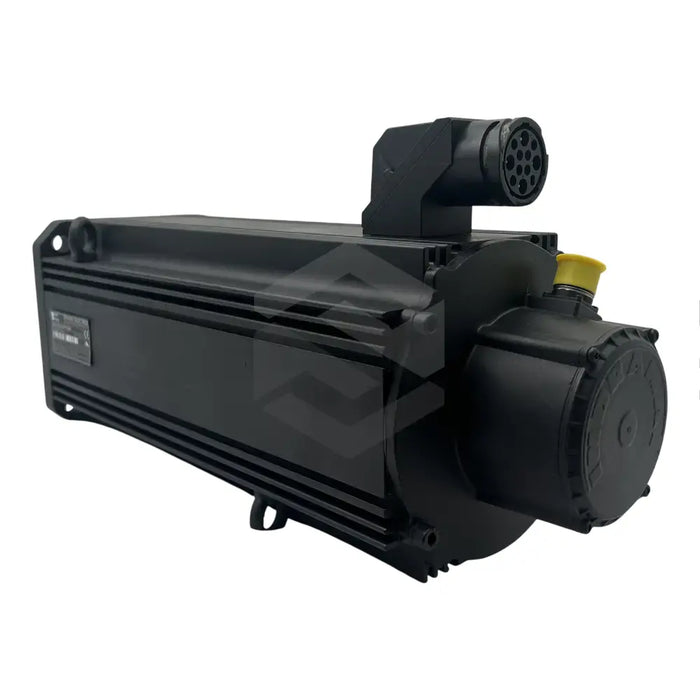

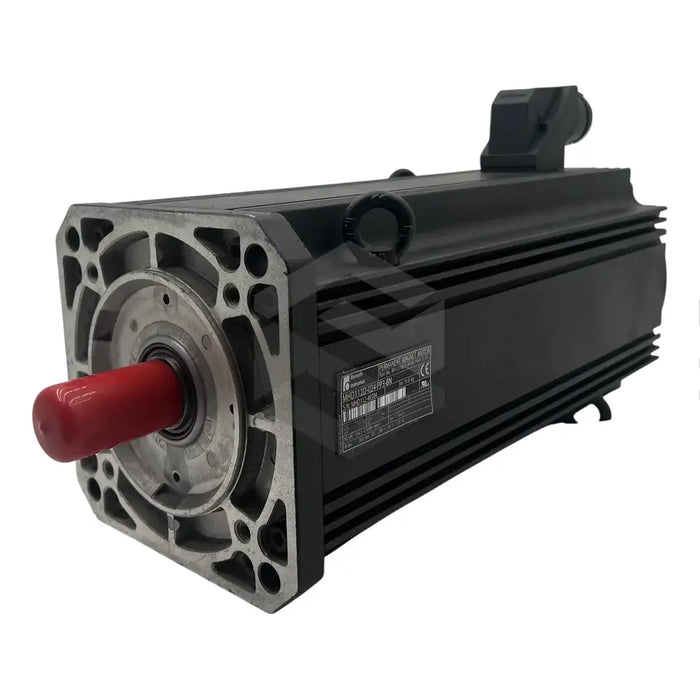

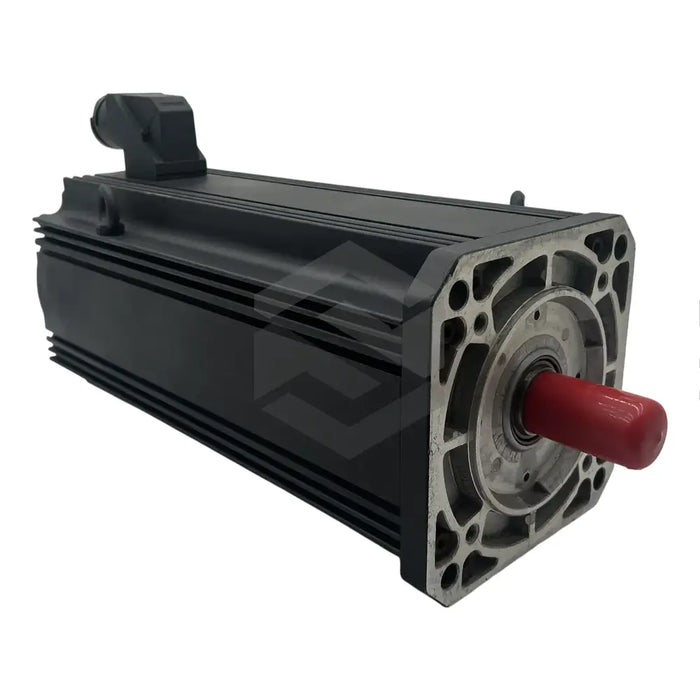

MHD112D-024-PP3-BN
The Bosch Rexroth Indramat MHD112D-024-PP3-BN Motor is a sophisticated machine embedded with an integrated multi-turn encoder and a holding brake. The encoder provides digital servo feedback, while the holding brake prevents unexpected shaft rotation with a 70 Nm holding torque, however, other torque ratings of 22 Nm or 32 Nm can also be specified upon ordering. The motor shaft is complemented with a key and a seal to prevent oil leakage and the penetration of dust or moisture. Ideal operation conditions of the motor fall between 0 and 40 degrees Celsius and at altitudes of 0 to 1000 meters. Installation should be executed by qualified personnel. Its flange contains four mounting holes and a power connector positioned on side B. Cooled naturally or by surface methods, the sealed IP65-protected housing keeps the entire service-life lubricated bearings protected from intrusion. Use with non-approved accessories or for non-approved applications is discouraged.
