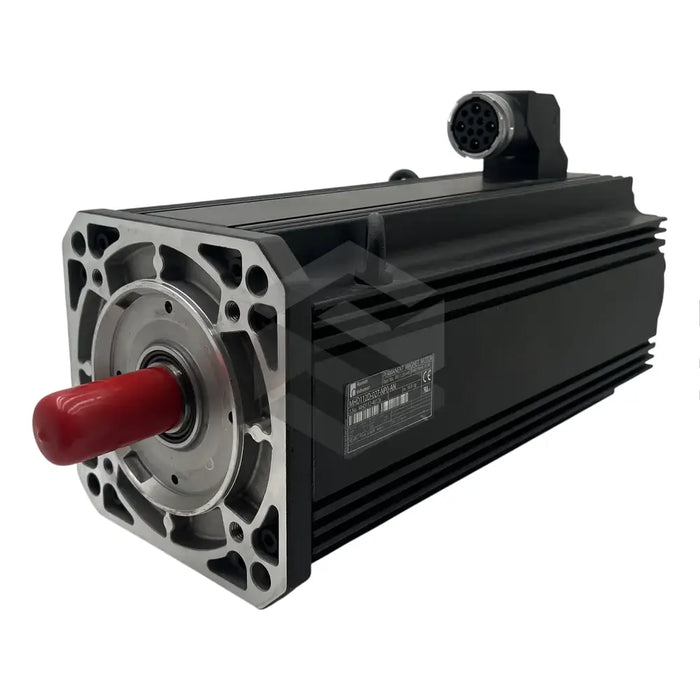

C image of MHD112D-027-NP0-AN | Main (Front Left)

MHD112D-027-NP0-AN

by Bosch Rexroth Indramat
$13,453.90 - $13,453.90
$13,453.90
$13,453.90 - $13,453.90
$13,453.90

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112D-027-NP0-AN is a top-quality synchronous motor with diverse industrial applications. Characterized by its permanent magnet design, low inertia, and high performance data, this motor is utilized within machine tools, the printing and paper industries, and food and packaging machines, among others. With a frame size of 112, this motor features a centering diameter of 130mm, flange size of 192mm, and houses four pole pairs. It has a moment of inertia of 350 x 10⁻⁴ kgm2 and operates at a maximum speed of 3,000 RPM. The motor employs a housing design that can support natural convection or surface cooling methods and is equipped with a digital servo feedback encoder. Its lifetime-lubricated bearings, brushless design, and temperature monitoring system ensure reliable, maintenance-free functionality. This model is best operated between 0°C and 40°C and up to a height of 1000m above sea level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD synchronous motors

Product Type

Permanent magnet synchronous motor

Product Code

MHD112D-027-NP0-AN

Frame Size

112

Centering Diameter

130mm

Flange Size

192mm

Pole Pairs

4

Moment of Inertia

350 x 10⁻⁴ kgm2

Maximum Speed

3,000 revolutions per minute

Rated Frequency

133 Hz

Voltage Constant at 20°C

154.5V/1000min⁻¹

Winding Resistance at 20°C

0.35 Ohms

Cooling Method

Natural convection or surface cooling

Shaft Design

Plain output shaft with shaft sealing ring

Shaft Connection

Friction-locked shaft hub connection

Feedback Encoder

Digital Servo Feedback

Installation Height

Up to 1000m above sea level

Operating Temperature Range

0°C to 40°C

Additional Features

Temperature monitoring system, Lifetime-lubricated bearings, Brushless design.
