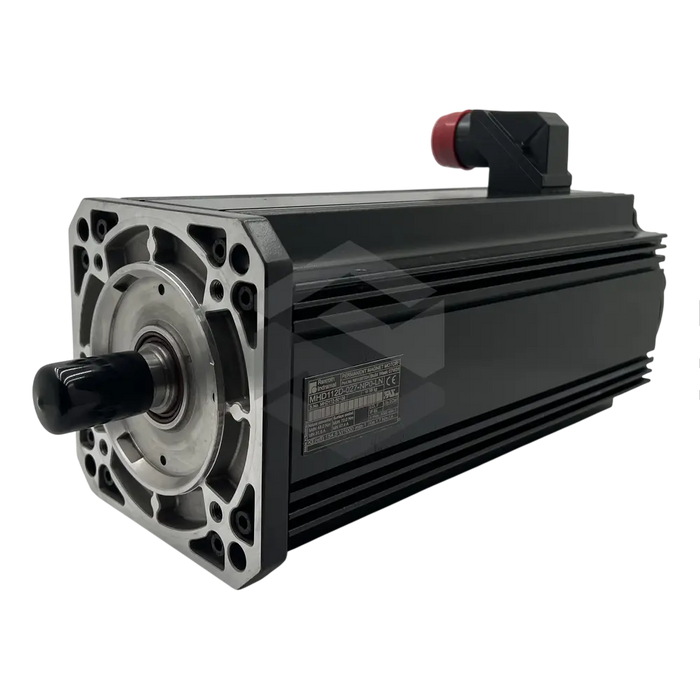

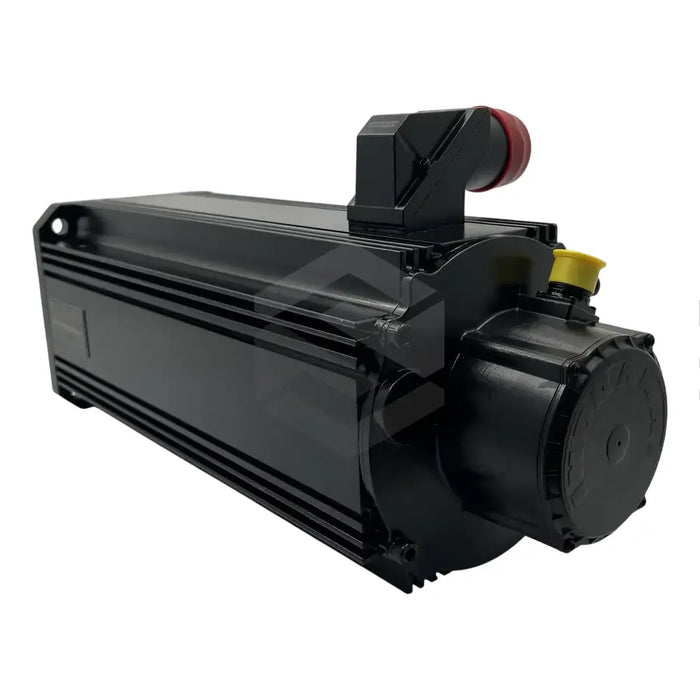

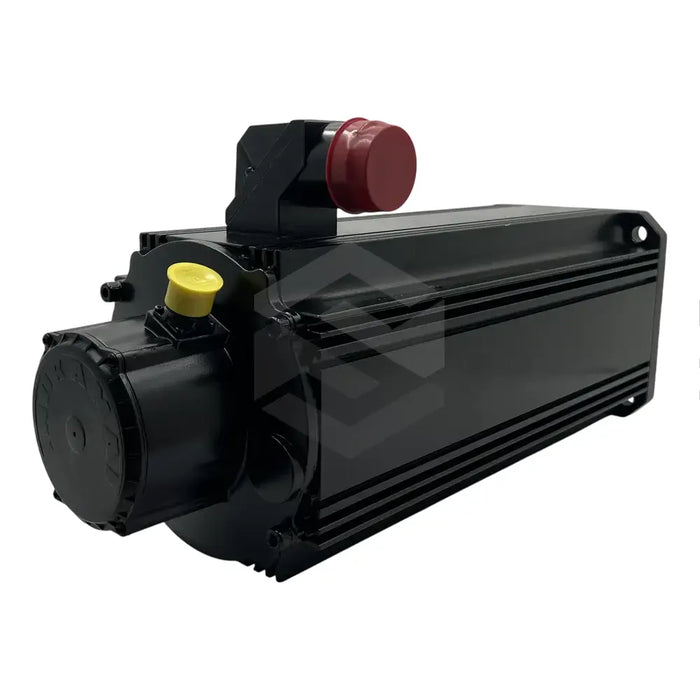

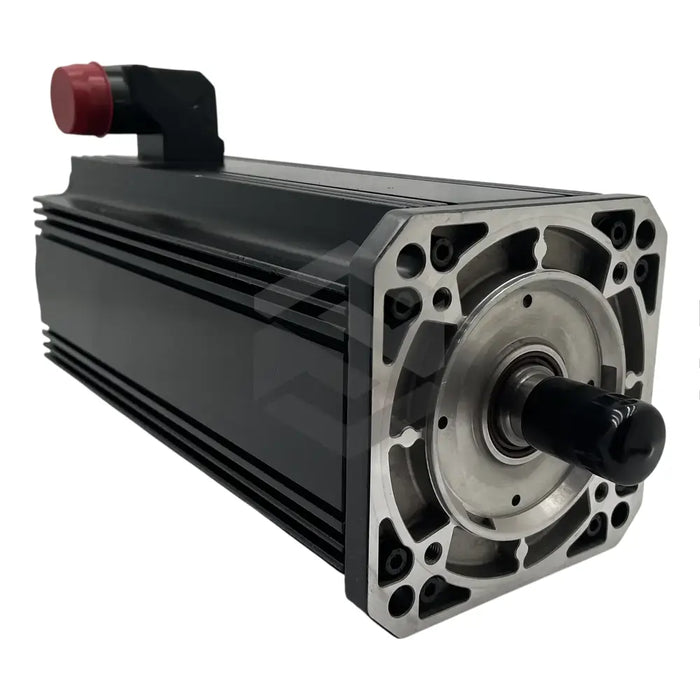

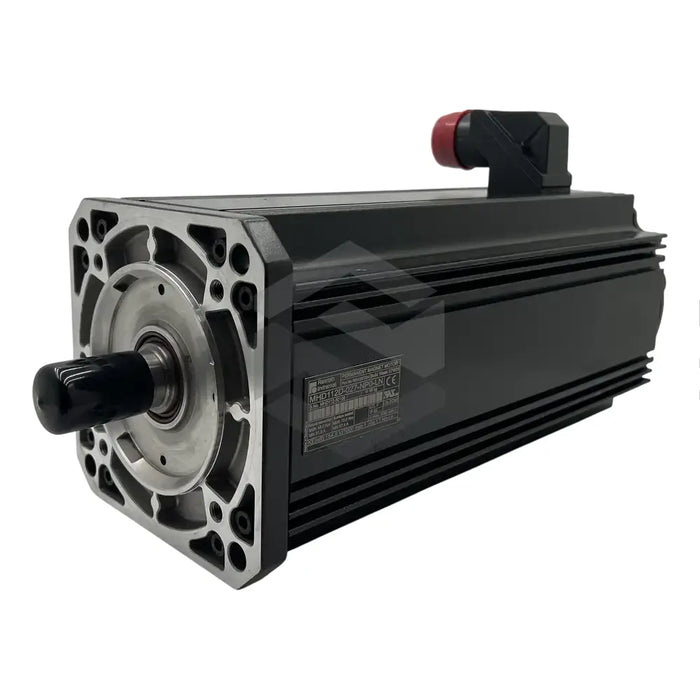

C image of MHD112D-027-NP0-LN | Main (Front Left)

MHD112D-027-NP0-LN

by Bosch Rexroth Indramat
$13,453.90 - $13,453.90
$13,453.90
$13,453.90 - $13,453.90
$13,453.90

In Stock, Ships 1 - 3 Days

The MHD112D-027-NP0-LN, a product of Bosch Rexroth Indramat, is a highly efficient synchronous servo motor used in diverse industries ranging from packaging and food processing to automation systems. Recognized for its high overload capability, this MHD series servo motor is equipped with integrated thermal sensors for optimal temperature regulation. It's created with permanent magnet materials, resulting in a low inertia mass and excellent torque to mass ratio dynamics. The motor features a flange size of 192mm, 130mm centering diameter, and a winding code of 027. Its maintenance-free bearings are structured for high radial loads, supporting direct overhung mounting of pulleys and pinions. The motor operates at 3,000 RPM, with four pole pairs and a theoretical maximum torque of 187.0Nm. Its digital servo feedback enables accurate speed and position control. Meeting the EN 60529 standards, it possesses an IP 65 rating for dust and water-jet resistance, requiring a maximum ambient temperature of 40oC and a setup height of 1000m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD Servo Motors

Motor Model

MHD112D-027-NP0-LN

Type

Synchronous Servo Motor

Material

Permanent Magnet

Inertia

Low

Flange Size

192mm

Centering Diameter

130mm

Winding Code

027

Bearings

Designed for High Radial Loads

Lubrication

Lifetime

Characteristic Motor Speed

3000 revolutions per minute

Pole Pairs

4

Theoretical Maximum Torque

187.0Nm

Servo Feedback

Digital

Encoder System Accuracy

±0.5 angular minutes

Ingress Protection Rating

IP 65

Max Ambient Temperature

40oC

Max Setup Height

1000m.
