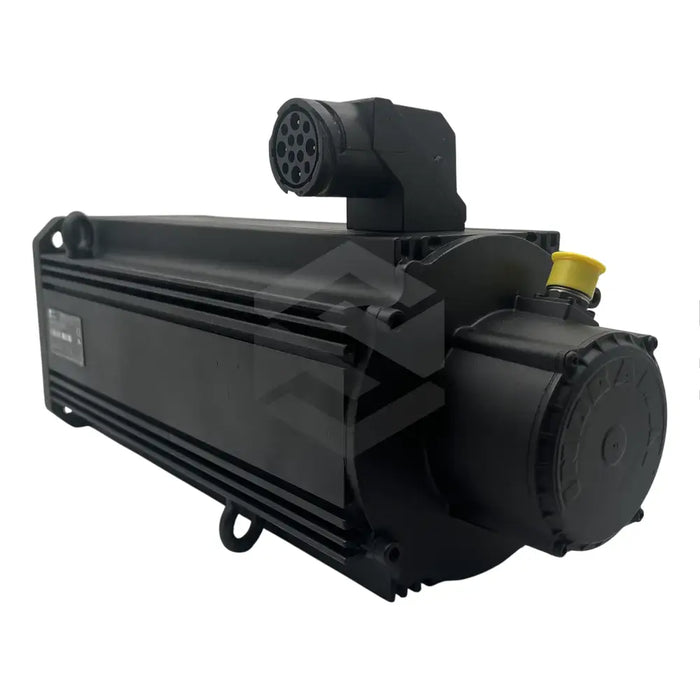

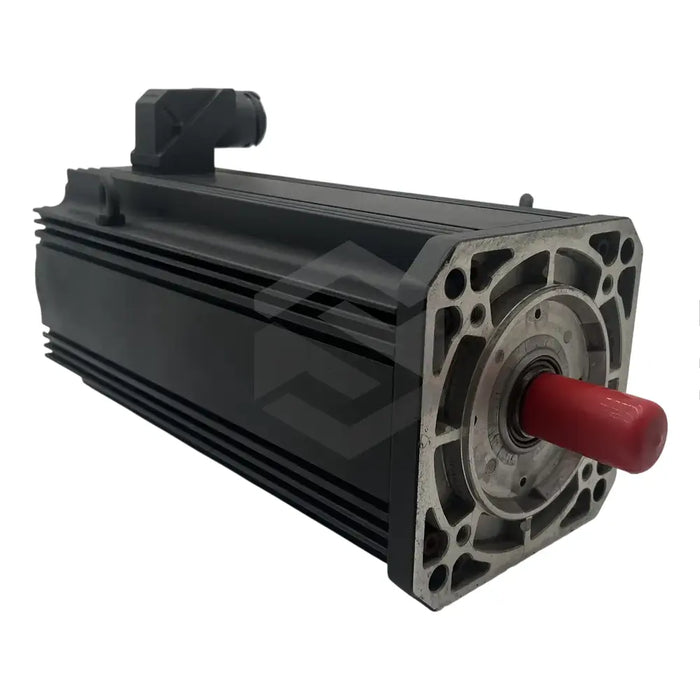

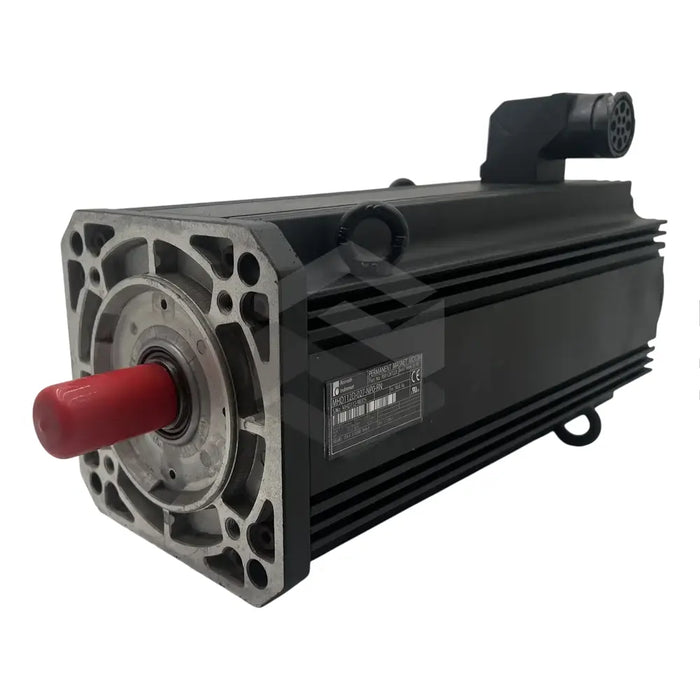

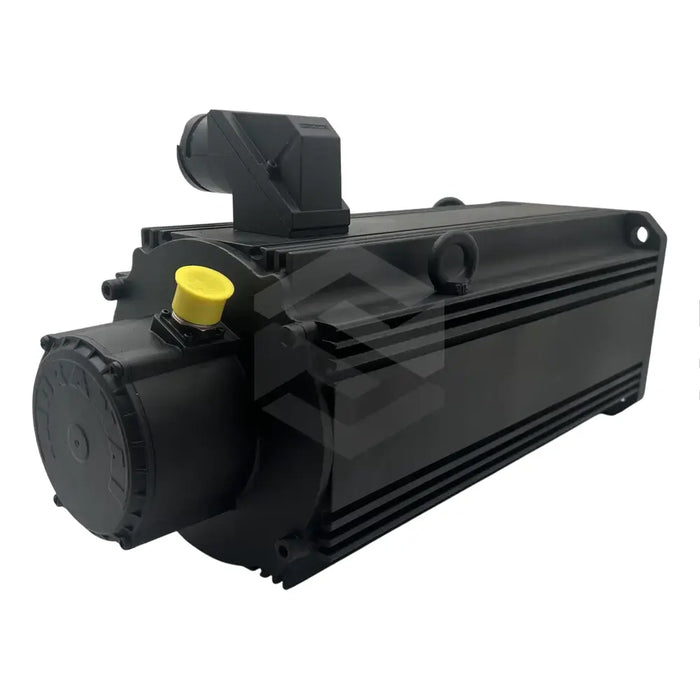

C image of MHD112D-027-NP0-RN | Main (Front Left)

MHD112D-027-NP0-RN

by Bosch Rexroth Indramat
$13,453.90 - $13,453.90
$13,453.90
$13,453.90 - $13,453.90
$13,453.90

In Stock, Ships 1 - 3 Days

The MHD112D-027-NP0-RN, a product of Bosch Rexroth's MHD series, is a high-performance servo motor known for its operational reliability. With a flange size of 192mm and a centering diameter of 130mm, this synchronous motor has thermal sensors that prevent overheating and promote high overload capability. Its unique housing design allows for natural or surface cooling, and its IP 65 rating ensures protection from dust, solid objects, and water spray. The motor has a maximum speed of 3,000 revolutions per minute, a rotor with a moment of inertia of 350x 10-4 kgm2, and employs a digital servo feedback system for position detection. With a system accuracy of ±0.5 angular minutes, the motor uses an optical measuring principle. The MHD112D-027-NP0-RN is equipped with a data memory for quick startup, and a shaft with a sealing ring and DIN 6885-1 keyway for constant direction keyed torque transmission.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Series

MHD

Model

MHD112D-027-NP0-RN

Flange Size

192mm

Centering Diameter

130mm

Built-in Thermal Sensors

Yes

Overload capability

High

Cooling Mechanism

Natural convection and surface cooling

Ingress Protection Rating

IP 65

Maximum speed

3,000 revolutions per minute

Rotor Moment of Inertia

350x 10-4 kgm2

Motor Feedback Type

Digital servo feedback

System Accuracy

±0.5 angular minutes

Data Memory

Yes

Output Shaft

Shaft with shaft sealing ring and keyway according to DIN 6885-1
