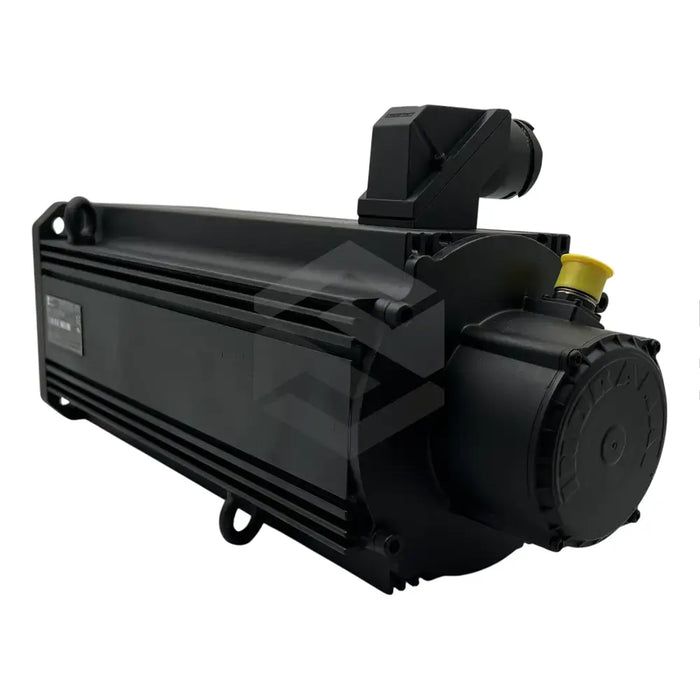

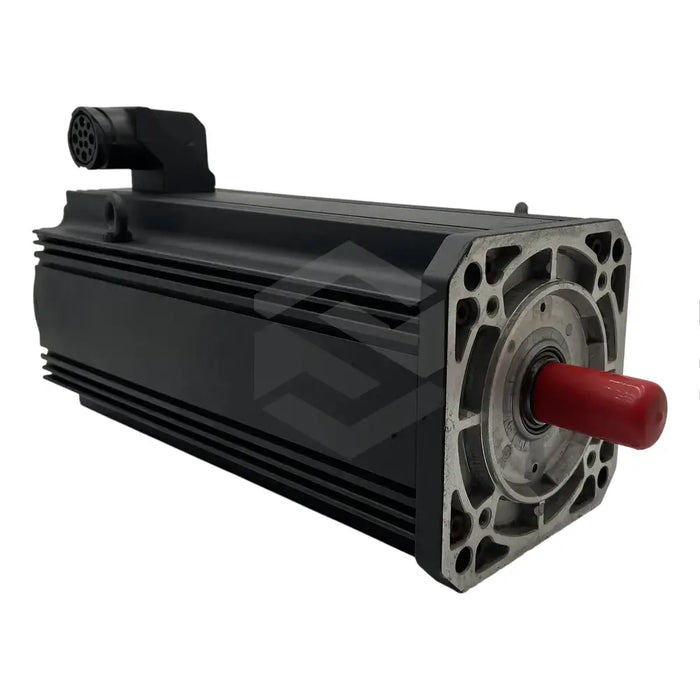

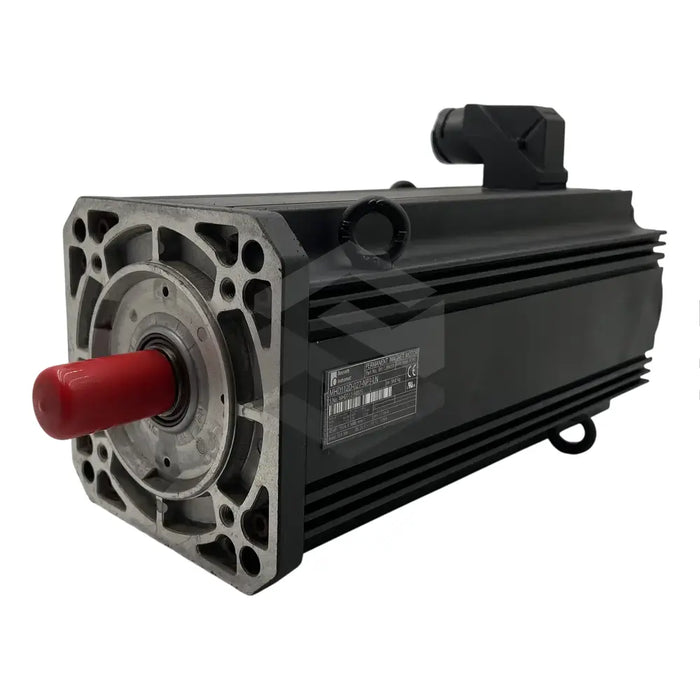

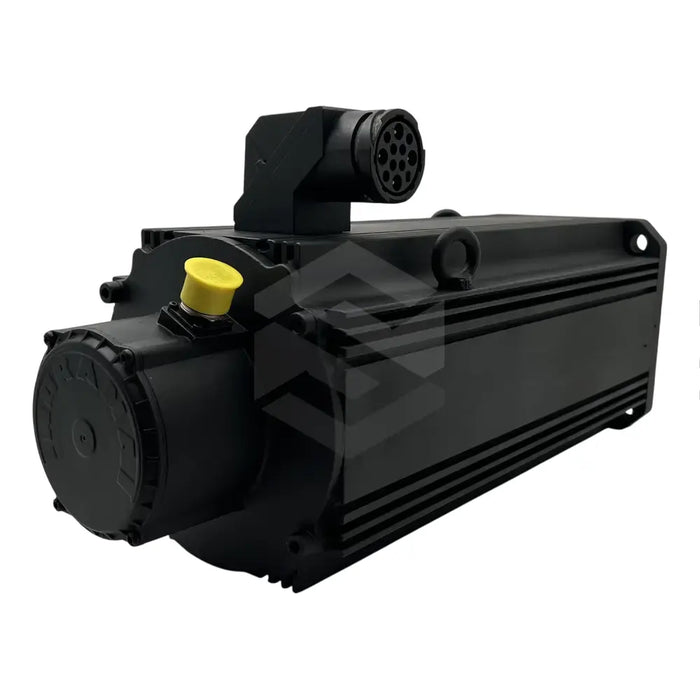

series image of a MHD112D-027-NP3-LN

MHD112D-027-NP3-LN

by Bosch Rexroth Indramat
$20,021.20 - $20,021.20
$20,021.20
$20,021.20 - $20,021.20
$20,021.20
In Stock, Ships Today
The Bosch Rexroth Indramat MHD112D-027-NP3-LN is a meticulously designed synchronous motor, with a broad range of applications across industries. The unit boasts a special housing design which facilitates effective heat dispersion via natural and surface cooling techniques. The outer motor housing is IP68 rated and is painted in non-corrosive black paint. With a natural cooling process at 100K, the motor generates a rated torque of 41.5 Nm, consuming a rated current of 20.7 A and voltage of 331 V. Key features include a sealing ring on the output shaft, a left side power connection, a winding resistance of 0.35 ohms, and a torque constant of 1.7 Nm/A at 20°C. The MHD112D model comes equipped with a 3.8 kg holding brake incorporating a torque of 70 Nm. Weighing 56 kg without attachments, the motor features a digital servo feedback and operates best between 0 to 40°C, not exceeding 1000 meters above sea level.
Technical Specifications
  • Product Model: MHD112D-027-NP3-LN
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous motor
  • Housing Design: Natural and surface cooling
  • Protection Rating: IP68
  • Housing Color: Black
  • Temperature for Rated Torque: 100 K
  • Natural Cooling Current: 20.7 A
  • Natural Cooling Voltage: 331 V
  • Output Shaft: Keys with sealing ring
  • Power Connection: Left side
  • Winding Resistance: 0.35 ohms
  • Torque Constant: 1.7 Nm/A at 20 degree centigrade
  • Holding Brake Weight: 3.8 kilograms
  • Moment of Inertia (Brake): 30 x 10-4 kgm2
  • Holding Torque: 70 Nm
  • Holding Brake Current: 1.29 A
  • Holding Brake Voltage: 24 V
  • Weight: 56 kilograms
  • Feedback: Digital Servo Motor Feedback
  • Operation Temperature: 0 to +40 degree centigrade
  • Installation Height: Up to 1000 meters above sea level
  • Voltage Constant: 154.5 V/min-1
  • Moment of Inertia (Motor): 350 x 10-4 kgm2.
