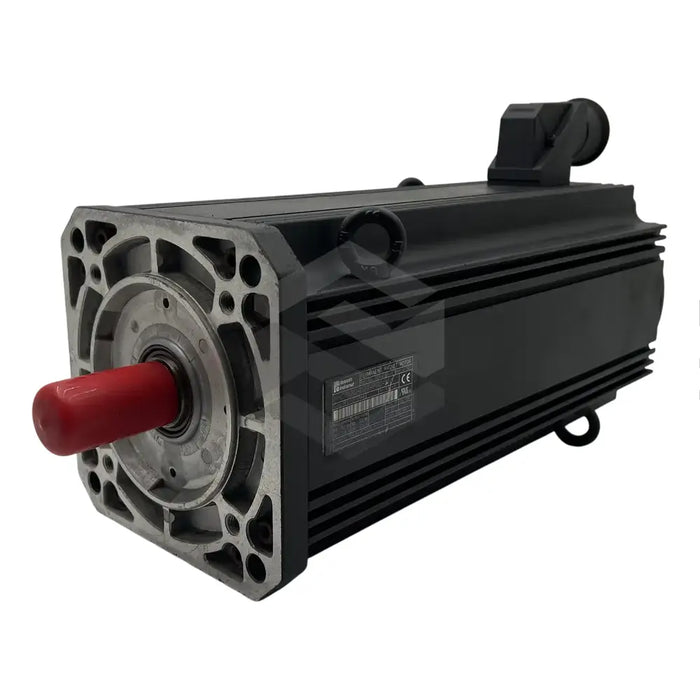

C image of MHD112D-027-PG0-BN | Main (Front Left)

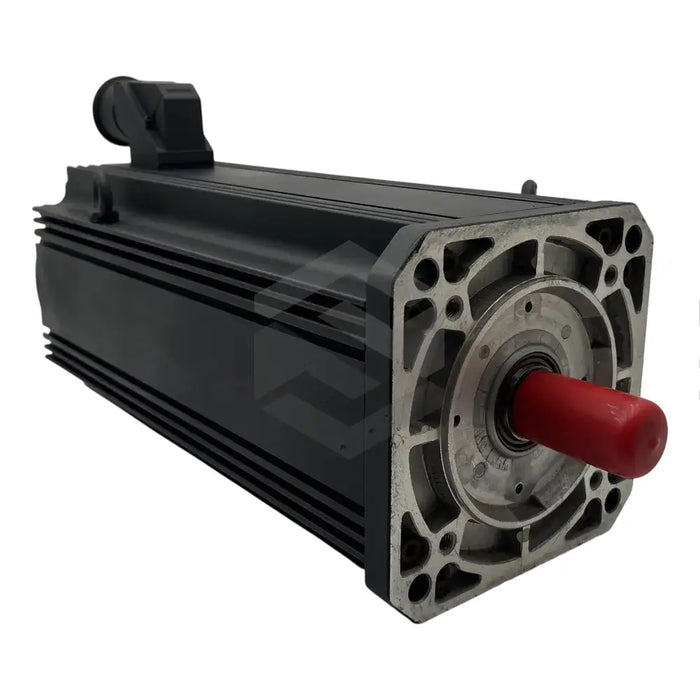

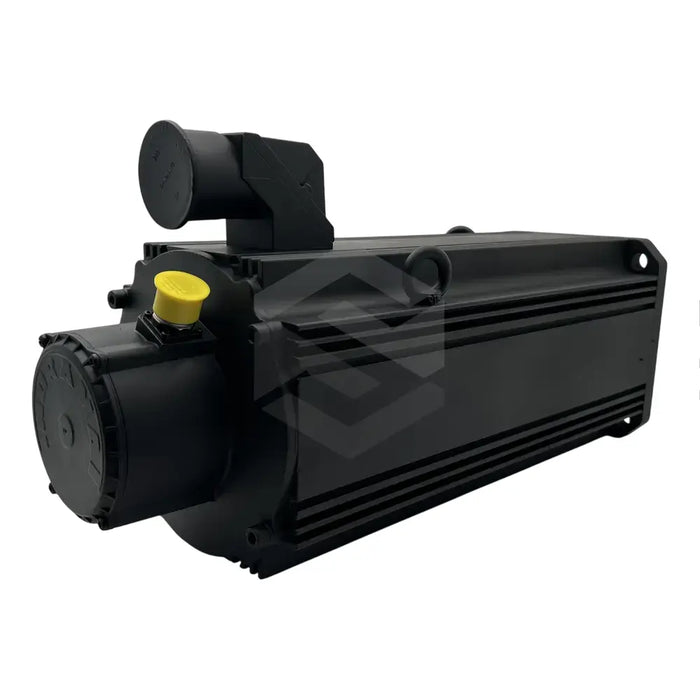

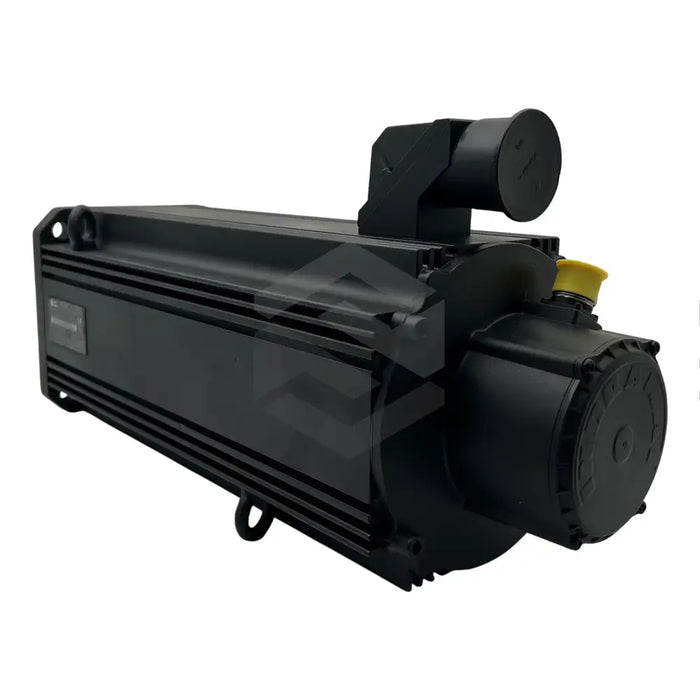

MHD112D-027-PG0-BN

by Bosch Rexroth Indramat
$4,515.17 - $46,422.73
$4,515.17
$4,515.17 - $46,422.73
$4,515.17

In Stock, Ships 1 - 3 Days

The MHD112D-027-PG0-BN is a synchronous motor produced by Bosch Rexroth Indramat. Part of the Rexroth MHD series, this motor possesses a frame size of 112 and a frame length labelled 'D', with a winding code of 027. Equipped with digital servo feedback and an integrated multiturn absolute encoder, this motor has a characteristic speed of 3000 RPM, a peak current of 142.2 Amps, winding inductivity of 5.65 mH and 0.35 Ohms winding resistance. Despite not featuring a holding brake by default, the option for one is available and the electrical power connector is positioned on side B. The IP65-rated housing is designed for natural convection cooling and an insulation class of F. The MHD112D-027-PG0-BN, which weighs 56 kilograms, can function within a temperature range of 32 to 104 degrees Fahrenheit. Bosch recommends this unit be installed and maintained by trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD Series Synchronous Motor

MHD112D-027-PG0-BN

Frame Size

112

Frame Length

D

Motor Winding Code

027

Motor Feedback

Digital Servo Feedback

Shaft Type

Plain with Sealing Ring

Holding Brake

No

Connector Side

B

Housing Cooling Method

Natural Convection

Characteristic Speed

3000 RPM

Peak Current

142.2 Amps

Winding Inductivity

5.65 mH

Winding Resistance

0.35 Ohms

Rated Speed

2000 RPM

Rated Frequency

133 Hertz

Rated Voltage

319-344 Volts

Maximum Speed

3000 RPM

Maximum Torque

187 Nm

Moment of Inertia

350 x 10-4 kg m2

Housing Rating

IP65

Insulation Class

F

Weight

56 kilograms

Storage Temperature

-4 to 176 degrees Fahrenheit

Operating Temperature

32 to 104 degrees Fahrenheit

Maximum Altitude

1000 meters above sea level.
