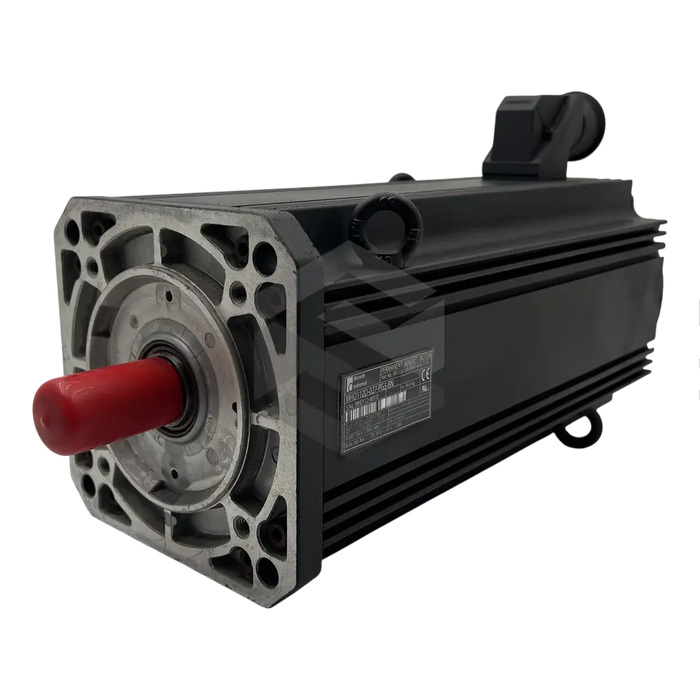

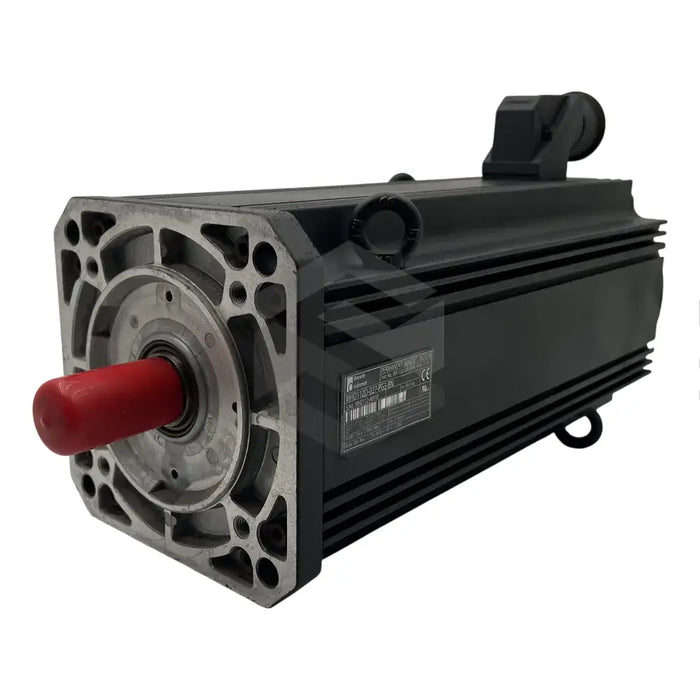

C image of MHD112D-027-PG3-BN | Main (Front Left)

MHD112D-027-PG3-BN

by Bosch Rexroth Indramat
$4,701.00 - $27,539.01
$27,539.01
$4,701.00 - $27,539.01
$27,539.01

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112D-027-PG3-BN is a synchronous motor, known for its digital servo feedback and a built-in multiturn absolute encoder. Additionally, it features an internal holding brake with a rating of 70 Nm, functioning to secure the servo axis when the motor is de-energized. Using magnetic force to operate, the holding brake is electrically released and functions on a 24 Volts DC input. This motor also possesses a plain shaft, sealed with a ring, and an IP65-rated housing designed for surface cooling or natural convection. With Class F insulation per DIN VDE 0530 and a characteristic speed of 3000 RPM, it ensures reliable functioning at ambient temperatures ranging from -20 to 80 degrees C. Its mechanical features include a weight of 56 kg and an optimal altitude limit of 1000 meters for installation. Its suitability extends to a wide range of industrial applications including machine tools, food and packaging machines, and automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD Family Synchronous Motor

Yes

Digital Servo Feedback

Yes

Integrated Multiturn Absolute Encoder

Yes

Integrated Holding Brake

Yes, 70Nm

Brake Operation

Electric

Electrical Connector Location

Side B of the motor

Motor Frame Size

112

Motor Frame Length

D

Motor Winding Code

027

Shaft Type

Plain, includes sealing ring

Housing Protection Rating

IP65

Cooling Type

Surface cooling or natural convection

Storage Temperature Range

-20 to 80 degrees Celsius

Operating Temperature Range

0 to 40 degrees Celsius

Insulation Class

F (according to DIN VDE 0530)

Characteristic Speed

3000 RPM

Rated Speed

2000 RPM

Rated Torque

27.3 Nm at 60K to 59.2 Nm at 60K/100

Weight

56 kilograms

Maximum Installation Altitude

1000 meters

Industrial Application Suitable

Yes

Brake Condition Verification

Before operation.
