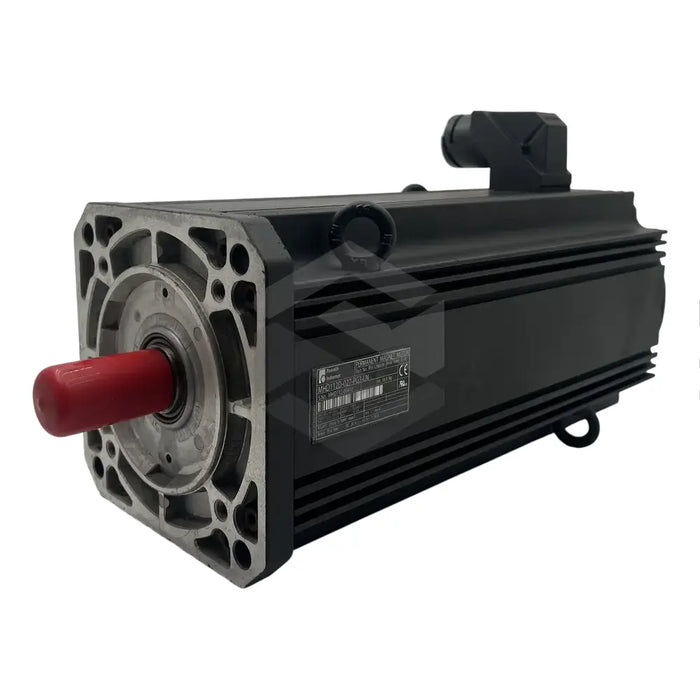

C image of MHD112D-027-PG3-LN | Main (Front Left)

MHD112D-027-PG3-LN

by Bosch Rexroth Indramat
$10,821.19 - $42,532.05
$10,821.19
$10,821.19 - $42,532.05
$10,821.19

In Stock, Ships 1 - 3 Days

The MHD112D-027-PG3-LN, a robust product from Bosch Rexroth Indramat, is a compact and lightweight synchronous motor. Weighing 56 kilograms, it is designed to fit into tight spaces and perform effectively at altitudes up to 1000 meters above sea level. The model features a plain output shaft and a power connection located on the left side of its casing. Its rated torque is 59.2 Nm at a rotation speed of 2000 RPM, with a maximum achievable speed of 3000 RPM. This motor is fitted with an absolute multidirectional encoder and a 24V, 3.8 kg holding brake capable of generating 70 Nm of torque. For optimal performance, the MHD112D-027-PG3-LN should operate within a 0 to 40 degrees Celsius temperature range. Protected against dust and liquids with an IP68 rating, the black-painted housing also provides protection against corrosion. It generates a continuous torque of 48 Nm while consuming a continuous current of 31.6 amps at standstill operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

MHD112D-027-PG3-LN

Manufacturer

Bosch Rexroth Indramat

Weight

56 kilograms

Mountable Height

0 to 1000 meters above sea level

Current Consumption

27.5 A during surface cooling

Rated Torque

59.2 Nm

Rated Rotational Speed

2000 revolutions per minute

Output Shaft

Plain

Power Connection

Left side

Maximum Speed

3000 RPM

Maximum Torque Generation

187 Nm

Winding Resistance

0.35 ohms

Torque Constant

1.7 Nm/A

Voltage Constant

154.5 V/1000min-1

Holding Brake Torque

70 Nm

Moment of Inertia

30 x 10-4 kgm2

Holding Brake Current

1.29 A

Holding Brake Voltage

24 V

Holding Brake Weight

3.8 kilograms

Encoder

Absolute multiturn

Operating Temperature

0 to 40 degrees

Enclosure Rating

IP68

Housing

RAL 9005 black paint

Continuous Torque (natural cooling)

48 Nm

Continuous Current at Standstill

31.6 A
