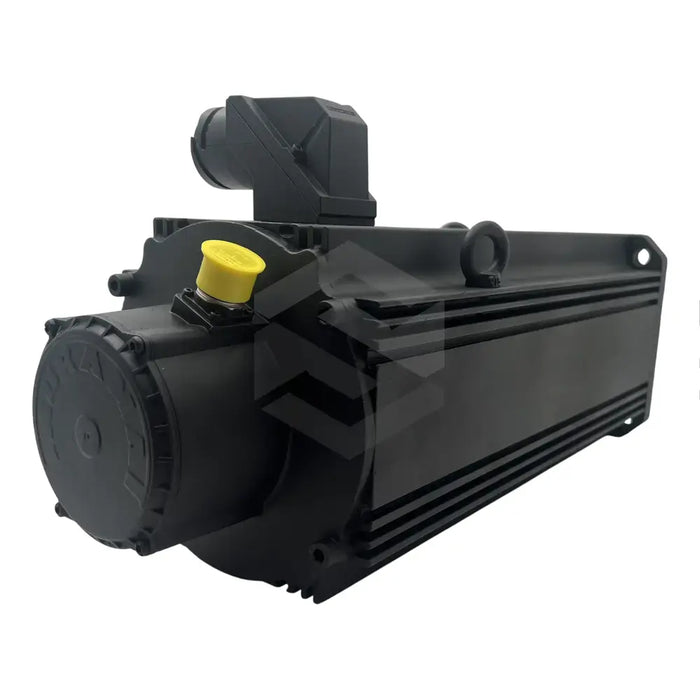

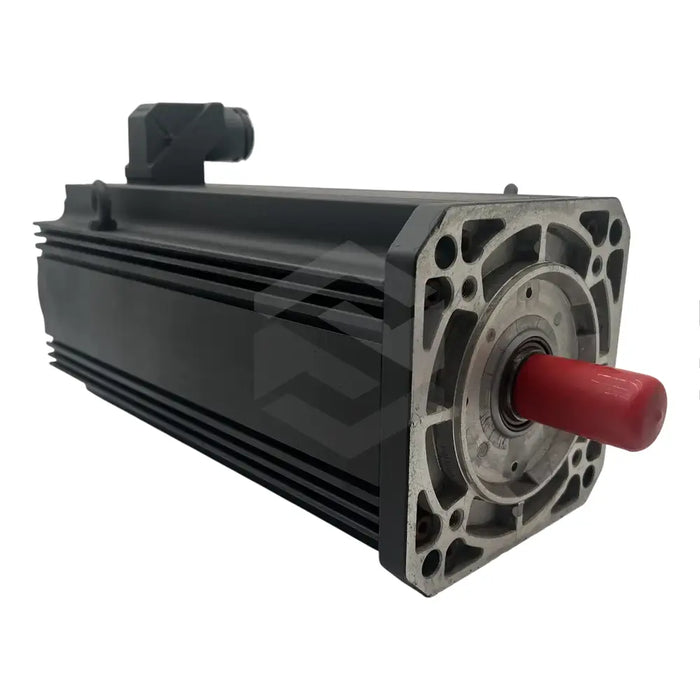

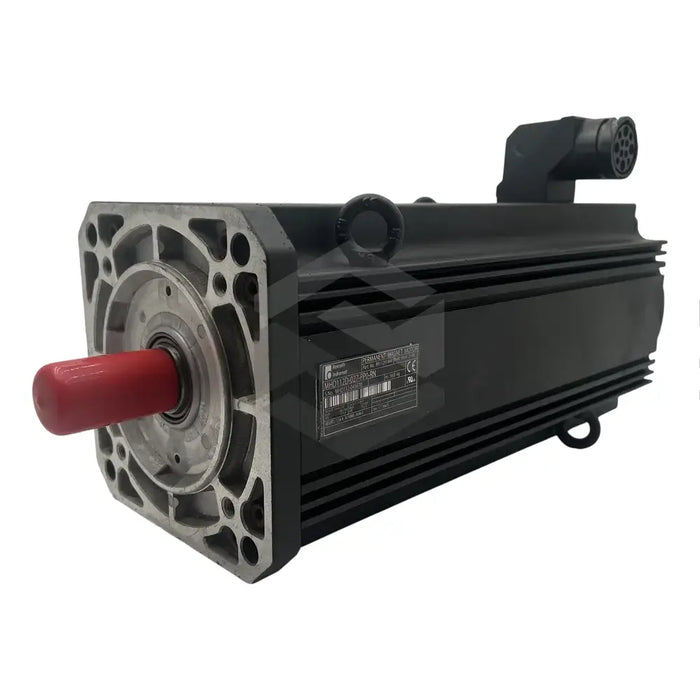

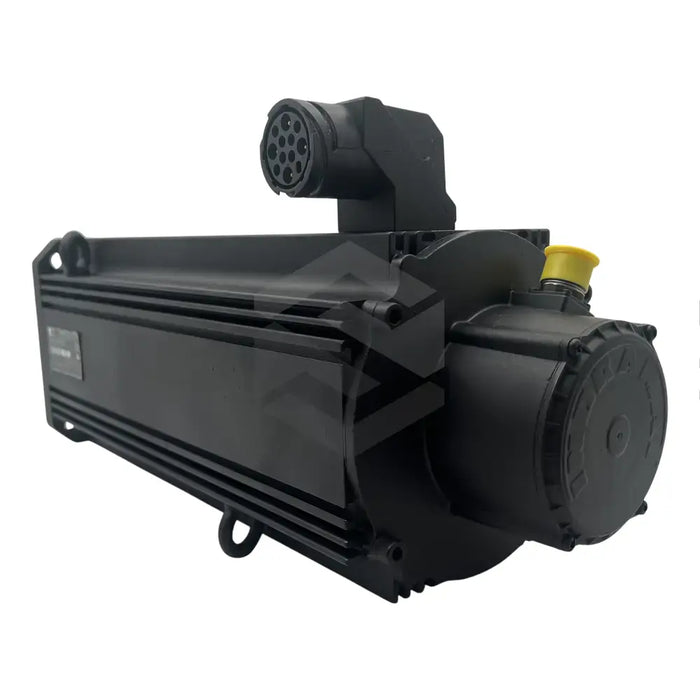

series image of MHD112D-027-PP0-RN

MHD112D-027-PP0-RN

by Bosch Rexroth Indramat
$20,068.71 - $20,068.71
$20,068.71
$20,068.71 - $20,068.71
$20,068.71
In Stock, Ships Today
The MHD112D-027-PP0-RN Synchronous Motor, produced by Bosch Rexroth Indramat, is a crucial component in various automated systems. This motor possesses an output shaft sealed with a ring and requires careful placement according to the IM V3 design to prevent damage from any lubricating fluid. It boasts IP68 certification, ensuring protection against dust and water jets, as well as F class insulation to secure its inner workings. With stats such as 15.2 power at 133 Hz rated frequency and 27.6 A rated current during surface cooling, the MHD112D Synchronous Motor delivers high performance. Its other technical features include a winding inductivity of 5.65 mH, resistivity of 0.35 ohms, and an inertial moment of 350 x 10-4 kgm2. Weighing 56 kilograms, the unit includes a right-side power connection, adaptable for both surface and natural cooling. Lastly, the device incorporates a digital servo feedback with a multi-turn absolute encoder and must operate under specific environmental conditions for optimal performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Category: Synchronous Motor
  • Model Number: MHD112D-027-PP0-RN
  • Motor Design: IM V3
  • Protection Certification: IP68
  • Insulation Class: F Class
  • Power Output (Surface Cooling): 15.2
  • Rated Current: 27.6 A
  • Rated Frequency: 133 Hz
  • Winding Inductivity: 5.65 mH
  • Winding Resistivity: 0.35 ohms
  • Moment of Inertia: 350 x 10-4 kgm2
  • Voltage Constant: 154.5 V/1000min-1
  • Torque Constant: 1.7 Nm/A
  • Standstill Torque: 57 Nm
  • Continuous Current (Natural Cooling): 40.2 A
  • Power Connection: Right Side
  • Weight: 56 kilograms
  • Thermal Time Constant (Surface Cooling): 40 minutes
  • Thermal Time Constant (Natural Cooling): 90 minutes
  • Servo Feedback: Digital with Integrated Multiturn Absolute Encoder.
