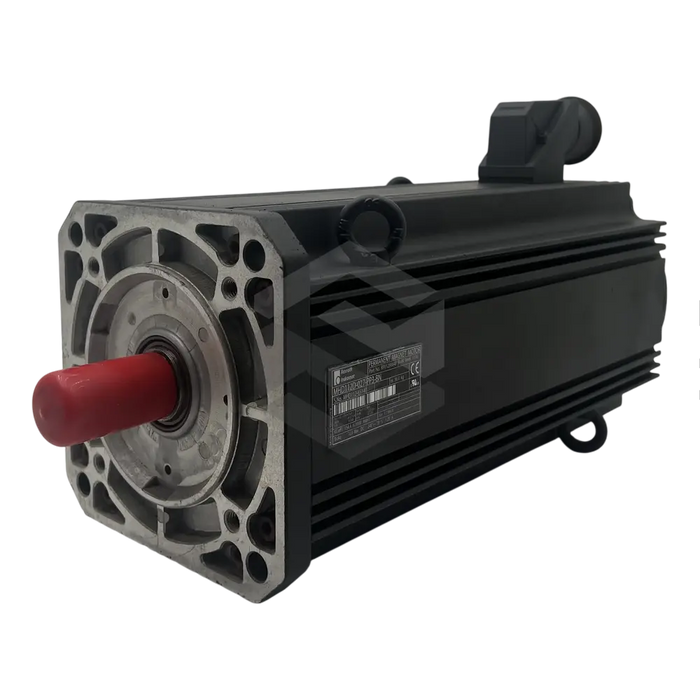

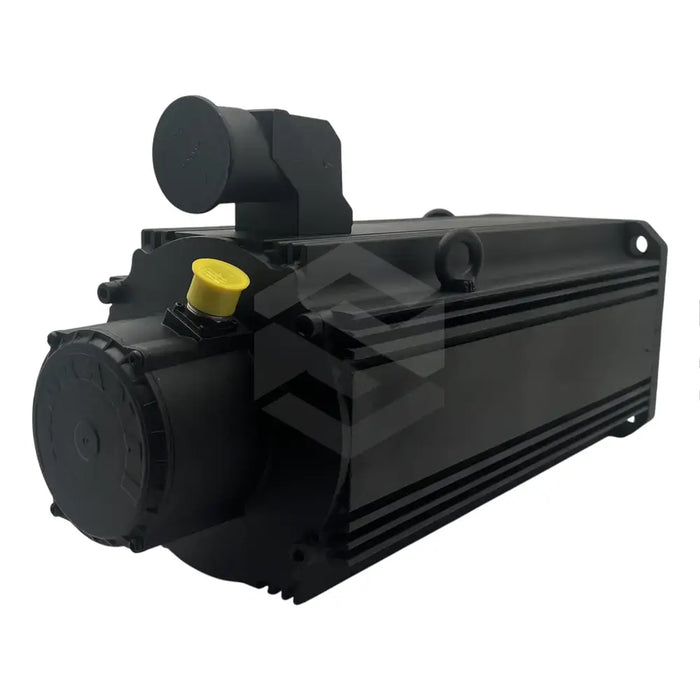

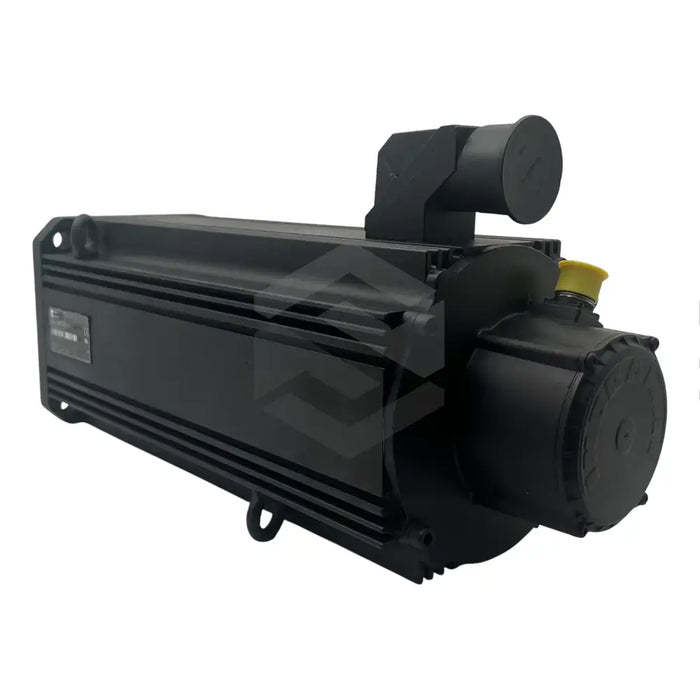

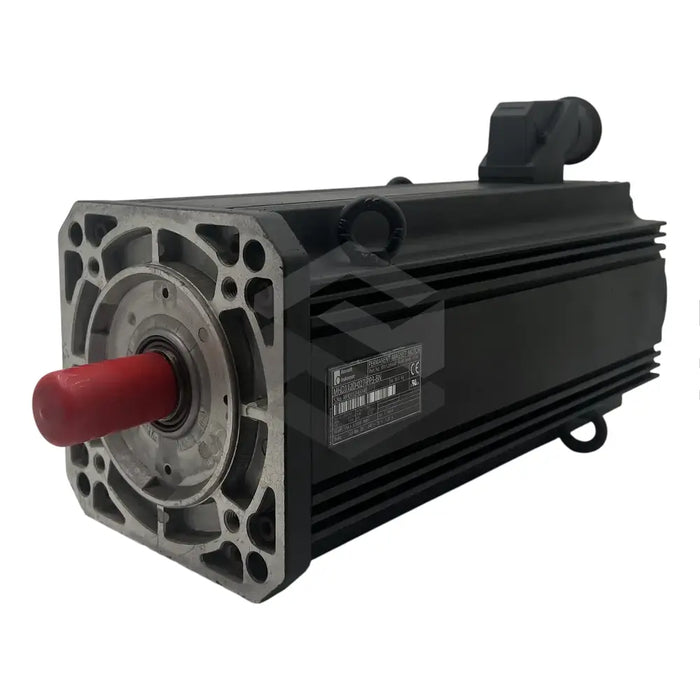

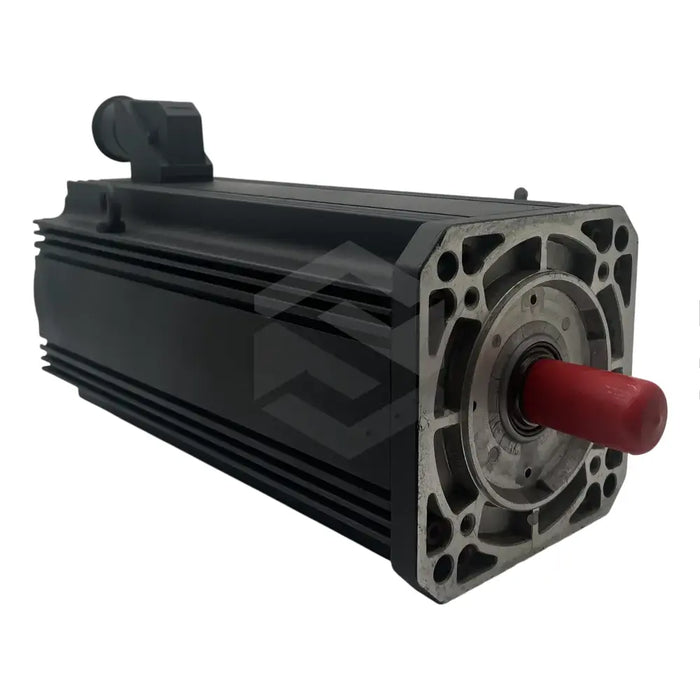

MHD112D-027-PP3-BN

Original price $32,715.20 - Original price $32,715.20
Original price
$32,715.20
$32,715.20 - $32,715.20
Current price $32,715.20
In Stock, Shipping Varies
Request a quote
The MHD112D-027-PP3-BN, a prime offering from Bosch Rexroth Indramat, is part of the MHD Synchronous Servo Motor series known for its high torque density, remarkable safety, and cost-effectiveness. The motor features dual naturally cooled variants and a third surface-cooled option for superior power. Operating at an optimal speed of 2,000 RPM, the motor produces torque and performance levels specific to each variant. It's capable of running up to 3,000 RPM. Furthermore, the IP65-compliant MHD112D-027-PP3-BN motor necessitates no maintenance due to its brushless design and use of grease-lubricated bearings. Integrated with an advanced multiturn absolute encoder, the device provides superior, cost-effective digital servo feedback. Benefiting from a DIN 6885-1 keyway incorporated into the driveshaft, it also ensures easy interfacing. A 70Nm holding brake offers added security and convenience.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Category: Servo Motor
  • Product Series: MHD Synchronous Servo Motor
  • Model Number: MHD112D-027-PP3-BN
  • Cooling Variants: 60K, 100K, Surface cooled with air blower
  • Operating Speed: 2000 RPM
  • Torque for 60K: 27.3Nm
  • Performance for 60K: 6.9kW
  • Torque for 100K: 41.5Nm
  • Performance for 100K: 11.3kW
  • Torque for Surface Cooled: 59.2Nm
  • Performance for Surface Cooled: 15.2kW
  • Maximum Operating Speed: 3000 RPM
  • Protection Degree: IP65
  • Maintenance Requirement: Maintenance-free
  • Construction: Brushless
  • Bearings: Grease-lubricated
  • Feedback: Digital Servo Feedback
  • Encoder Type: Multiturn absolute encoder
  • Encoder Capacity: 4096 revolutions
  • Driveshaft: DIN 6885-1 keyway
  • Holding Brake: 70Nm
