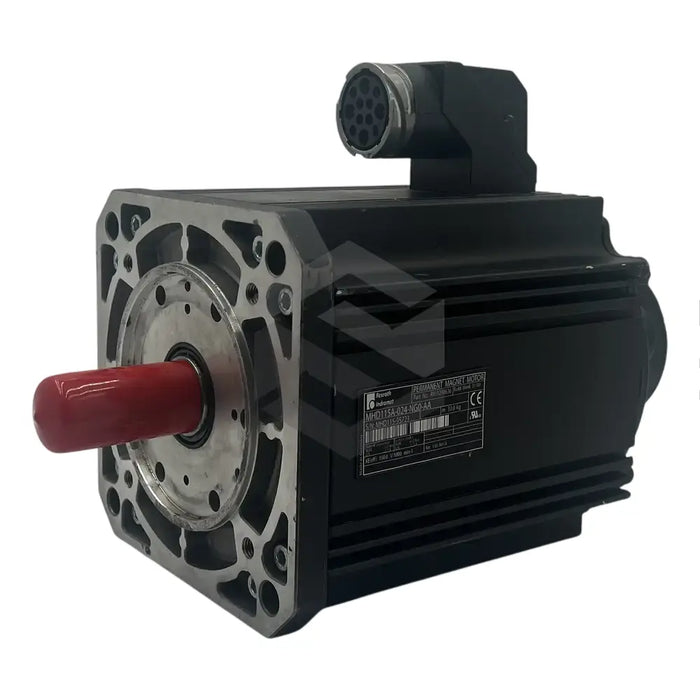

C image of MHD115A-024-NG0-AA | Main (Front Left)

MHD115A-024-NG0-AA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD115A-024-NG0-AA is a high-quality synchronous motor, used for automated operations across various industries. Designed to function within a temperature range of 0 to 40 degrees Celsius, it requires adherence to parameters and environmental conditions outlined in the user manual. Enhanced with digital servo feedback, the motor yields a constant torque of 48 Nm and utilizes a continuous surface cooling current of 32.6 A. It produces 6.4 kW of power during natural cooling at 100 K temperature, operating at a rated frequency of 133 Hz and a thermal time constant of 60 minutes. The MHD115A comes with an IP65 protection-certified black housing and features a power connector on its A-Side. With an 8.6 mH winding inductivity and a 1.65 Nm/A torque constant at 20 degrees Celsius, it has a 65.0 x 10-4 kgm2 moment of inertia, generating 110 Nm maximum theoretical torque at 98 A. Additional details include a lubrication-protecting sealing ring, friction-locked shaft-hub connection, and a rated speed of 2000 RPM with a 24.9 Nm torque during natural cooling at 60 K temperature.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model Number

MHD115A-024-NG0-AA

Useable Temperature Range

0 to +40 degrees Celsius

Continuous Torque

48 Nm

Continuous Current

32.6 A

Power During Natural Cooling

6.4 kW

Rated Frequency

133 Hz

Thermal Time Constant

60 minutes

Power Connection Location

A-side of enclosure

Housing Paint Color

Black

Protection Certification

IP65

Winding Inductivity

8.6 mH

Torque Constant

1.65 Nm/A at 20 degrees Celsius

Moment of Inertia

65.0 x 10-4 kgm2

Maximum Current Usage

98 A

Maximum Theoretical Torque

110 Nm

Output Shaft Type

Smooth-running plain with friction-locked shaft-hub connection

Rated Speed

2000 revolutions per minute

Torque during Natural Cooling

24.9 Nm
