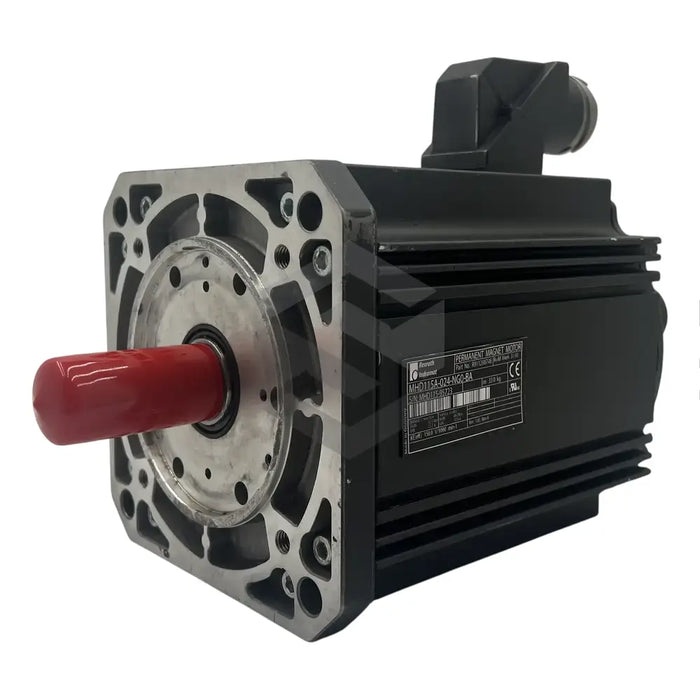

C image of MHD115A-024-NG0-BA | Main (Front Left)

MHD115A-024-NG0-BA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

The MHD115A-024-NG0-BA, a product of Bosch Rexroth Indramat, is an energy-efficient synchronous motor suitable for numerous industrial applications. Operating at a rated speed of 2000 RPM, it offers a torque of 37.5 Nm and consumes 18 A current in a surface cooling mode at 60/100 K. It's low-weight (30 kg), capable of generating a maximum torque of 110 Nm. In natural cooling at 60 K, its power, voltage and thermal time constant are notably 3.8 kW, 309 volts and 60 minutes, respectively. The motor features a plain output shaft with a sealing ring and is built to withstand radial and axial forces. It consistently delivers 36.5 Nm torque at a 25 A current during natural convection at 100 k with impressive precision. Its winding inductivity and resistance are 8.6 mH and 0.66 ohms, respectively. Ensuring durability, it comes in a painted black housing fit for surface and natural convection, with an IP65 protection level and an insulation class of F.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Motors

Model

MHD115A-024-NG0-BA

Rated Speed

2000 RPM

Rated Torque

37.5 Nm

Rated Current (surface cooling mode at 60/100 K)

18 A

Maximum Theoretical Torque

110 Nm

Weight

30 kg

Rated Power (natural cooling at 60 K)

3.8 kW

Rated Voltage

309 volts

Thermal Time Constant

60 minutes

Output Shaft Type

Plain with sealing ring

Rated Torque (at natural convection 100 k)

36.5 Nm

Constant Current (at natural convection 100 k)

25 A

Winding Inductivity

8.6 mH

Winding Resistance

0.66 ohms

Housing Color

Black

Convective Suitability

Surface and Natural

Protection Level

IP65

Insulation Class

F

Feedback Mechanism

Digital Servo Feedback
