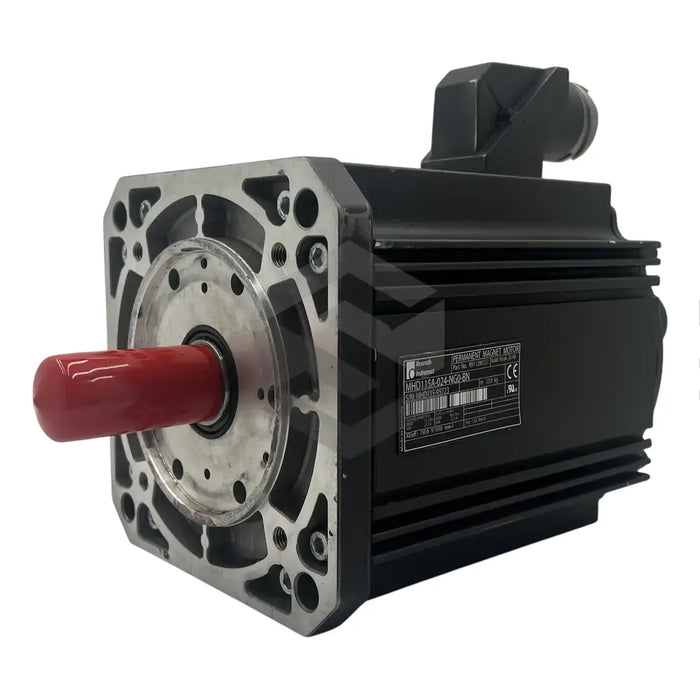

C image of MHD115A-024-NG0-BN | Main (Front Left)

MHD115A-024-NG0-BN

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

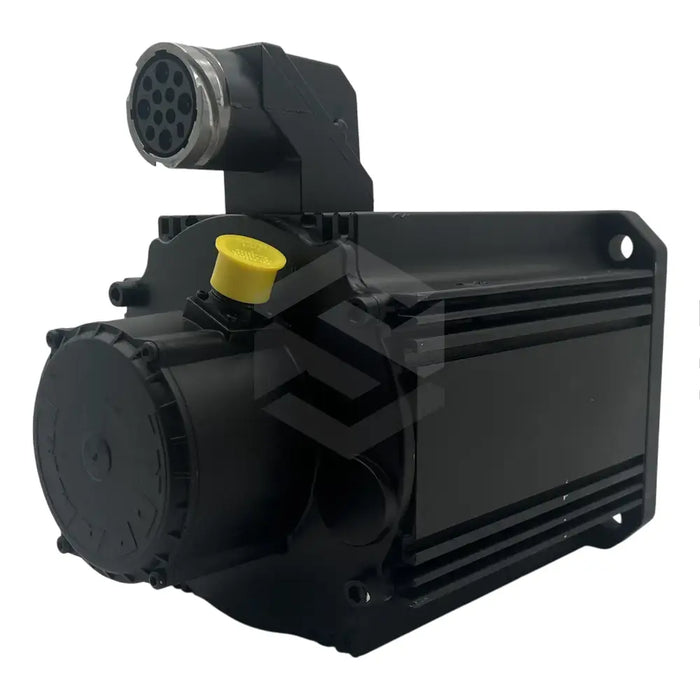

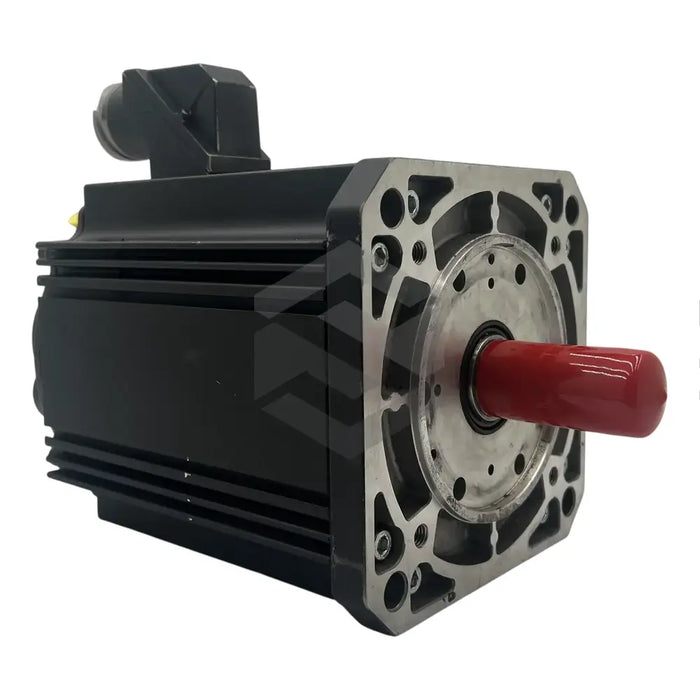

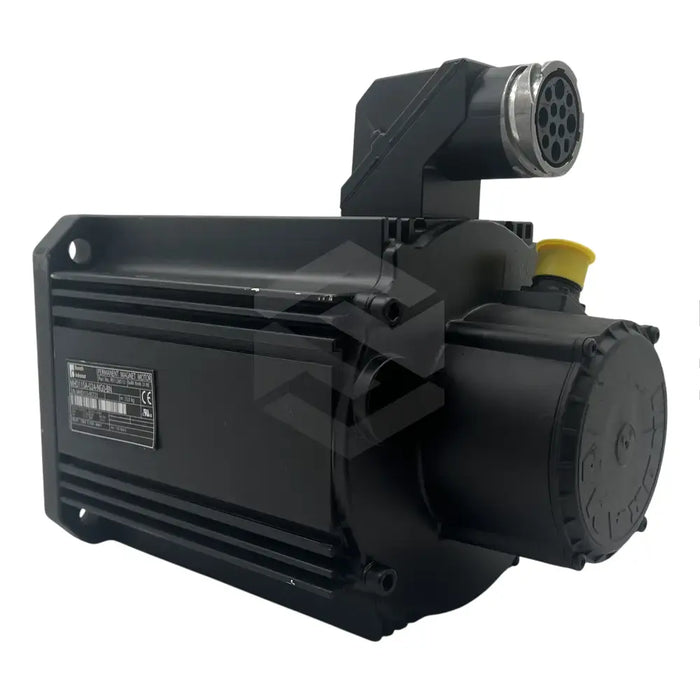

The MHD115A-024-NG0-BN is a synchronous servo motor by Bosch Rexroth Indramat. With a rating speed of 2000 RPM and a maximum speed of 4000 RPM, this motor has a frame size of 115, a length of A, and a 024 winding code. The housing design allows for either natural convection or liquid cooling, suitable for low and high motor loads respectively. At standstill, continuous torque is 32 Nm and 60.8 Nm, and continuous current is 21.7 Amps and 41.2 Amps, with natural convection and liquid cooling, respectively. This motor can deliver a peak current of 98 Amps. It weighs around 30 kg, can mount via flange holes, and is rated IP65 for dust protection. Notably, it lacks a holding brake but offers optional purchases. Its features include digital servo feedback, a plain main shaft sealed with a ring, and power connector on side B. Its flange size, centering diameter, and shaft diameter measures 192 mm, 180 mm, and 38mm respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Servo Motor

Model

MHD115A-024-NG0-BN

Motor Frame Size

115

Motor Frame Length

A

Winding Code

024

Cooling Type

Natural Convection or Liquid Cooling

Rated Speed

2000 RPM

Maximum Speed

4000 RPM

Continuous Torque at Standstill (Natural Convection)

32 Nm

Continuous Torque at Standstill (Liquid Cooling)

60.8 Nm

Continuous Current at Standstill (Natural Convection)

21.7 Amps

Continuous Current at Standstill (Liquid Cooling)

41.2 Amps

Peak Current

98 Amps

Rated Torque (Natural Convection at 60K overtemperature)

14.9 Nm

Rated Current (Natural Convection at 60K overtemperature)

7.1 Amps

Power Output (Natural Convection at 60K overtemperature)

3.8 kilowatts

Rated Voltage (Natural Convection at 60K overtemperature)

309 Volts

Rated Frequency (Natural Convection at 60K overtemperature)

133 Hertz

Weight

30 kilograms

Holding Brake

Not Available (Optional)

Feedback System

Digital Servo Feedback

Shaft Type

Plain Main Shaft with Sealing Ring

Power Connector Location

Side B

Mounting Type

Through Holes on Flange

Flange Size

192 millimeters

Centering Diameter

180 millimeters

Shaft Diameter

38 millimeters

Housing Protection

IP65 (Protected from Dust Ingress)
