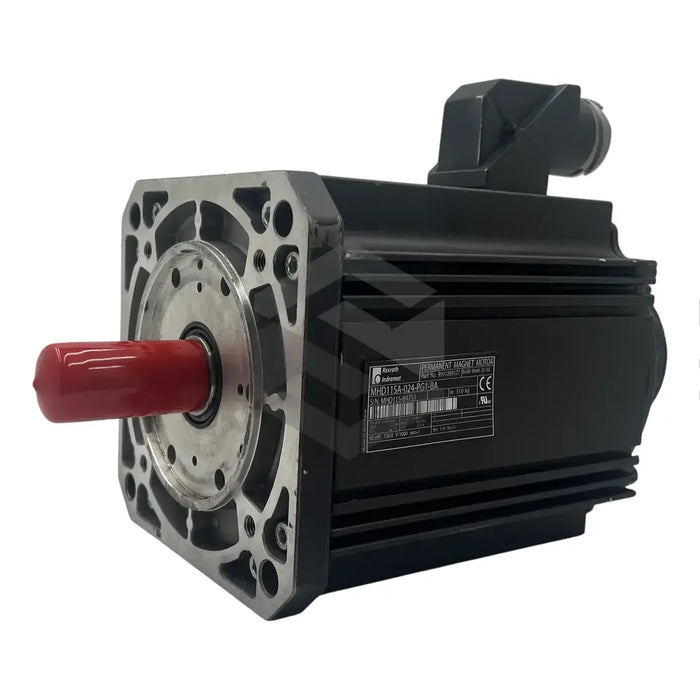

C image of MHD115A-024-PG1-BA | Main (Front Left)

MHD115A-024-PG1-BA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

The MHD115A-024-PG1-BA, crafted by Bosch Rexroth Indramat, is an industrial servo motor in the MDD synchronous motor series. Cooling for this model is facilitated via natural convection and surface cooling, suitable for low and high torque requirements respectively. The output behavior varies with the cooling method: for instance, under natural convection at 60K overtemperature, it generates constant standstill torque and current of 32 Nm and 21.7 Amps accordingly. For surface cooling, these values increase to 48 Nm and 32.6 Amps. The motor's peak speed is 4000 RPM while its operational speed is 2000 RPM. The motor itself weighs 30 kg, and its 24-Volt brake weighs an additional 3.8 kg, generating 70 Nm holding torque. Digital servo feedback is supported utilizing an integrated encoder. This flange-mounted unit has a power connector at side B and the main shaft is sealed. Transport instructions are provided on the packaging.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Industrial Servo Motor

Product Family

MDD Synchronous Motors

Cooling Method

Natural Convection, Surface Cooling

Continuous Torque at Standstill (60K overtemperature)

32 Nm

Continuous Current at Standstill (60K overtemperature)

21.7 Amps

Continuous Torque at Standstill (100K overtemperature)

36.5 Nm

Continuous Current at Standstill (100K overtemperature)

25 Amps

Continuous Torque at Standstill (Surface Cooling)

48 Nm

Continuous Current at Standstill (Surface Cooling)

32.6 Amps

Peak Current

98 Amps

Rated Motor Speed

2000 RPM

Peak Motor Speed

4000 RPM

Motor Mass

30 kilograms

Motor Holding Brake Mass

3.8 kilograms

Brake Holding Torque

70 Nm

Brake Operating Voltage

24 Volts DC

Brake Connect Time

53 milliseconds

Motor Disconnect Time

97 milliseconds

Installation

Flange-Mounted (192mm flange)

Digital Servo Feedback Support

Available

Main Shaft

Plain (with Sealing Ring)

Power Connector Location

Side B
