MHD115A-024-PG1-RA

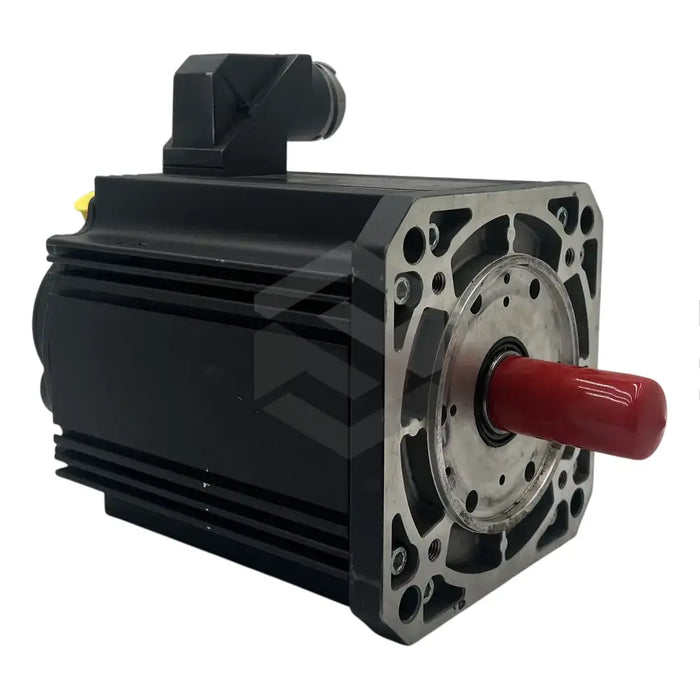

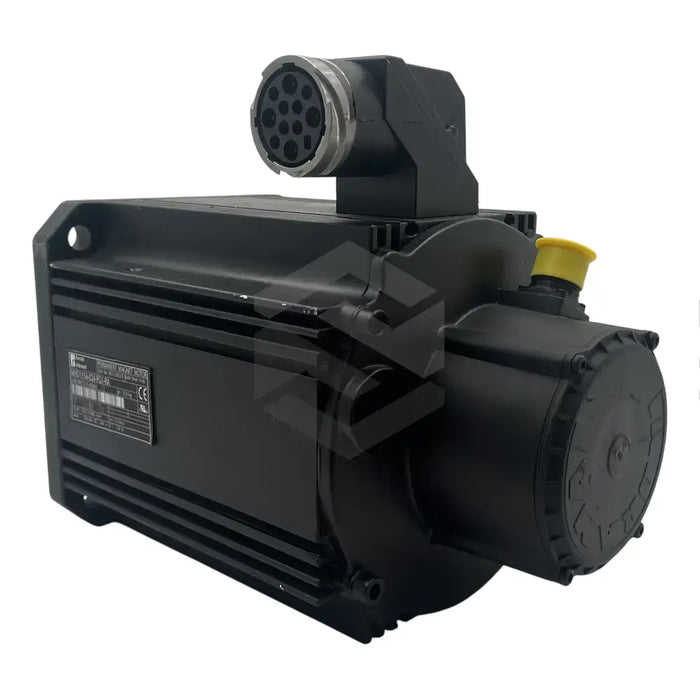

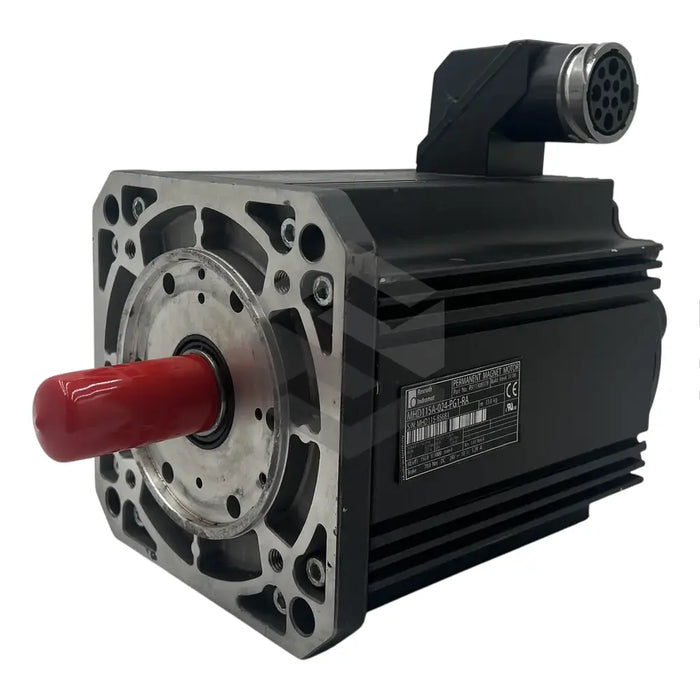

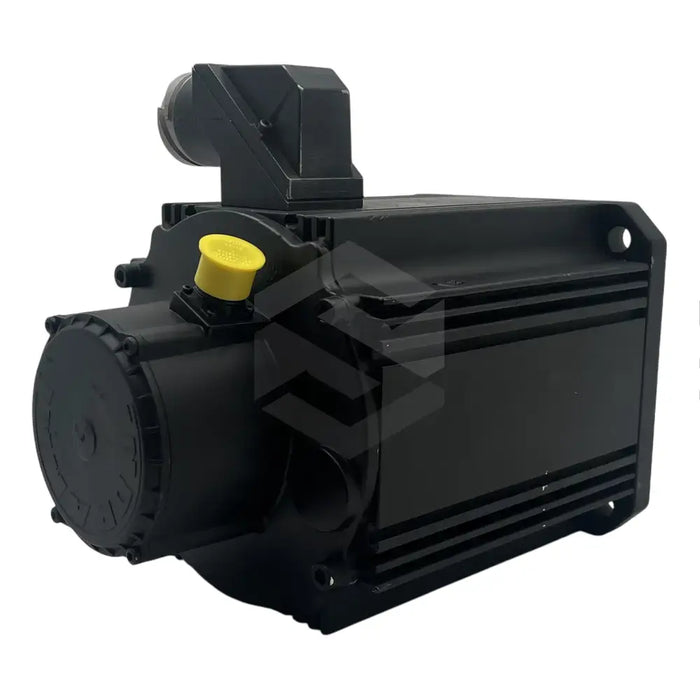

Produced by Bosch Rexroth Indramat, the MHD115A-024-PG1-RA is an industrial synchronous motor designed for commercial and industrial applications. When combined with drive controllers, this motor is versatile for various applications including handling, general automation, food machines, and machine tools. Measuring 370 millimeters in length with a motor flange size of 192 millimeters, it has a centering diameter and shaft diameter of 180 millimeters and 38 millimeters respectively. The plain shaft includes a seal to prevent oil leakage and protect its bearings from contaminants, offering a protection rating of IP65. The motor features a built-in multiturn encoder and supports digital servo feedback. Its brake specifications command a holding torque of 70 Nm, rated voltage of 24 Volts, and current of 1.29 Amps. With a power connector positioned on the right, it can utilise natural convection and surface cooling methods. It operates between 0 to 40 degrees Celsius and stores in -20 to 80 degrees Celsius environments. The setup height shouldn't exceed 1000 meters. Shipping weight is 30 kilograms, with its weight combined with the holding brake weighing 33.8 kilograms.
