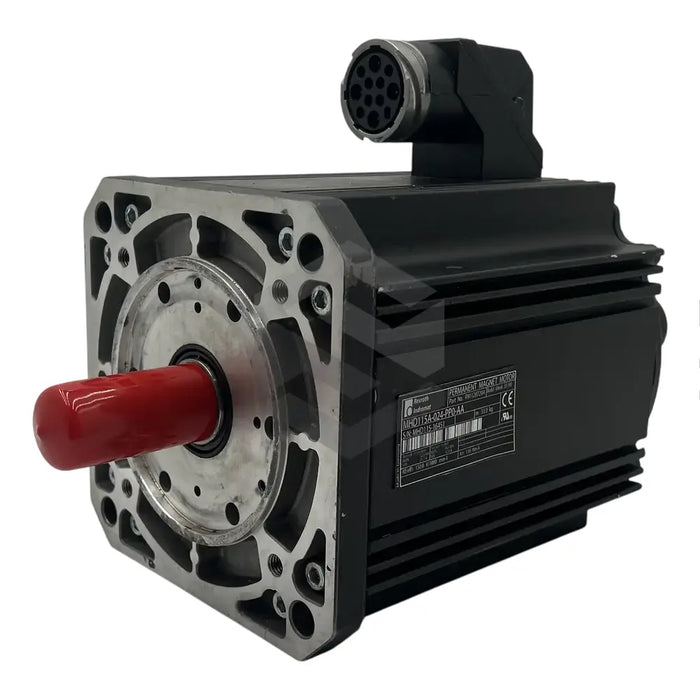

C image of MHD115A-024-PP0-AA | Main (Front Left)

MHD115A-024-PP0-AA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

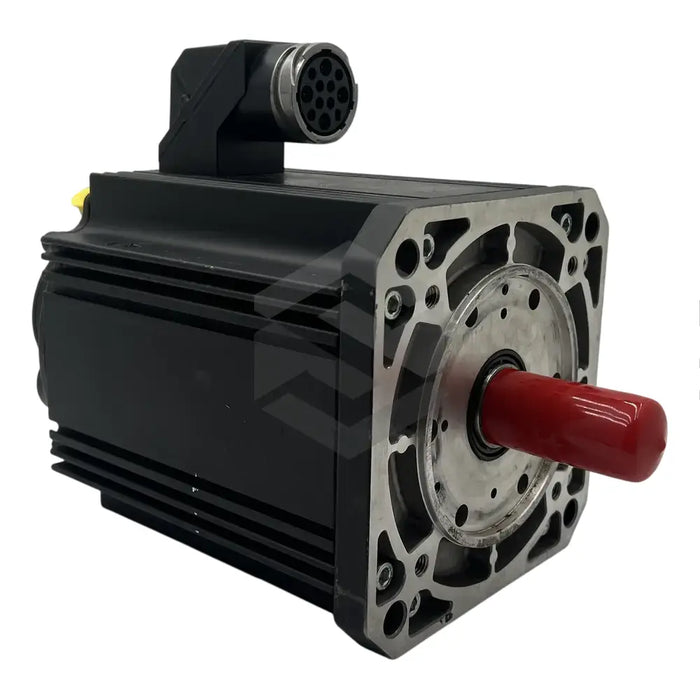

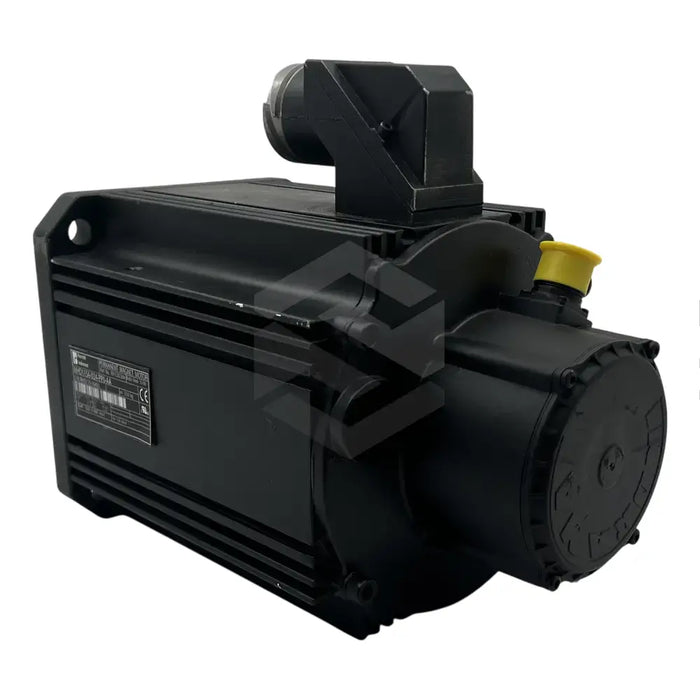

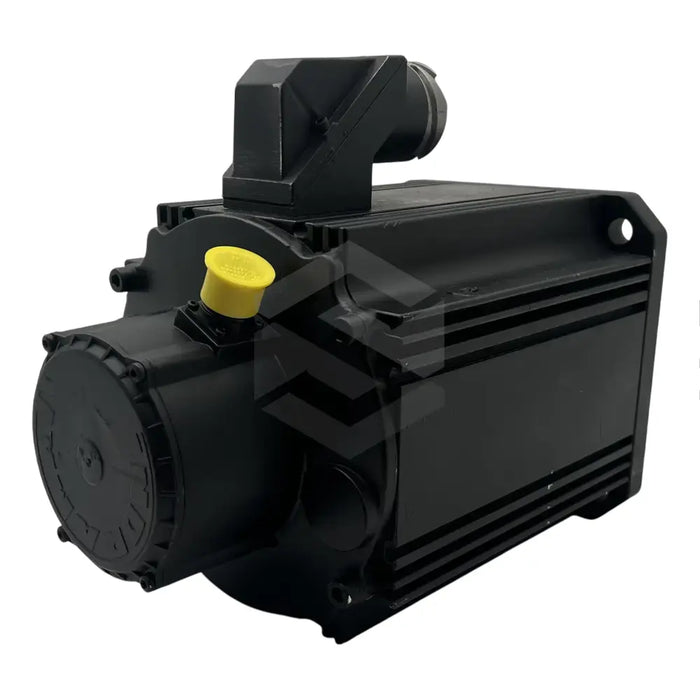

The MHD115A-024-PP0-AA is a synchronous servo motor built by Bosch Rexroth Indramat with a frame size of 115 and length, denoted in 'A'. Its housing measures 370 millimeters, anchored by holes on its 192mm flange. The motor shaft, fitted with a key and sealing ring, prevents rotation and protects bearings. While it's delivered without a holding brake, a 70 Nm brake may be requested upon purchase. The power connector's output direction is specified at point of orders and situated on side A of the motor. Equipped with an integrated multiturn absolute encoder, it supports digital servo feedback. Depending on the load, cooling is either through surface cooling (forced air cooling) or natural convention. Operating temperatures range from 0-40 degrees Celsius, with a rated and maximum speed of 2000 RPM and 4000 RPM respectively. The motor, weighing roughly 30 kilograms, varies in torque and current output based on operating conditions and cooling method.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

MHD115A-024-PP0-AA Servo motor

Frame Size

115

Frame Length

A

Motor Housing Length

370 millimeters

Mount Type

192 millimeter flange

Shaft Features

Key and Sealing Ring

Holding Brake

Not Included (70 Nm brake optional at ordering)

Power Connector Position

Side A

Encoder Type

Integrated Multiturn Absolute Encoder

Feedback Type

Digital Servo Feedback

Cooling Methods

Surface cooling or Natural Convection

Operating Temperature Range

0-40 degrees Celsius

Rated Speed

2000 RPM

Maximum Speed

4000 RPM

Weight

30 kilograms
