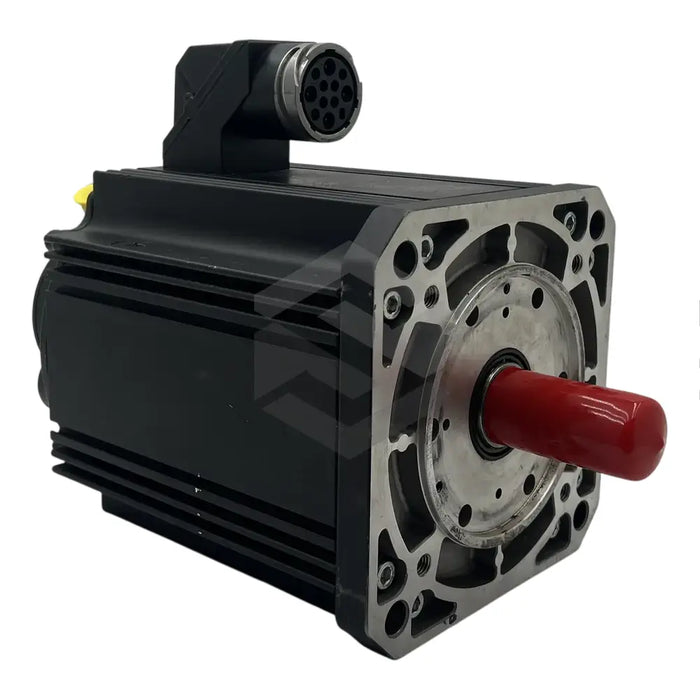

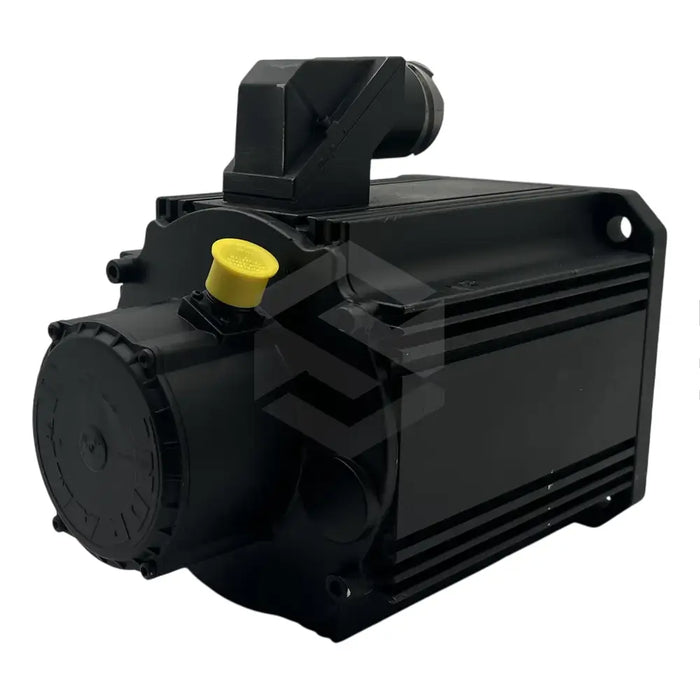

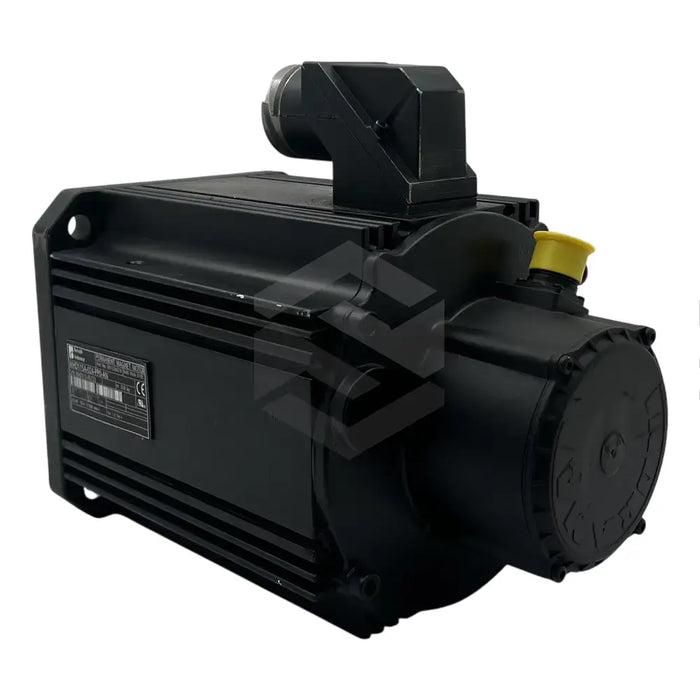

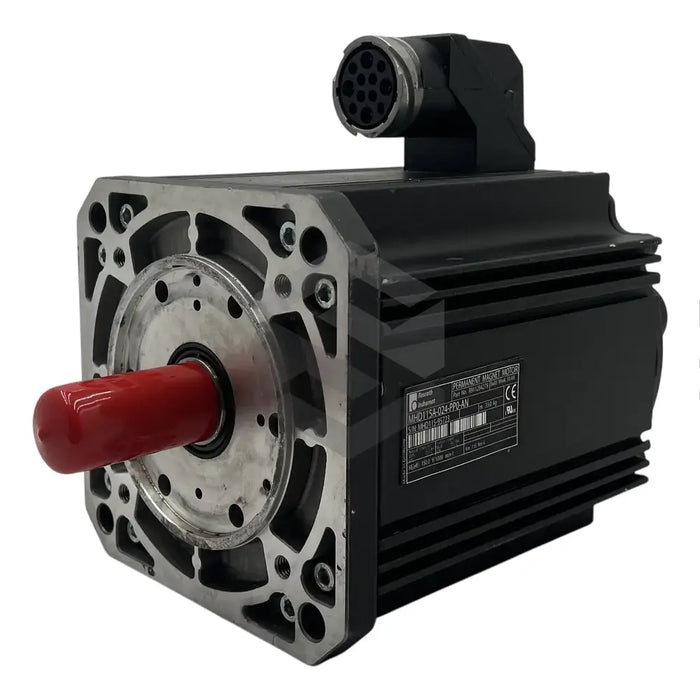

MHD115A-024-PP0-AN
The MHD115A-024-PP0-AN, a state-of-the-art industrial motor, is produced by Bosch Rexroth Indramat. As members of the MHD series of synchronous motors, these units feature a maintenance-free design that lessens operation complexity and lowers ownership cost. Their IP65 protection rating permits operation even under adverse conditions. The motor's features include overload protection, high dynamics and continuous start-stop operation. It consists of a rotor, stator, shaft, bearings, encoder and, optionally, a holding brake. The motor measures 370 millimeters in length and has a centering diameter of 180 millimeters. It is mounted via 14-millimeter holes on the motor flange and uses digital servo feedback. No holding brake is available. Four power connection options, including side A, which this model has, are offered. It includes liquid cooling capabilities, with specific performance parameters detailed for the use of liquid coolants. Use is approved for specific environmental conditions.
