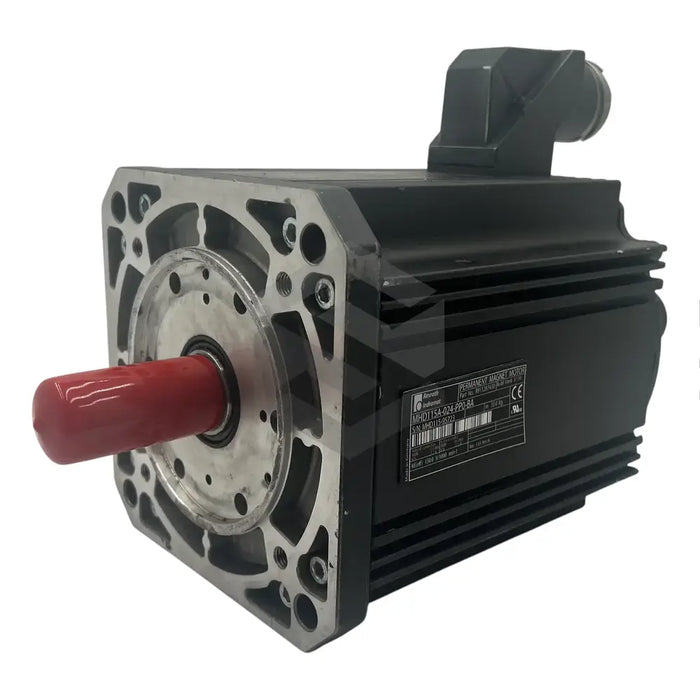

C image of MHD115A-024-PP0-BA | Main (Front Left)

MHD115A-024-PP0-BA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

The MHD115A-024-PP0-BA, a servo motor produced by Bosch Rexroth Indramat, is rated for 2000 RPM with a peak speed of 4000 RPM. It handles heat through either natural convection or surface cooling, with varying voltage, power, current, and torque ratings depending on the cooling method and overtemperature. A distinctive feature of this synchronous motor is its ability to synchronize its speed to the frequency of the input current. Essential components include a drive controller, a power cable, and an integrated encoder for digital servo feedback. The shaft of the motor has a seal, which degrades over time and requires regular inspections and maintenance. The motor doesn't have a holding brake and boasts a centering diameter of 180mm. Only qualified personnel should install and operate this motor and affiliated equipment.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD115A-024-PP0-BA

Type

Servo Motor

Characteristic Motor Speed

2000 RPM

Peak Motor Speed

4000 RPM

Cooling Method

Natural Convection / Surface Cooling

Rated Frequency (Surface Cooling)

133 Hertz

Rated Voltage (Surface Cooling)

338 Volts

Rated Power (Surface Cooling)

9.7 Kilowatts

Rated Current (Surface Cooling)

18 Amps

Rated Torque (Surface Cooling)

37.5 Nm

Rated Frequency (Natural Convection)

133 Hertz

Rated Voltage (Natural Convection)

309 Volts

Rated Power (Natural Convection)

3.8 Kilowatts

Rated Current (Natural Convection)

7.1 Amps

Rated Torque (Natural Convection)

14.9 Nm

Rated Frequency (100K Overtemperature)

133 Hertz

Rated Voltage (100K Overtemperature)

320 Volts

Rated Power (100K Overtemperature)

6.4 Kilowatts

Rated Current (100K Overtemperature)

12.1 Amps

Rated Torque (100K Overtemperature)

24.9 Nm

Drive Controller

Included

Motor Type

Synchronous

Power Connector Location

Side B of Housing

Features

Shaft with Key, Integrated Encoder, Digital Servo Feedback, No Holding Brake, Periodic Inspection Required for Seal Replacement

Centering Diameter

180 mm

Installation Requirement

Only Qualified Personnel
