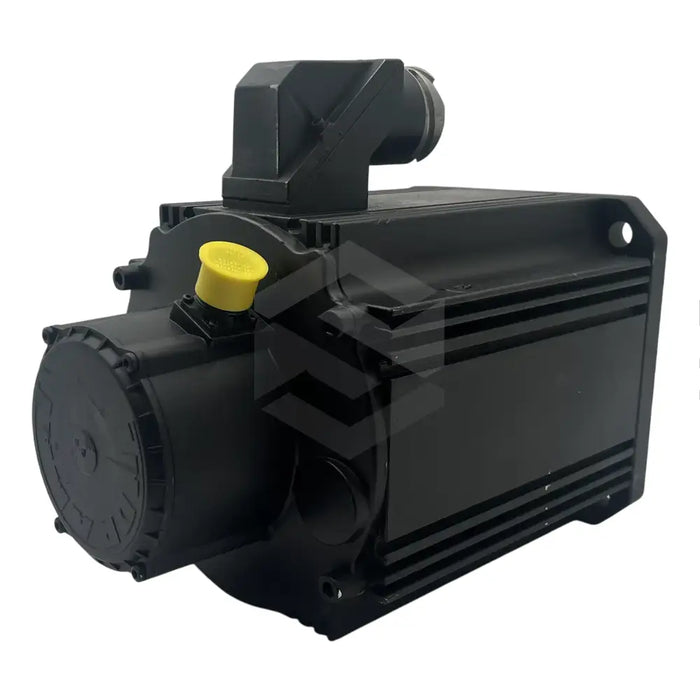

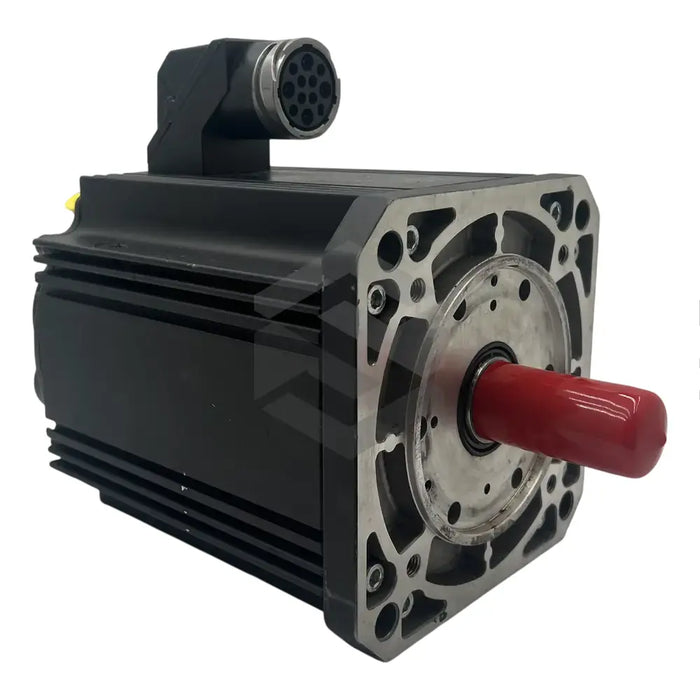

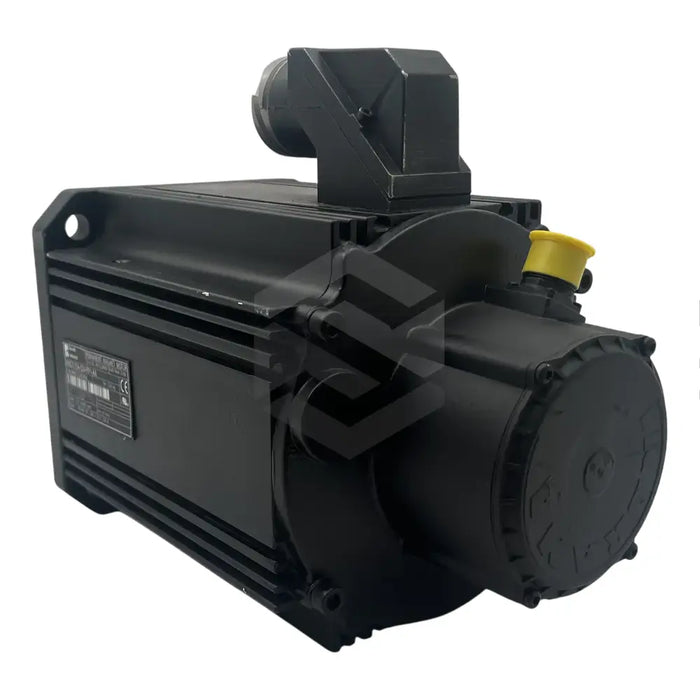

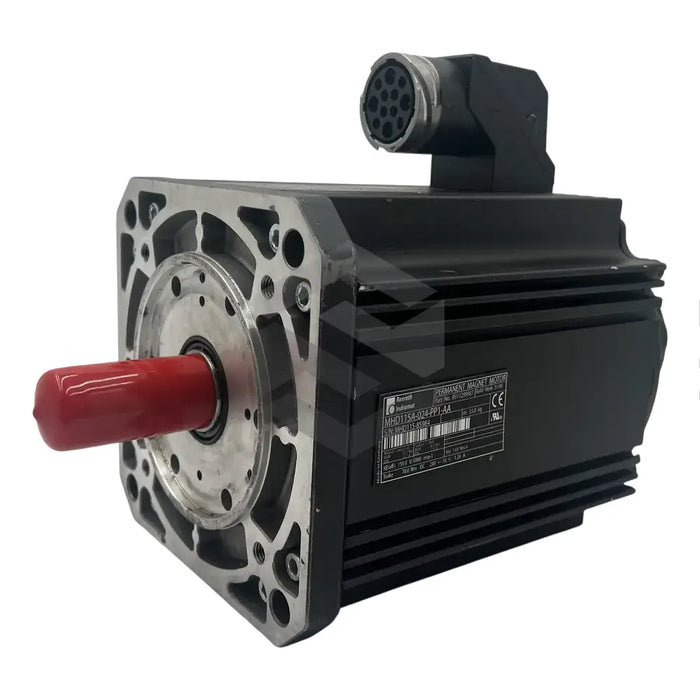

C image of MHD115A-024-PP1-AA | Main (Front Left)

MHD115A-024-PP1-AA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

The MHD115A-024-PP1-AA is a synchronous motor model produced by Bosch Rexroth Indramat, a globally recognized authority in the field of industrial hardware production. Known for exceptional efficiency and design, this model boasts a digital servo feedback system and a built-in multiturn absolute encoder, ensuring accurate motor speed control. It is notable for a winding resistance of 0.66 ohms, operating temperature between 0 to +40 degrees Celsius and a winding inductivity of 8.6 mH. This motor can be mounted up to 1000 meters above sea level and features a resilient protective coating, with an IP65 protection grade, ensuring durability in challenging conditions. Key specifications include a 14.9 Nm rated torque, 309-volt rated voltage, and a 2000 revolutions per minute rotating speed in natural cooling mode at 60 K. Additional features include highly customizable electrical connections, a 70 Nm holding brake, and dual natural and surface cooling mechanisms.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD115A-024-PP1-AA

Feedback System

Digital Servo Feedback

Built-In Encoder

Multiturn Absolute Encoder

Winding Resistance

0.66 ohms

Operating Temperature

0 to +40 degrees Celsius

Winding Inductivity

8.6 mH

Maximum Elevation for Operation

1000 meters

Protection

IP65 grade

Rated Torque

14.9 Nm

Rated Voltage

309 volts

Rated Rotating Speed

2000 RPM in natural cooling mode at 60 K

Insulation Level

F

Maximum Speed

4000 RPM

Maximum Torque

110 Nm

Power Connector Location

A-side of motor

Cooling System

Natural and surface cooling

Thermal Time Constant

30 or 60 minutes

Included Holding Brake

Yes

Holding Brake Torque

70 Nm

Holding Brake Rated Current

1.29 A

Weight of Holding Brake

3.8 kilos

Holding Brake Connection Time

53 milliseconds

Holding Brake Disconnection Time

97 milliseconds.
