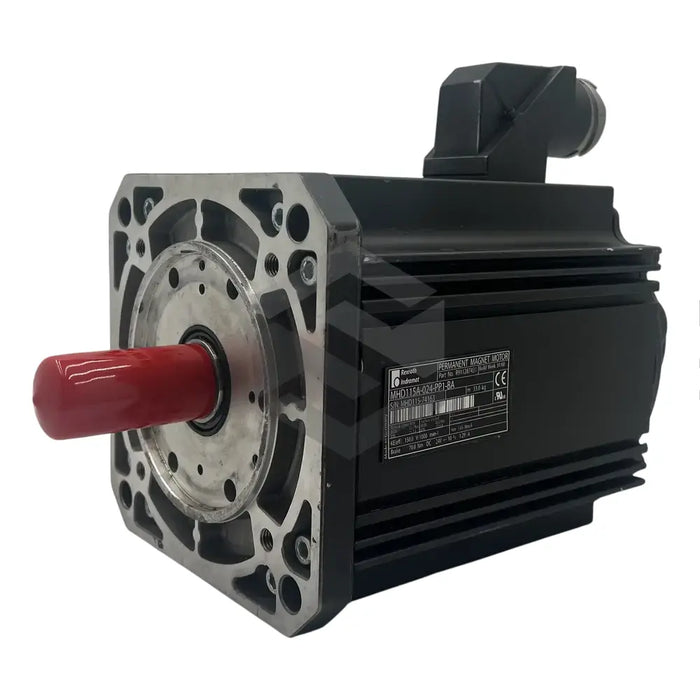

C image of MHD115A-024-PP1-BA | Main (Front Left)

MHD115A-024-PP1-BA

by Bosch Rexroth Indramat
$11,652.08 - $11,652.08
$11,652.08
$11,652.08 - $11,652.08
$11,652.08

In Stock, Ships 1 - 3 Days

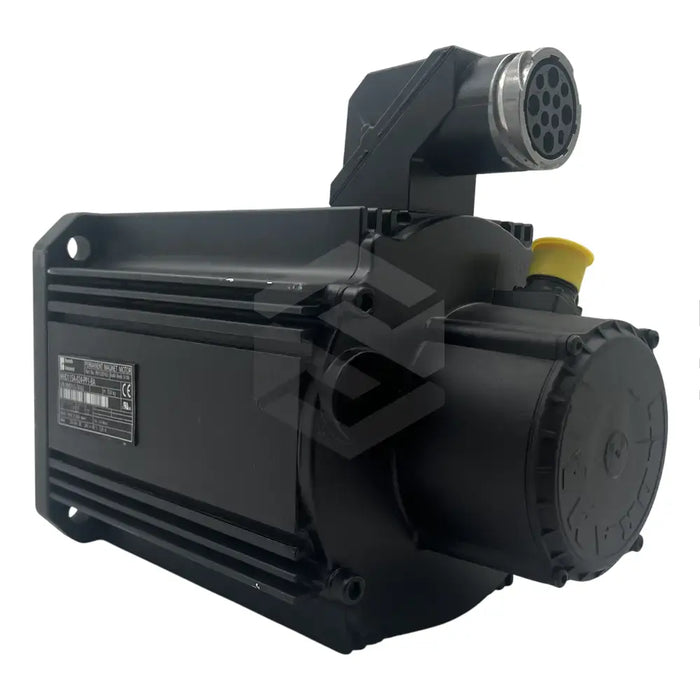

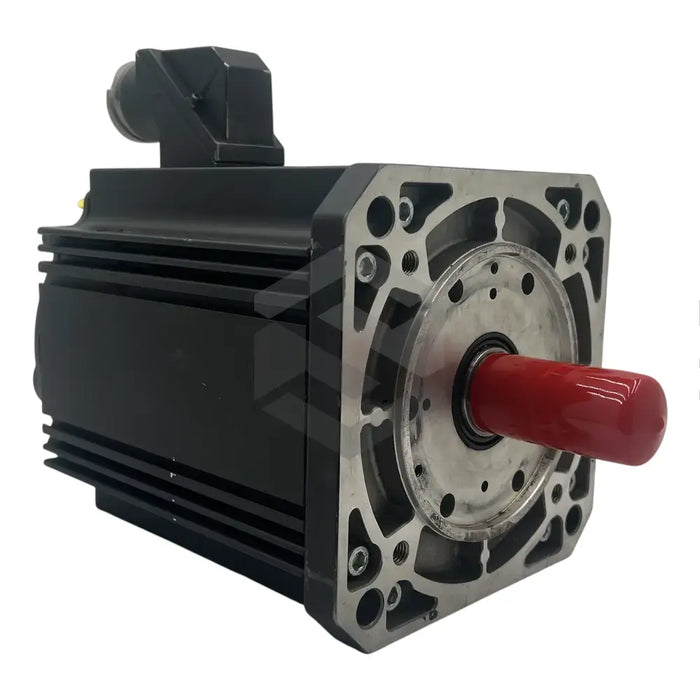

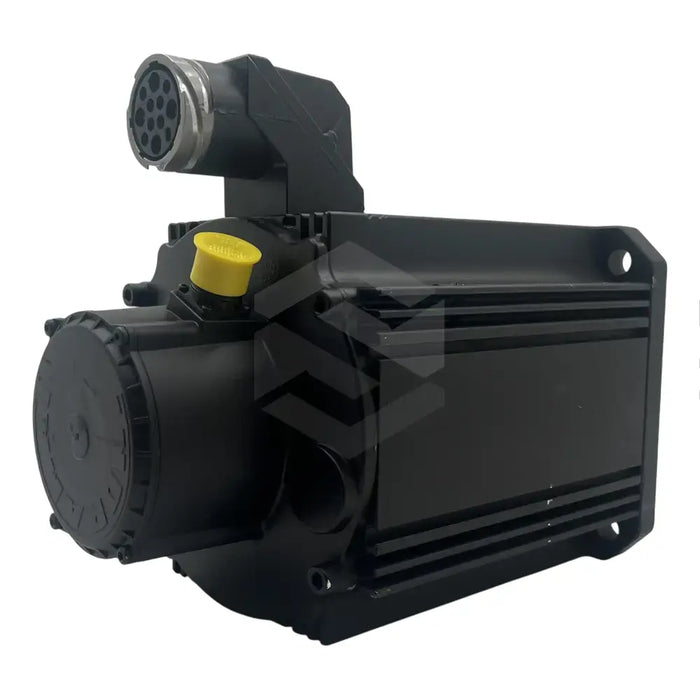

The Bosch Rexroth Indramat MHD115A-024-PP1-BA is a highly efficient, long-lasting synchronous motor. It is uniquely designed to prevent lubricant penetration with a sealing ring on the output shaft. The model maintains a consistent temperature using both natural and surface cooling mechanisms, producing a continuous torque of 48.0 Nm, and operates at a rated speed of 2000 RPM when surface-cooled at 60/100 K temperature. Its performance excels at a climatic range of 0 to +40 degrees Celsius, with relocation limits from -20 to +80 degrees Celsius. With a noteworthy weight-to-performance ratio, this model is versatile for various applications, featuring a 3.8 kg holding brake with 70 Nm torque. Additionally, this 30 kg motor is equipped with a digital servo feedback encoder and a winding inductivity of 8.6 mH, and has a maximum speed of 4000 RPM with a theoretical torque of 110 Nm.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD115A-024-PP1-BA

Product Type

Synchronous Motors

Continuous Torque (60/100 K temperature)

48.0 Nm

Rated Rotational Speed

2000 revolutions per minute

Cooling Method

Natural and Surface Cooling

Rated Power (100 K temperature)

6.4 kW

Rated Torque (100 K temperature)

24.9 Nm

Rated Current Consumption (100 K temperature)

12.1 A

Operating Conditions

0 to +40 degrees Celsius

Relocation Conditions

-20 to +80 degrees Celsius

Weight-to-Performance Ratio

Not specified

Application Range

Broad

Holding Brake Weight

3.8 kilos

Holding Torque

70 Nm

Holding Brake Rated Current

1.29 A

Holding Brake Rated Voltage

24 V

Torque Constant

1.65 Nm/A

Winding Resistance

0.66 ohms

Motor Weight

30 kilos

Feedback System

Digital Servo Feedback with integrated multiturn absolute encoder

Winding Inductivity

8.6 mH

Maximum Rotational Speed

4000 revolutions per minute

Theoretical Torque

110 Nm
