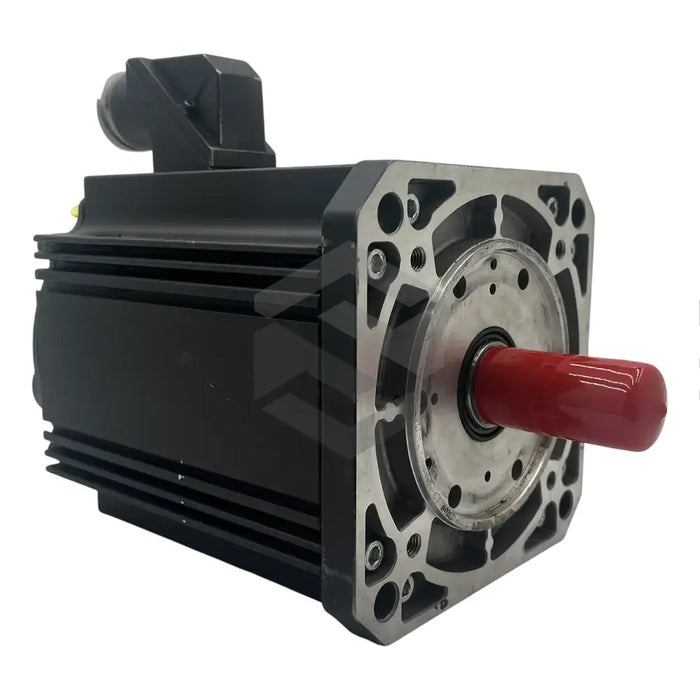

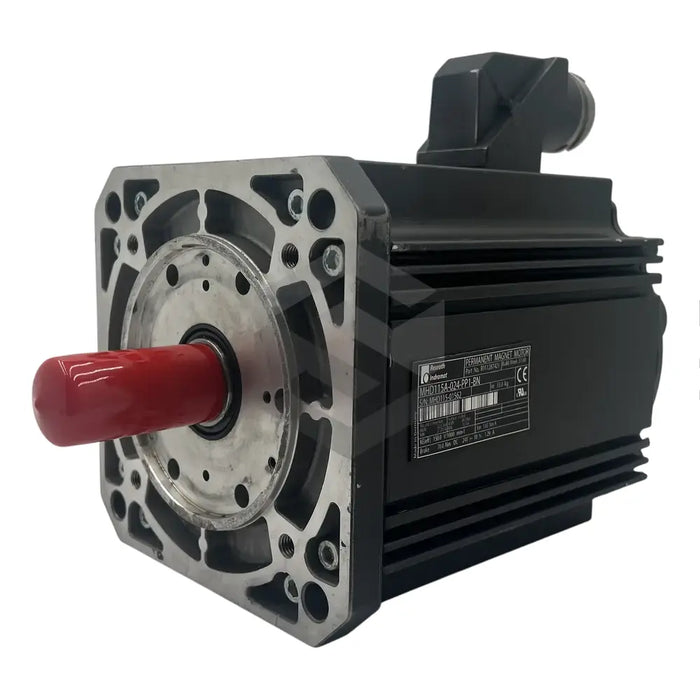

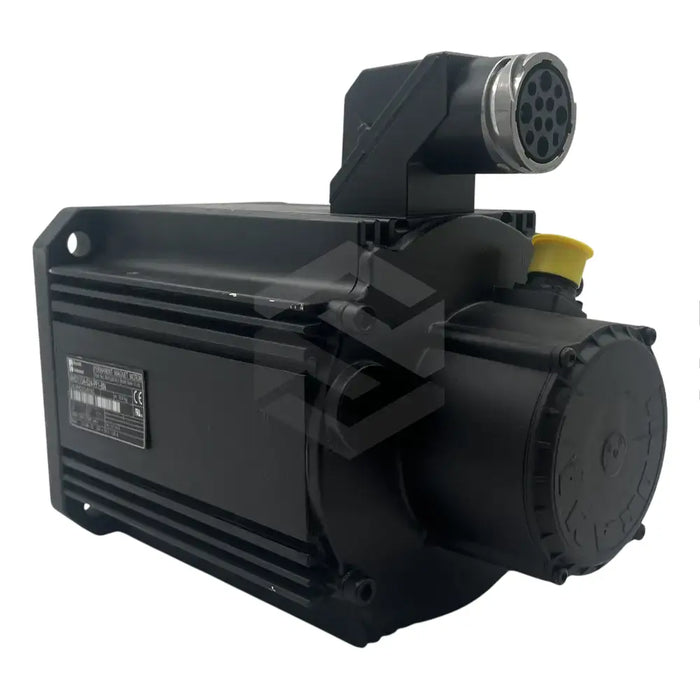

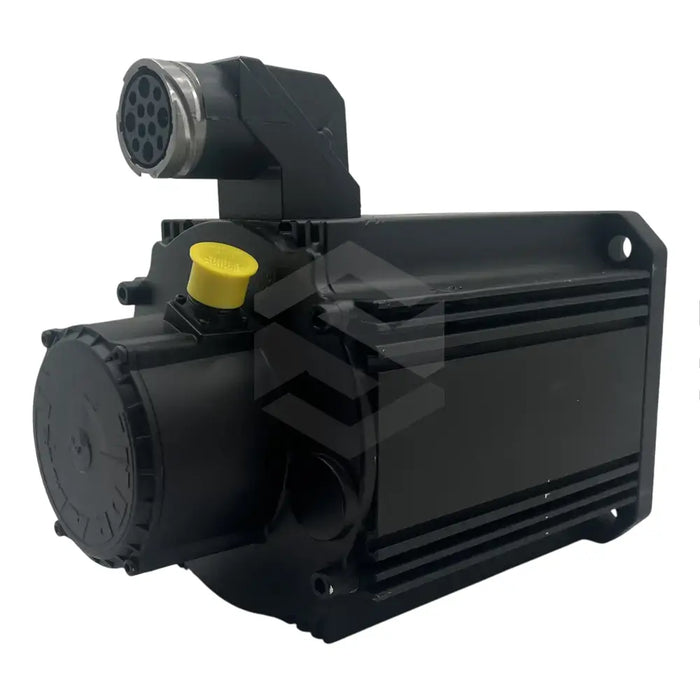

MHD115A-024-PP1-BN
The MHD115A-024-PP1-BN is a high-quality synchronous motor manufactured by Bosch Rexroth Indramat, it utilizes a multiturn absolute encoder for precise speed and fidelity. It's endowed with a maximum torque of 110 Nm and a peak current utilization of 98 A. The motor's specifications include a moment of inertia of 65.0 x 10-4 kgm2, a voltage constant of 150 V/1000min-1, and a winding resistance of 0.66 ohms. It efficiently keeps cool through convective heat transfer and liquid cooling, and provides a holding brake of 3.8 kg, with a holding torque of 70 Nm. This motor operates optimally between 0 and +40 degrees Celsius and under 1000 meters above sea level, provided it is shielded from environmental conditions beyond its IP65 protection degree and F insulation class. The MHD115A-024-PP1-BN can achieve a peak rotational speed of 4000 RPM, and showcases a rated torque of 14.9 Nm under natural cooling. During liquid cooling, the model demonstrates a performance rating of 13.8 kW and a current usage of 25.2 A. It weighs 30 kg and includes a keyed output shaft with a sealing ring.
