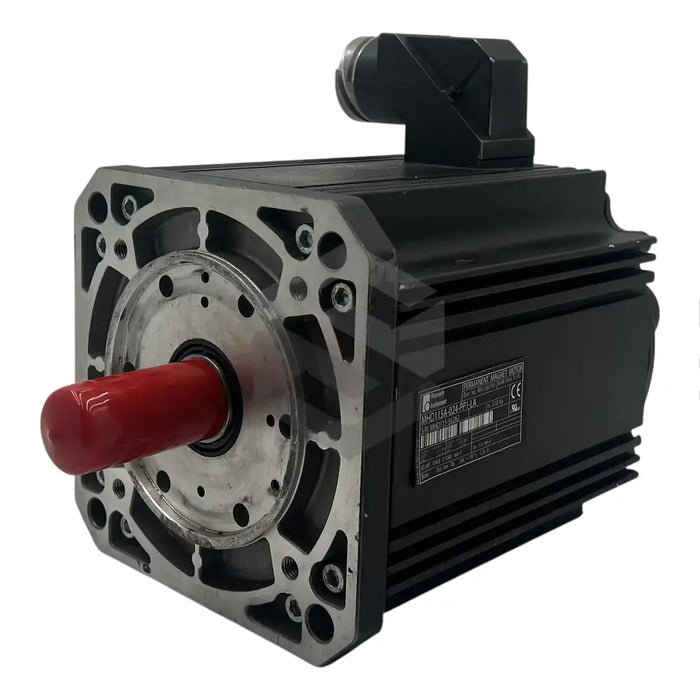

C image of MHD115A-024-PP1-LA | Main (Front Left)

MHD115A-024-PP1-LA

by Bosch Rexroth Indramat
$11,638.50 - $11,638.50
$11,638.50
$11,638.50 - $11,638.50
$11,638.50

In Stock, Ships 1 - 3 Days

The MHD115A-024-PP1-LA, produced by industry leader Bosch Rexroth Indramat, is a synchronous motor specializing in industrial automation. It boasts an output shaft with keys and a sealing ring, offering a holding brake that utilizes a rated current of 1.29A and voltage of 24V. The brake features a holding torque of 70 Nm and weight of 3.8 kg. Notably, this motor model is able to produce 18 Nm of torque during surface cooling and 12.1 Nm with natural cooling, when operating at voltages of 338 and 320 volts and frequencies of 133Hz. The motor's key specifications include four polar pairs, winding inductivity of 8.6 mH, resistivity of 0.66 ohms, and a power connector located on the housing's left. Providing both natural and surface cooling, this motor has a weight of 30 kg and is encased in a specially designed housing. Its advanced design allows for a maximum torque of 110 Nm and a peak current of 98 A. Its many features also include a thermal time constant of 60 minutes during natural cooling at 60K, a rated performance of 3.8 kW, and a rated speed of 2000 revolutions per minute. This IP65 certified model is equipped with a multiturn absolute digital encoder.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Motor

Model

MHD115A-024-PP1-LA

Output Shaft

With keys and a sealing ring

Holding Brake Rated Current

1.29 A

Holding Brake Rated Voltage

24 V

Holding Brake Holding Torque

70 Nm

Holding Brake Weight

3.8 kilograms

Motor Placement Design

IM V3

Surface Cooling Motor Torque

18 Nm

Natural Cooling Motor Torque

12.1 Nm

Number of Pole Pairs

4

Winding Inductivity

8.6 mH

Winding Resistivity

0.66 ohms

Voltage Constant at 20 Degrees Celsius

150 V/1000min-1

Torque Constant at 20 Degrees Celsius

1.65 Nm/A

Power Connector Placement

Left side of housing

Weight

30 kilograms

Housing Feature

Enables natural and surface cooling

Peak Torque

110 Nm

Peak Current Consumption

98 A

Thermal Time Constant (Natural Cooling at 60K)

60 minutes

Rated Performance

3.8 kW

Rated Speed

2000 revolutions per minute

Current Consumption

7.1 A

Certification

IP65

Encoder Type

Multiturn absolute digital encoder.
