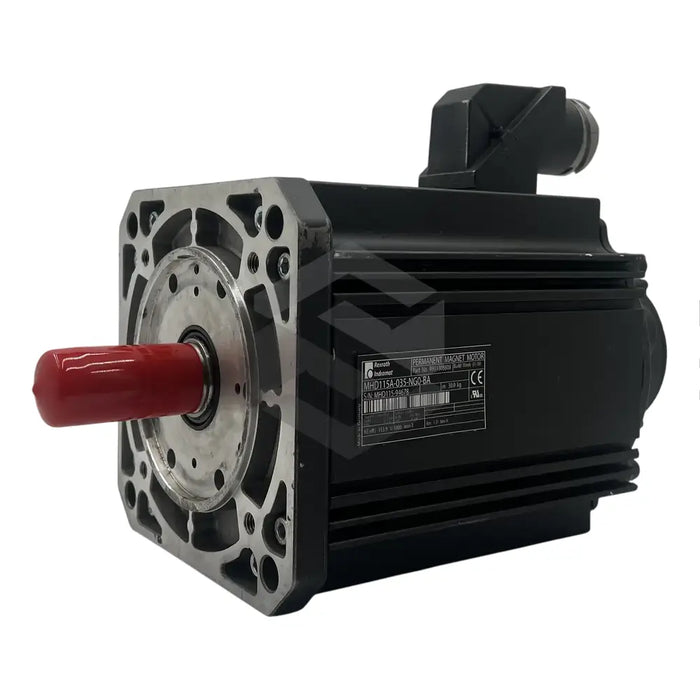

C image of MHD115A-035-NG0-BA | Main (Front Left)

MHD115A-035-NG0-BA

by Bosch Rexroth Indramat
$24,774.12 - $24,774.12
$24,774.12
$24,774.12 - $24,774.12
$24,774.12

In Stock, Ships 1 - 3 Days

The MHD115A-035-NG0-BA is a synchronous motor product from the renowned Bosch Rexroth Indramat. Known for its technological supremacy, Bosch converges first-rate components like drive converters, inverters, frequency converters, drive controllers, and more into this model. The MHD115A model features a friction-locked shaft-hub connection and a plain output shaft. Furthermore, it may necessitate additional sensors and actuators for optimal motor control. With a thermal time constant between 30 to 60 minutes, the model's heat strategies vary. It promises a theoretical maximum torque of 110 Nm at 4500 revolutions per minute, and integrates a digital servo feedback encoder and a power connector on the enclosure's B side. With a weight of 30 kilograms, it can be installed up to 1000 MSL and functions effectively within 0 to +40 degrees Celsius. It generates a continuous torque of 36.5 Nm under natural cooling and 48 Nm under surface cooling, consuming 31.5 A and 40.4 A of continuous current respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD115A-035-NG0-BA

Shaft-hub Connection

Friction-locked

Output Shaft Type

Plain

Thermal Time Constant

30 to 60 minutes

Protective Coating

Black Paint

Revolution Per Minute

4500

Moment of Inertia

65.0 x 10-4 kgm2

Theoretical Maximum Torque

110 Nm

Motor Feedback

Digital Servo Feedback Encoder

Power Connector Position

On the B side of the enclosure

Weight

30 Kilos

Maximum Mounting Height

1000 MSL

Operating Temperature Range

0 to +40 degrees Celsius

Natural Cooling Continuous Torque

36.5 Nm

Natural Cooling Continuous Current

31.5 A

Surface Cooling Continuous Torque

48 Nm

Surface Cooling Continuous Current

40.4 A
