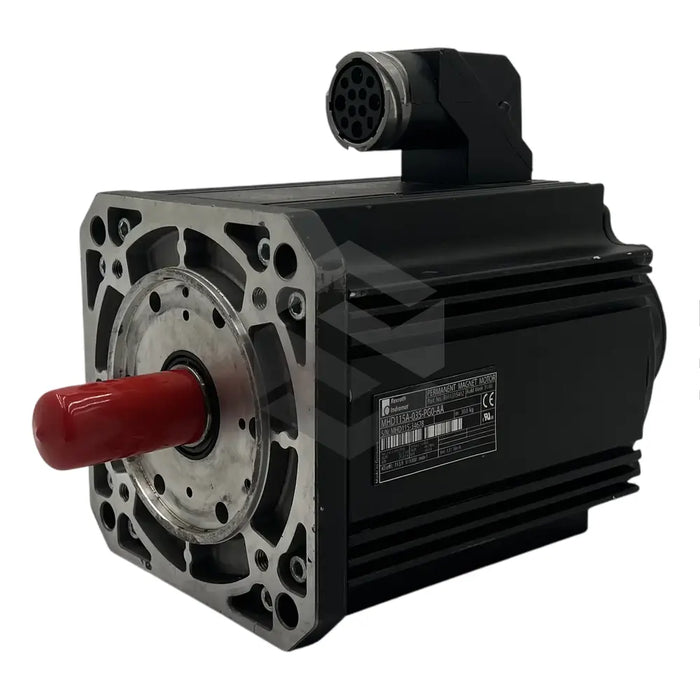

C image of MHD115A-035-PG0-AA | Main (Front Left)

MHD115A-035-PG0-AA

by Bosch Rexroth Indramat
$24,767.02 - $24,767.02
$24,767.02
$24,767.02 - $24,767.02
$24,767.02

In Stock, Ships 1 - 3 Days

Crafted by Bosch Rexroth Indramat, a leader in creating robust equipment like synchronous motors and controllers, the MHD115A-035-PG0-AA is an advanced and versatile model. Weighing 30 kilograms and designed to operate in temperatures up to +40 degrees, it boasts a robust build that allows it to be mounted within 1000 MSL. It employs natural and surface cooling methods to dissipate heat. At a natural cooling level of 60 K, it offers a rated speed of 2000 RPM, performance of 3.0 kW, and uses 345 V. It comes with a plain output shaft and a sealing ring to maintain consistent torque and to prevent lubricants from entering the shaft. Equipped with IP65 protection and F-class insulation, it's suitable for various environments and applications such as food processing and material handling. With its peak speed of 4500 RPM and torque of 100 Nm, this model combines power and performance, but installation and operation by a trained professional are recommended to ensure safety.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Motor

Model

MHD115A-035-PG0-AA

Weight

30 kilograms

Winding Inductivity

5.8 mH

Max Operating Temperature

+40 degrees

Max Altitude for Mounting

1000 MSL

Cooling Method

Natural and surface cooling

Rated Speed (Natural cooling at 60 K)

2000 RPM

Rated Performance (Natural cooling at 60 K)

3.0 kW

Voltage Use (Natural cooling at 60 K)

345 V

Output Shaft

Plain

Sealing Ring

Present

Winding Resistance at 20°C

0.46 ohm

Power Connector Position

A-side of the housing

Polar Pairs at 20°C

4

Torque Constant at 20°C

1.31 Nm/A

Voltage Constant at 20°C

113.9 V/1000min-1

Protection Grade

IP65

Insulation Class

F

Max Speed

4500 revolutions per minute

Max Torque

100 Nm

Supply Availability

In stock at Servo Supplier
