MHD115A-035-PG0-BA

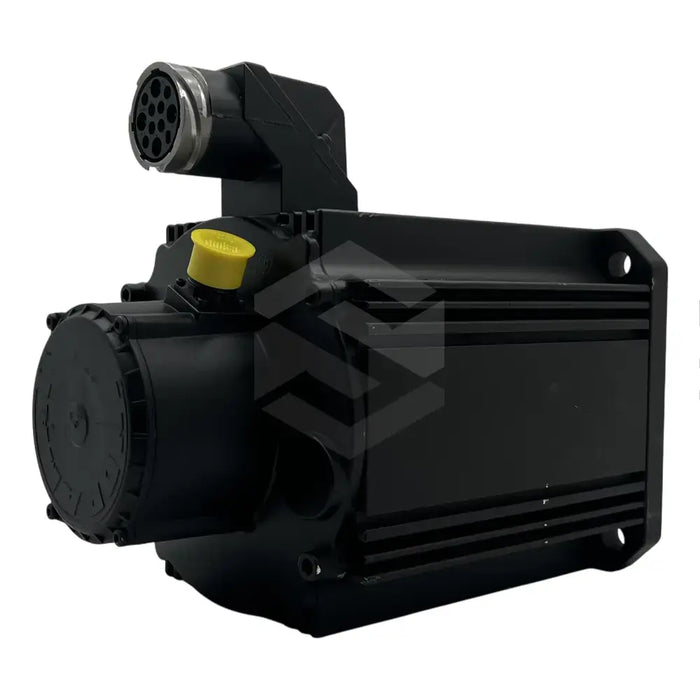

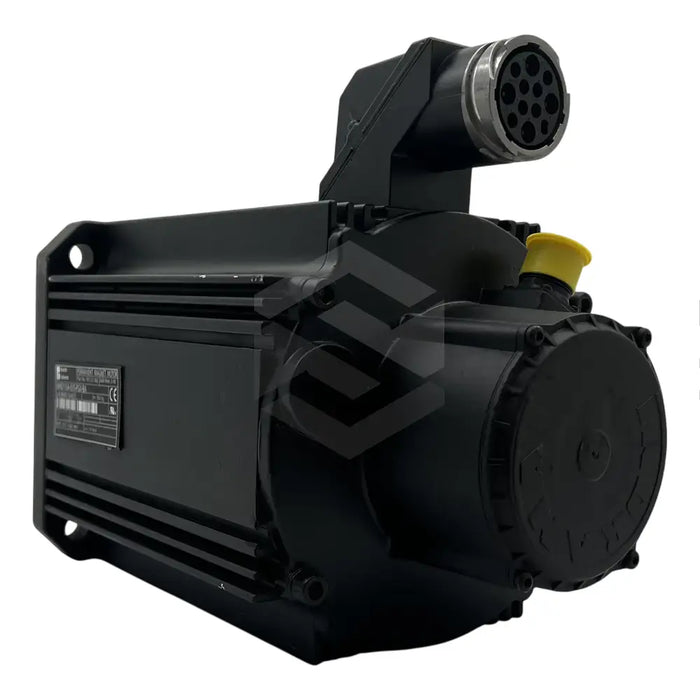

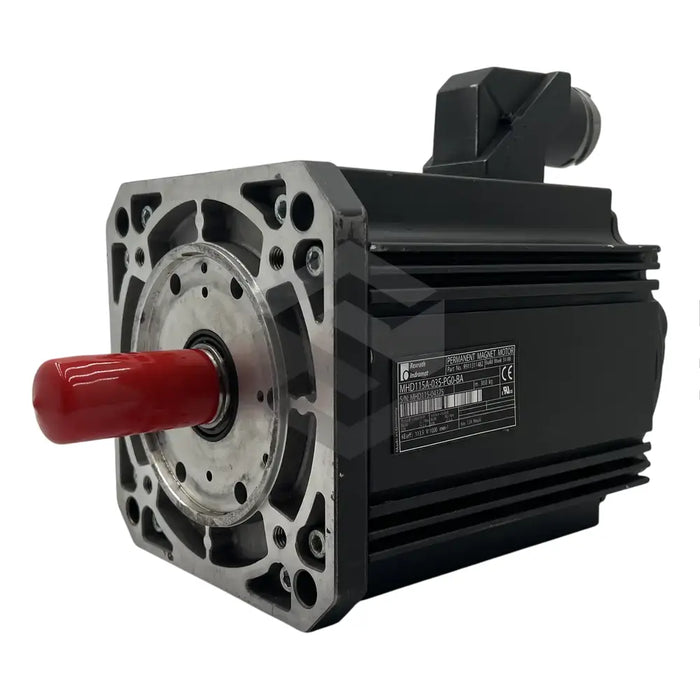

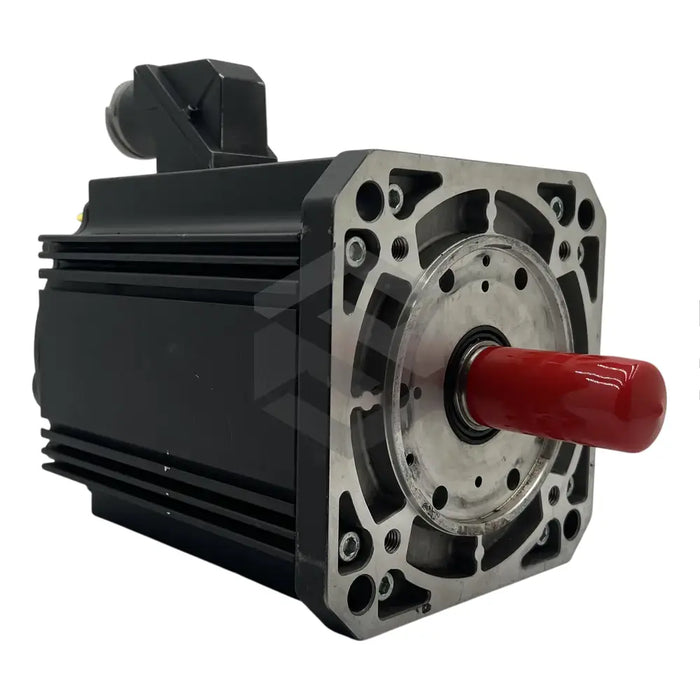

The MHD115A-035-PG0-BA is a top-quality, synchronous motor produced by Bosch Rexroth Indramat, known for manufacturing industrial parts such as servo and spindle motors, drive controllers, inverter modules, and more. With natural cooling at 60 K, this model offers 8.5 of rated torque, rotating at 3000 RPM on a voltage of 345 volts. It provides a thermal time constant of 60 minutes during natural cooling at 100 K, delivering continuous torque of 36.5 Nm at a current consumption of 31.5 A. The motor operates optimally at temperatures between 0 and +40 degrees Celsius, and within 1000 meters of sea level. Equipped with a multiturn absolute digital encoder for positioning, a power connector on the A-side, and a plain shaft with a seal ring, this model stands out. Surface-cooled at 60/100 K temperature, the unit delivers 12.6 kW of power and 34.8 Nm of torque at 3000 RPM, with a moment of inertia of 65.0 x 10-4 kgm2. It affords the maximum speed of 4500 RPM. Its class-F insulation, IP65 protection certification, and extra black coating facilitate operation in harsh environments.
