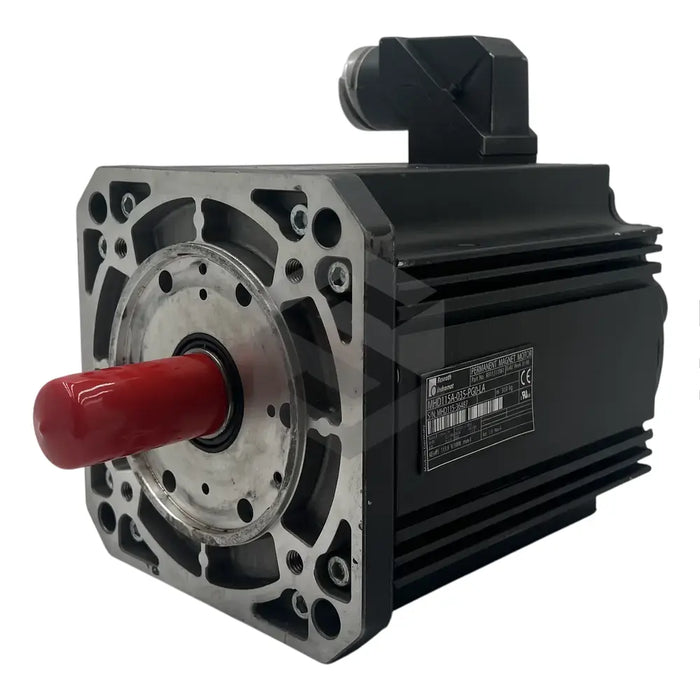

C image of MHD115A-035-PG0-LA | Main (Front Left)

MHD115A-035-PG0-LA

by Bosch Rexroth Indramat
$24,774.12 - $24,774.12
$24,774.12
$24,774.12 - $24,774.12
$24,774.12

In Stock, Ships 1 - 3 Days

The MHD115A-035-PG0-LA, a product of Bosch Rexroth Indramat, is a high-efficiency synchronous motor known for its robustness and performance. This advanced model features an unadorned output shaft, class F insulation materials for heat resistance, and a power connector located on the A-side. Its black-coated housing and IP65 protection make it suitable for demanding conditions. Generating 12.6 kW of power at a speed of 3000 RPM, it uses 20.7 A and 381 volts of current and voltage respectively under surface cooling. The MHD115A-035-PG0-LA, weighing 30 kg, comes with a winding resistance of 0.46 ohms, torque constant of 1.31 Nm/A and winding inductivity of 5.8mH at 20 degrees Celsius. It features four polar pairs and an absolute multiturn digital encoder system. Within 0 to +40 degrees Celsius and up to 1000 meters above sea level, it delivers a maximum theoretical torque of 110 Nm, with a peak current consumption of 121 A, reaching rotational speeds up to 4500 RPM.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Motor

Model

MHD115A-035-PG0-LA

Output Shaft

Plain

Protection Level

IP65

Insulating Material

F Class

Housing

Black-Coated

Connector Position

A-side

Rated Power

12.6 kW

Rated Speed

3000 rpm

Rated Current

20.7 A

Rated Voltage

381 volts

Cooling Type

Surface Cooling

Operational Temperature

60/100 K

Weight

30 kilograms

Winding Resistance

0.46 ohms

Torque Constant

1.31 Nm/A at 20 degrees Celsius

Winding Inductivity

5.8 mH

Rotors moment of Inertia

65.0 x 10-4 kgm2

Polar Pairs

Four

Rotor Encoders

Absolute Multiturn Digital Encoder System

Rated Frequency

200 Hz

Operational Temperature Range

0 to +40 degrees Celsius

Maximum Operational Altitude

1000 meters above sea level

Max Torque Generation

110 Nm

Max Current Consumption

121 A

Max Rotation Speed

4500 RPM.
