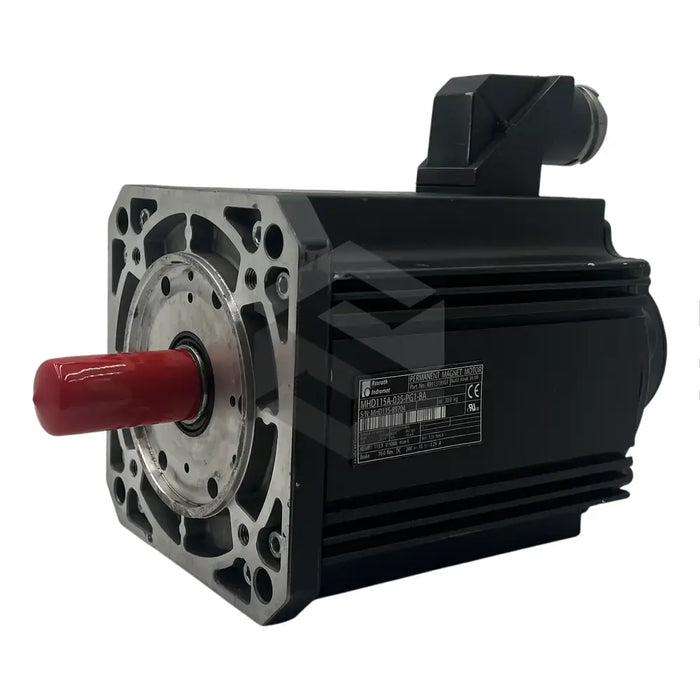

C image of MHD115A-035-PG1-BA | Main (Front Left)

MHD115A-035-PG1-BA

by Bosch Rexroth Indramat
$24,767.02 - $24,767.02
$24,767.02
$24,767.02 - $24,767.02
$24,767.02

In Stock, Ships 1 - 3 Days

The MHD115A-035-PG1-BA is a synchronous motor produced by Bosch Rexroth Indramat. With a 115 size code, this device includes standard electrical connections and a sealing air connector available through a flange socket modification. It incorporates premade encoder and power cable sets for ease of connection and can be installed in any orientation. Its durability is evident in its IP 65 protection rating, shielding the housing, output shaft and connectors. The design includes a plain shaft with a sealing ring and is balanced with a full feather key. Its brakes are capable of holding the axle even when de-energized and its encoder electronics includes a data memory for efficient startups. It should, however, be used in a shock-decoupled or shock-absorbed way to ensure the unit can carry loads, and thermal and environmental factors need to be considered for optimal performance. The device is safely shipped via trusted freight carriers.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD Model

MHD115A-035-PG1-BA

Fitting Option

Sealing air connectors

Electric Connection

Standardized

Size Code

115

Power Connection

Flange sockets with a bayonet catch or screwed connection

Accessory Option

Readymade encoder and power cable sets

Operating Conditions

Utilization factors for setup elevation and ambient operating temperature

Load Capacity

Only if attached to the machine in a shock-decoupled or shock-absorbed way

Protection Degree

IP 65 for housing, output shaft, feedback, and power connectors

Protection Standard

DIN VDE 0470, Part 1

Maximum Pressure Rating

0.3 bar

Design

B05

Installation Orientation

Any

Housing Varnish Thickness

Max 40 µm

Application Restriction

No shock loads related applications if fitted with blowers

Brake Function

Holds axle when de-energized

Shaft Type

Plain shaft with shaft sealing ring

Balancing

Complete feather key

Operational Forces

Experiences radial and axial forces on shaft and bearings

Maximum Axial Force

Directly proportional to radial force

Encoder Electronics

Has a data memory for quick and easy startup

Shipping

Through reputed freight carriers.
