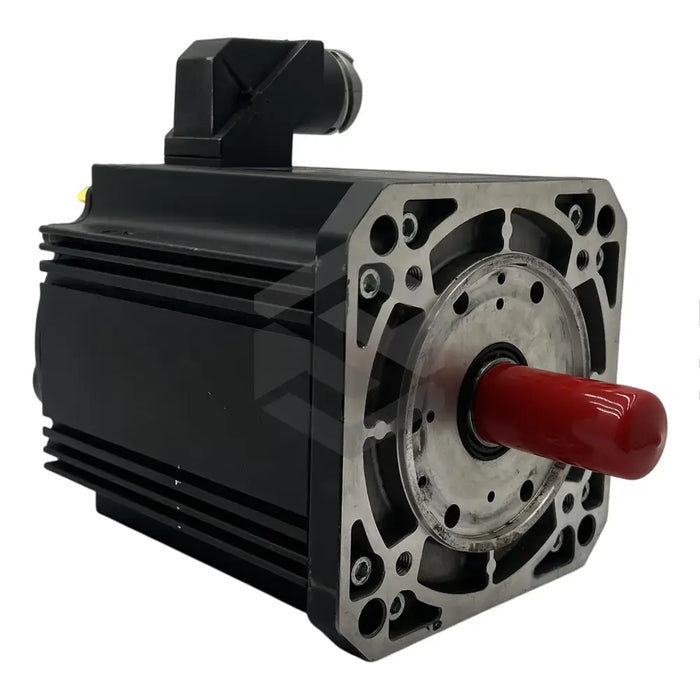

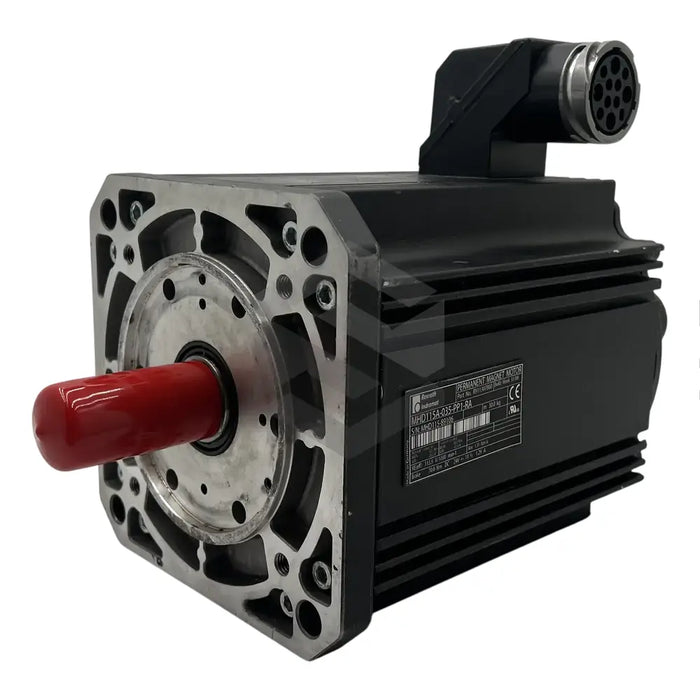

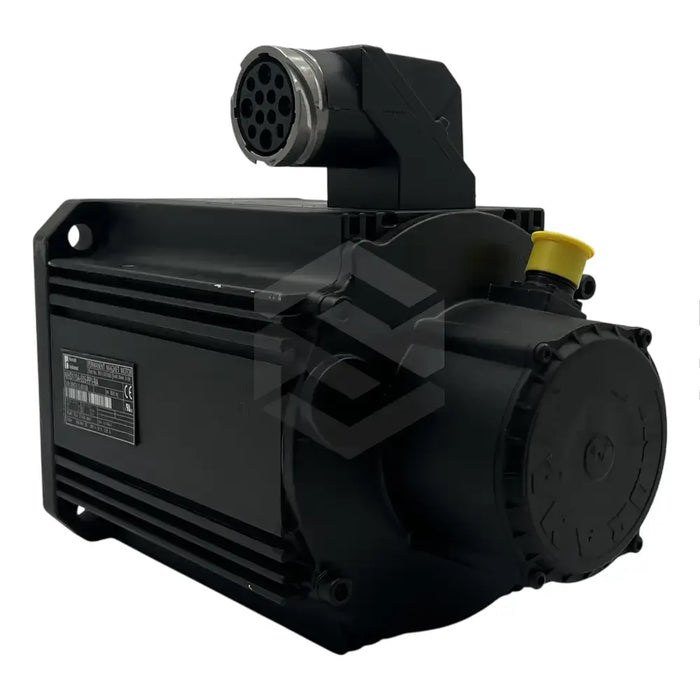

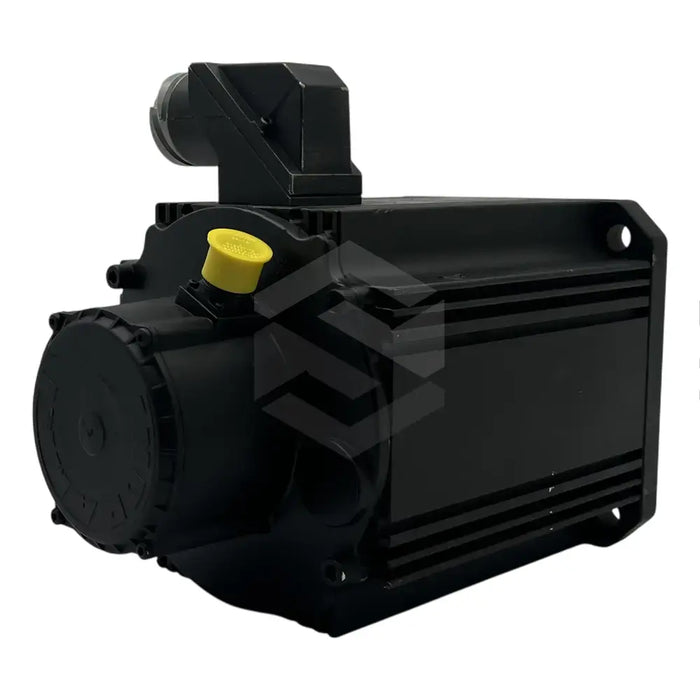

C image of MHD115A-035-PP1-RA | Main (Front Left)

MHD115A-035-PP1-RA

by Bosch Rexroth Indramat
$17,690.73 - $17,690.73
$17,690.73
$17,690.73 - $17,690.73
$17,690.73

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD115A-035-PP1-RA is a synchronous motor with a built-in multiturn absolute encoder for digital servo feedback. Operable under harsh environmental conditions due to its closed design, the motor requires correct alignment and mounting before use. It maintains a continuous torque of 32Nm and a current of 26.9A at a standstill when using natural convection cooling. Regular cleaning is essential to prevent operational issues caused by dust or shavings. The motor's bearings are rated for 30,000 operating hours per ISO 281. The device employs a DIN 6885-1 standard keyway shaft, with a winding inductivity of 5.8mH. Servicing the bearings should only be performed by authorized personnel. Used in handling and automation systems, the motor has standard power and encoder connectors. It should avoid extreme temperature fluctuations and improper connections that may cause high electrical voltage. The model's installation is recommended at altitudes below 1,000m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD115A-035-PP1-RA Features

Integrated multiturn absolute encoder, Digital servo feedback

Mounting Instructions

Must be aligned and mounted correctly before startup

Continuous Torque

32Nm

Continuous Current

26.9A

Operating Conditions

Standstill mode at 60K, Natural convection cooling mode

Maintenance

Periodically checked for cleanliness, Kept free of excessive shavings, dust or dirt

Bearings

Service life of 30,000 operating hours (ISO 281 specifications), Serviced only by authorized personnel

Environmental Conditions

Can operate under extremely adverse conditions

Grounding Conductor

Must be permanently connected

Shaft Design

Keyway shaft (DIN 6885-1 specifications)

Winding Inductivity

5.8mH

Holding Brake

No grinding required during normal operation

Applications

Handled and automation systems

Electric Connections

Power connector, Feedback connector for encoder connection

Operating Restrictions

Not operable under extreme temperature variations

Bearing

Designed to withstand high radial loads

Rated Frequency

200Hz

Installation Height

1,000m over sea level

Cabling Mechanism

Incorporates an easy cabling mechanism
