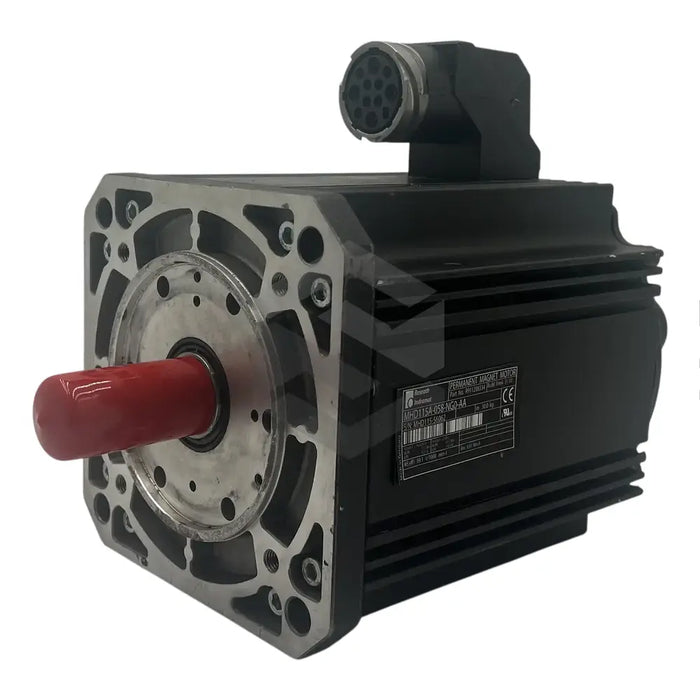

C image of MHD115A-058-NG0-AA | Main (Front Left)

MHD115A-058-NG0-AA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

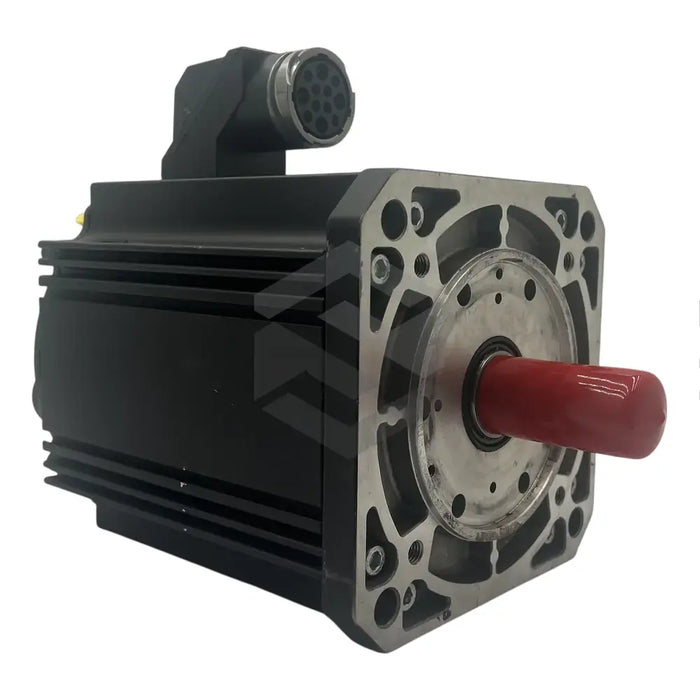

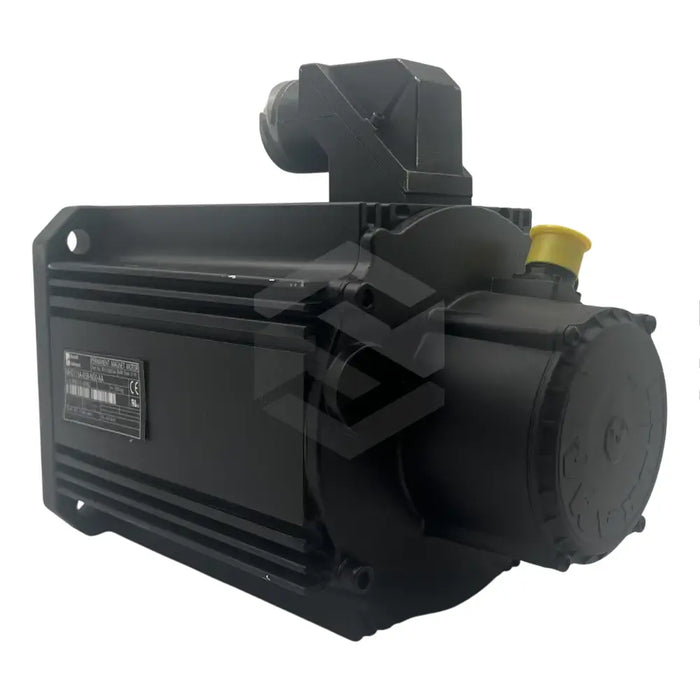

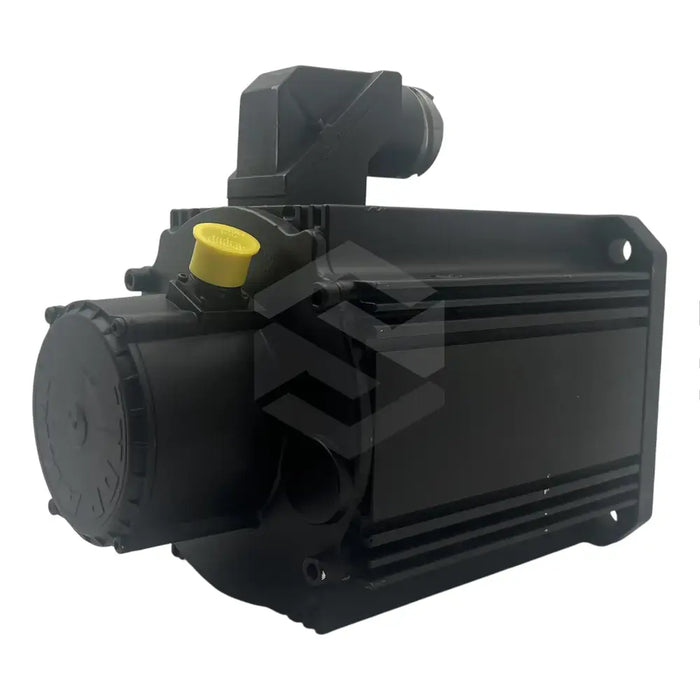

The MHD115A-058-NG0-AA is a synchronous motor created by Bosch Rexroth Indramat. Its high-quality design includes a 058 winding code and an ambient operational temperature ranging from 0°C to 40°C. The motor is easily integrated into machinery due to its intuitive flange design, offering a smooth and rapid startup. Weighing 30kg, the motor features overload protection, courtesy of its temperature monitoring capabilities. Its RAL 9005 prime black coat contributes to its acid and weathering resistance. When installed vertically, its output shaft should be fluid-free. This model allows for superior heat dissipation from its stator windings, and comes with a stable power connector directed to the A-side. Featuring a notable torque across a wide speed range and high overload capability, this motor ensures smooth operation and high dynamics. It should be stored in a dust and vibration-free environment. It comes with a one year of backup support and worldwide delivery options.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD115A-058-NG0-AA

Synchronous motor

Winding code

058

Operational Ambient Temperature

0°C to 40°C

Design

Flange design for easy attachment

Startup

Simple and quick startup process

Mass

30kg

Protection

Overload protection due to temperature monitoring functionality

Coating

RAL 9005 prime black coat, resistant to dilute acids and lyes, chalking, coloring and weathering

Installation

Should not have fluid accumulation on its output shaft for vertical installation with shaft facing upwards

Thermal Time Constant

60 minutes with natural convection cooling

Power Connector

Directed to A-side

Shaft

Plain shaft with friction-locked shaft-hub connection, excellent running smoothness, without play. Not suitable for intense reversing operation

Peak Torque

Usable over a wide speed range

Torque to Inertia Mass Ratio

Favorable

Heat Dissipation

Favorable, from stator windings to external wall

AC Motor Characteristic

High overload capability and high dynamics

Theoretical Maximum Torque

110Nm

Rotor Moment of Inertia

65 x 10-4 kgm2

Storage

Dry place free of dust and vibrations. must not remove plastic protective sleeve on its shaft

Coupling

Designed to be coupled with the machine elements, by using only clamping elements.
