MHD115A-058-NG0-AN

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

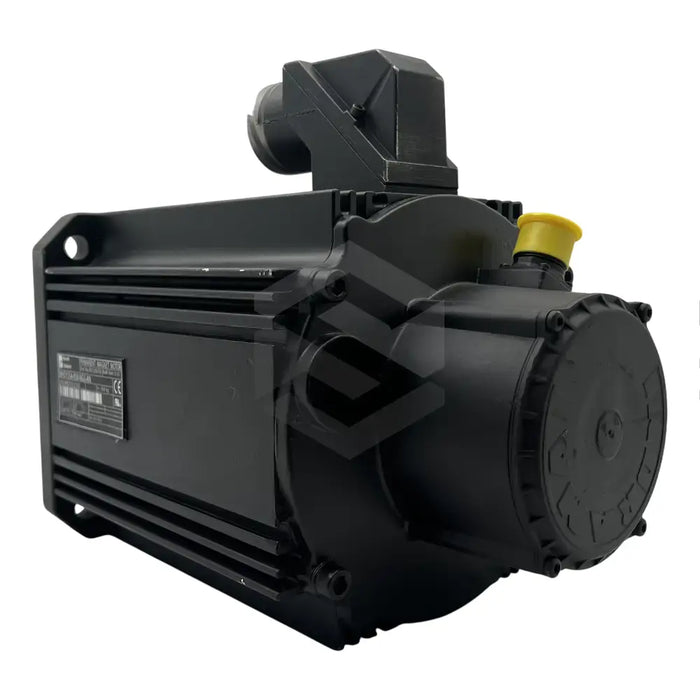

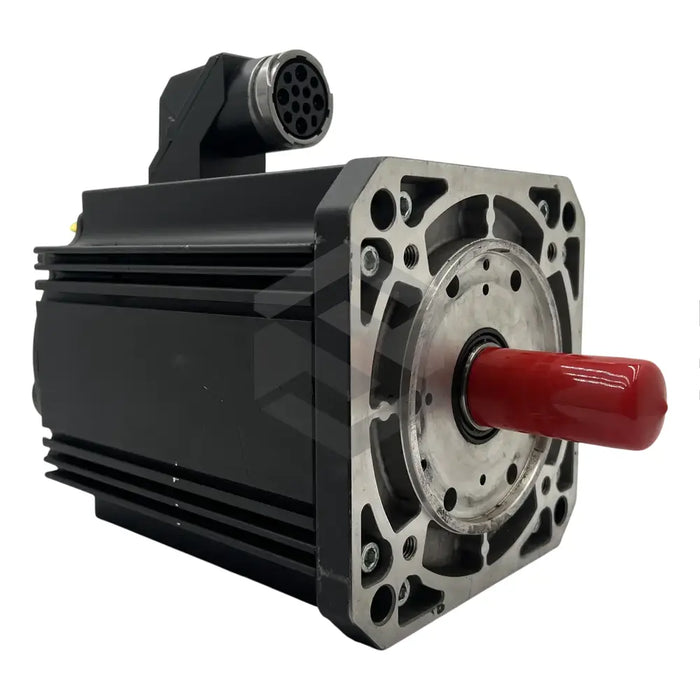

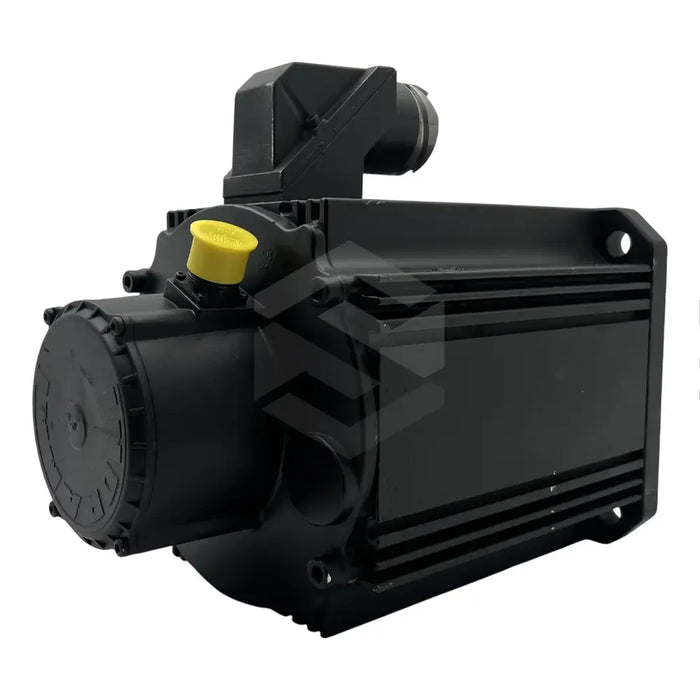

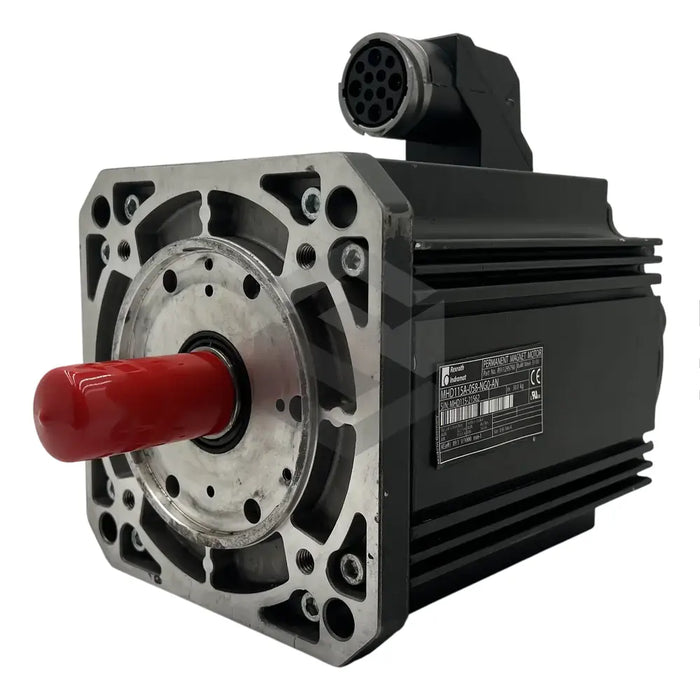

The MHD115A-058-NG0-AN synchronous motor, developed by Bosch Rexroth Indramat, is designed for both natural convection and liquid cooling methods. The motor operates optimally between 0-40 degrees Celsius and at altitudes up to 3300 feet. The MHD series is primarily used in machine tooling, automation, handling, and food industry machines and boasts features such as overload capacity and protection. The motor's shaft is smooth with a seal but can be customized with a key if necessary. With a flange size and centering diameter of 192mm and 180mm respectively, this motor uses a digital encoder for servo-feedback. Supplied without a holding brake, the motor obtains power from the drive controller and its default speed varies depending on cooling methods, ranging between 2000-3000 RPM. Weighing approximately 30 kilograms, the motor's housing provides IP65 level protection.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Series


MHD

Product Code


MHD115A-058-NG0-AN

Motor Type


Synchronous

Cooling Type


Natural Convection and Liquid

Operating Temperature


0 to 40 degrees Celsius

Operating Altitude


0 - 3300 feet

Application


Machine Tools, Automation, Handling, Food Machines

Maintenance


Maintenance-free

Overload Capabilities


Supported

Overload Protection


Included

Main Shaft


Smooth with Sealing

Flange Size


192 millimeters

Centering Diameter


180 millimeters

Servo Feedback


Digital

Holding Brake


Not Supplied

Power Source


Drive Controller

Characteristics Motor Speed


4000 RPM

Maximum Speed


6000 RPM

Rated Speed (60K overtemperature, natural convection)


2000 RPM

Rated Speed (100K overtemperature, natural convection)


3000 RPM

Rated Speed (Liquid Cooling)


3000 RPM

Weight


30 kilograms

Housing Protection Degree


IP65.
