MHD115A-058-NG0-BA

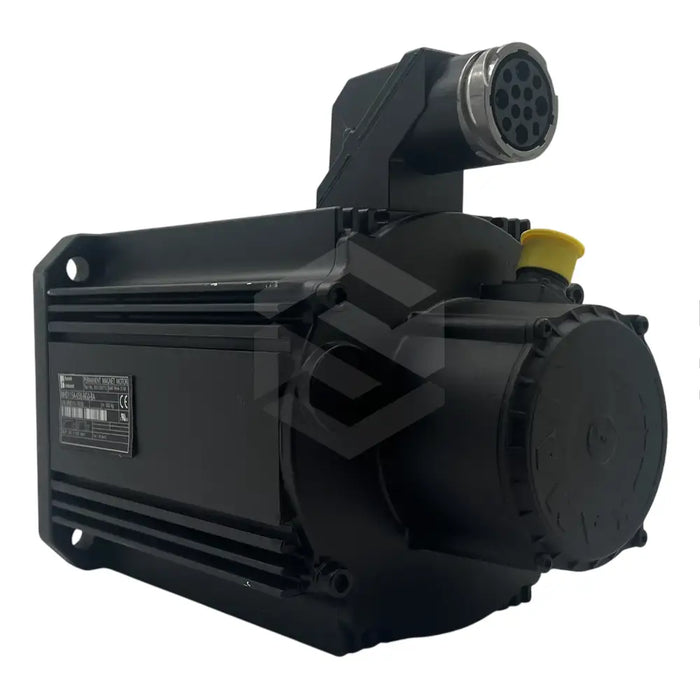

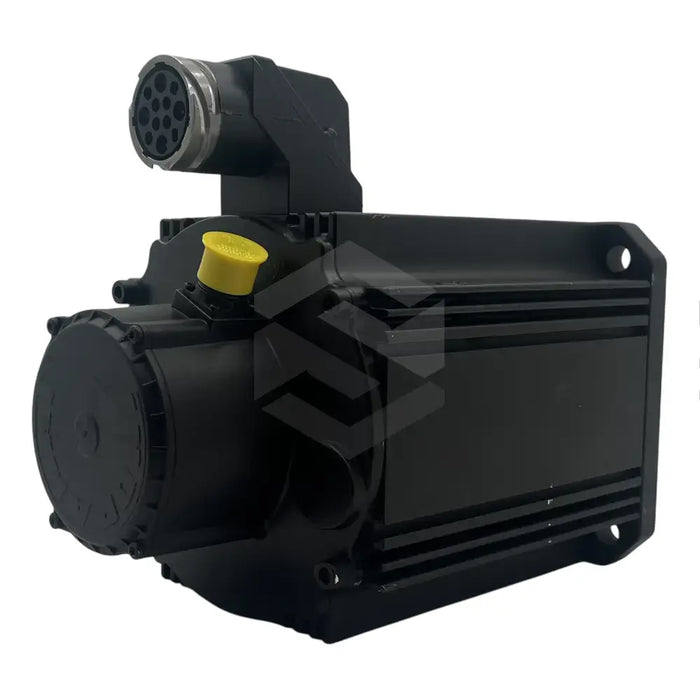

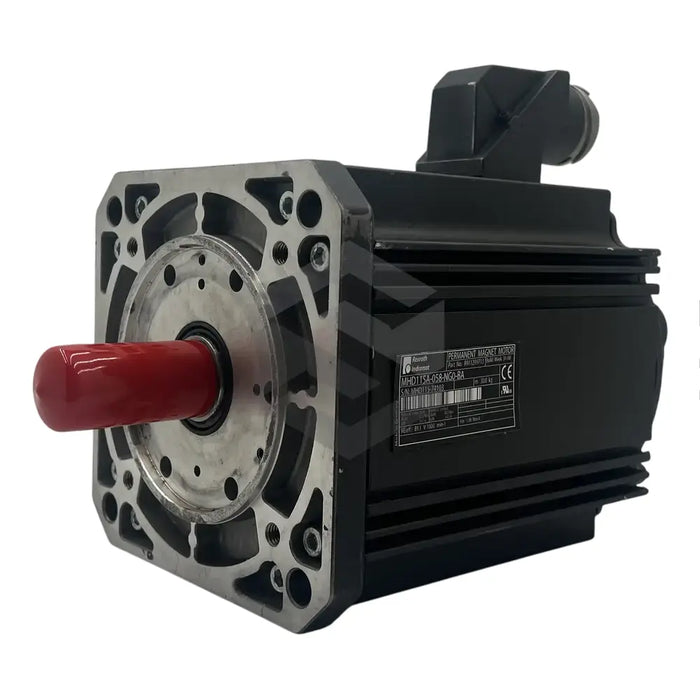

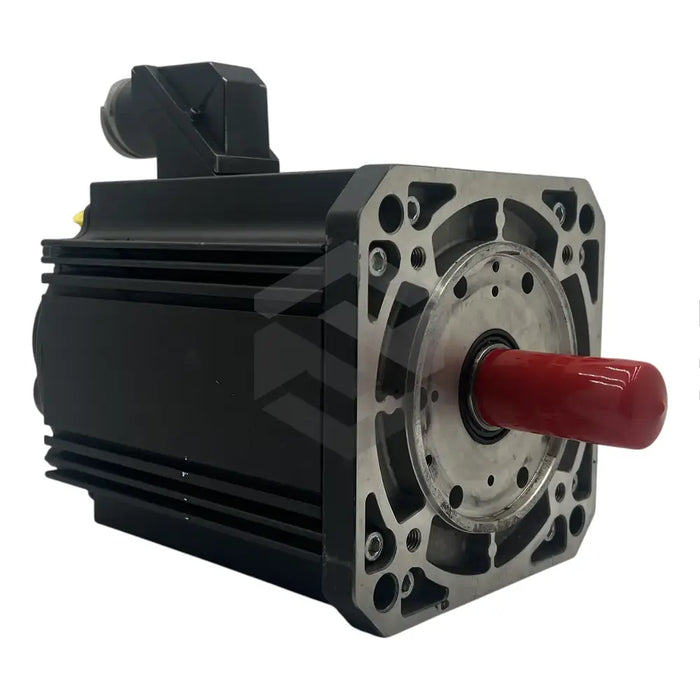

The MHD115A-058-NG0-BA, a servo motor produced by Bosch Rexroth Indramat, comprises of a stator with winding, rotor, motor encoder, shaft, and bearings. It boasts a sealing ring-fitted plain shaft and excludes a holding brake. The motor employs special magnets enabling low inertia construction and multiple cooling methodologies such as natural convection and surface cooling. It doesn't support liquid cooling. The power socket location is identified during order placement, however, for this particular motor, it's on side B. Performance metrics vary with the cooling method and operation conditions. Surface cooling allows a 3000 RPM speed, 27.8 Nm torque, 22.5 Amps current and 10.6-kilowatt power output. In contrast, natural convection generates a reduced speed, torque, current and power output. The motor features integrated digital servo feedback and an IP65 rated motor housing, painted matte black, with a 30kg shipping weight. The flange and centering diameters measure 192 mm and 180 mm respectively.
