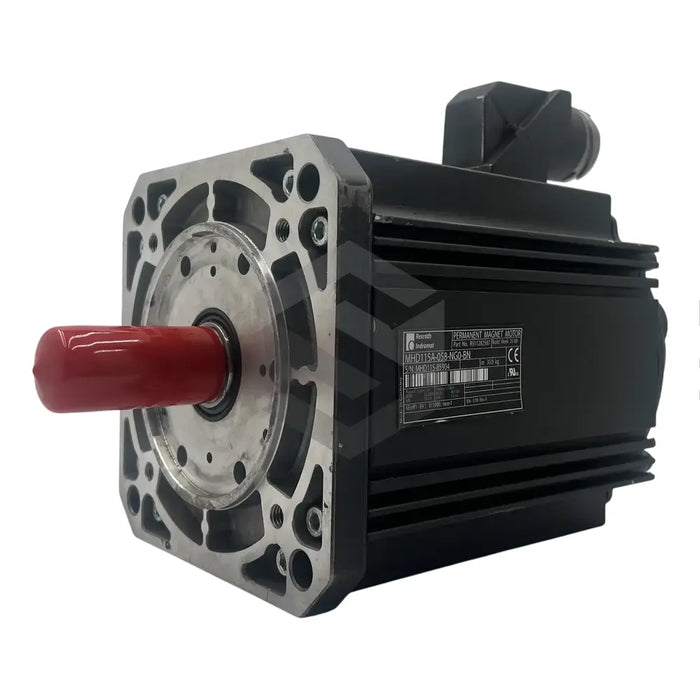

C image of MHD115A-058-NG0-BN | Main (Front Left)

MHD115A-058-NG0-BN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

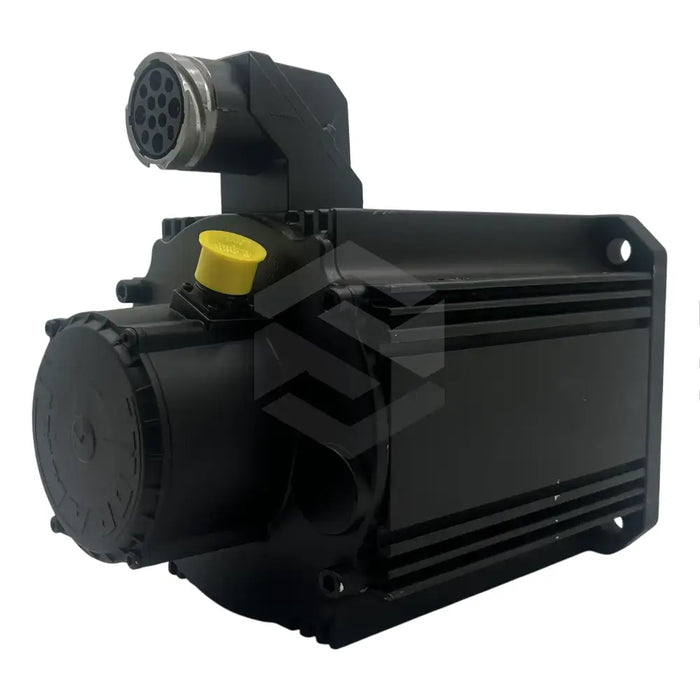

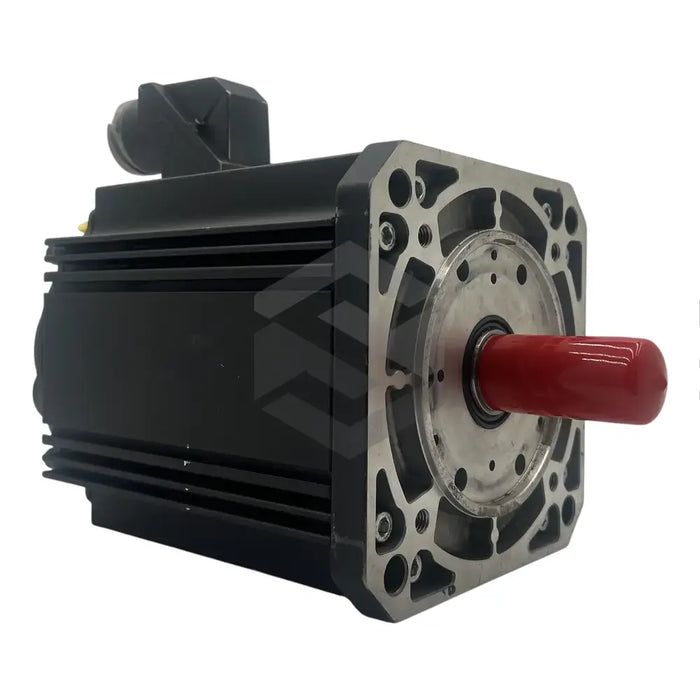

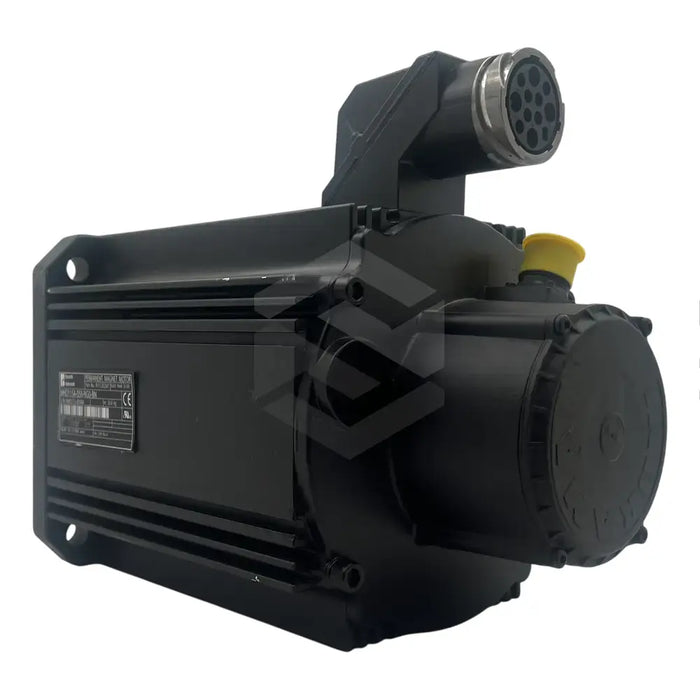

The MHD115A-058-NG0-BN is a synchronous servo motor produced by Bosch Rexroth. It's part of the MHD series and is applied in numerous industrial fields including machine tools, and paper, automation and packaging machines. The motor's frame size of 115 determines major dimensions like a centering diameter of 180mm and a flange size of 192mm. The type A frame length signifies that the motor's continuous standstill torque varies between 32 Nm and 60.8 Nm based on cooling methods. Similarly, the standstill current ranges from 36.6 Amps to 69.5 Amps, and the output power spans 1.8 kW to 17.5 kW, depending on the cooling method used - natural convection or liquid cooling. Key features include digital servo feedback, a plain shaft with a sealing ring, and a side B power connector. Its minimum cable cross section can vary between 6 mm2 and 10 mm2, depending on the cooling method. The motor achieves a maximum speed of 6000 RPM and has a DIN VDE 0530 Class F insulation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Servo Motor

Product Line

MHD

Model

MHD115A-058-NG0-BN

Industrial Applications

Machine tools, Paper machines, Automation and packaging machines

Motor Frame Size

115

Motor Frame Length

A

Centering Diameter

180 millimeters

Flange Size

192 millimeters

Continuous Torque at Standstill (60K overtemperature)

32 Nm

Continuous Torque at Standstill (100K overtemperature)

36.5 Nm

Continuous Torque at Standstill (liquid cooling)

60.8 Nm

Continuous Current at Standstill (60K overtemperature)

36.6 Amps

Continuous Current at Standstill (100K overtemperature)

42.1 Amps

Continuous Current at Standstill (liquid cooling)

69.5 Amps

Rated Motor Output (60K overtemperature)

1.8 kilowatts

Rated Motor Output (100K overtemperature)

4.6 kilowatts

Rated Motor Output (liquid cooling)

17.5 kilowatts

Features

Digital servo feedback, Plain shaft with sealing ring, Power connector on side B

Motor Time Constant (60/100K overtemperature)

60 minutes

Motor Time Constant (liquid cooling)

20 minutes

Electrical Power Cable Cross-section (60K overtemperature)

6 mm2

Electrical Power Cable Cross-section (liquid cooling)

10 mm2

Maximum Speed

6000 RPM

Motor Insulation Class

F according to DIN VDE 0530
