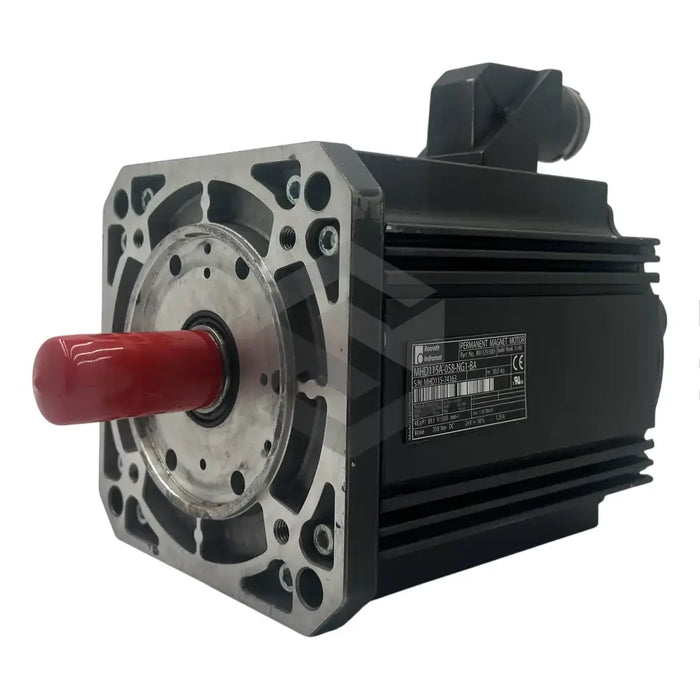

C image of MHD115A-058-NG1-BA | Main (Front Left)

MHD115A-058-NG1-BA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD115A-058-NG1-BA, made by Bosch Rexroth, is a high-torque motor from the renowned MHD series. Esteemed in industrial assembly lines for its ability to effectively handle real-time speed and position control, this model utilizes top-quality permanent magnets to offer vast torque output across all speeds. Key attributes include its consistent power output during speed changes and its ability to keep a uniform speed even when torque/load varies. This motor, with its robust build, is suitable for temperatures between 0°C to 40°C and conditions not exceeding 1000 meters above sea level. Designed to pair with drive controllers that feature an encoder, the MHD115A-058-NG1-BA delivers precise real-time control over the rotor's position. It exhibits a motor speed of 4000 rpm and can reach a maximum of 6000 rpm if needed. The motor is equipped with four pole pairs and has a maximum torque of 110Nm.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD115A-058-NG1-BA

Product Type

High Torque Motor

Series

MHD

Main Function

Support automation tasks in industrial assembly lines

Control Feature

Supports the speed and position control in real time

Permanent Magnet

Yes

Torque Output Consistency

Does not drop sharply when speed is increased

Magnetic Flux Compensation

Yes

Rotor Control

Supported by drive controllers equipped with an encoder

Characteristic Motor Speed

4000 rpm

Maximum Speed

6000 rpm

Pole Pairs

Four

Build Quality

Sturdy

Operating Conditions

Can be used in extreme weather conditions

Operating Temperature

0 °C - 40 °C

Elevation Suitability

Can be used in areas where elevation doesn't exceed 1000 meters above sea level

Theoretical Maximum Torque

110 Nm

Insulation Material

Class F
